Product Features:
1: Maximum payload of 10 kg with X-axis speed up to 150 m/min and acceleration of 3G; ideal for high-frequency, fast-cycle manufacturing.
2: Scientific structural design with all-steel frame, triple stress-relief treatment, and mass-produced components ensures long-term performance and precision.
3: Integrated with a 22” real-time monitoring screen and 10.1” touchscreen tablet for intuitive, intelligent operation.
4: Standard 4-axis coordinated motion with motion compensation function; repeat positioning accuracy of ±0.015 mm.

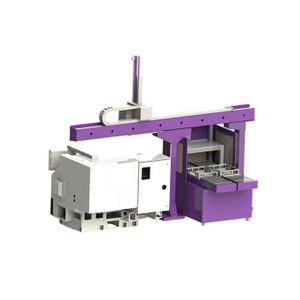

5: Supports modular functional upgrades including automatic loading/unloading, workpiece inspection, and cleaning; compatible with CNC lathes, machining centers, and grinders.

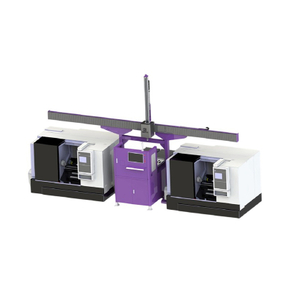

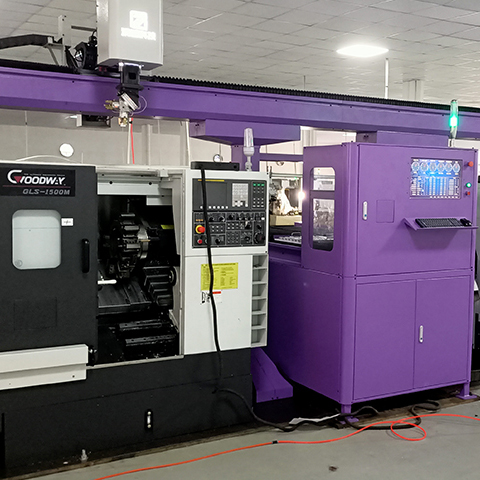

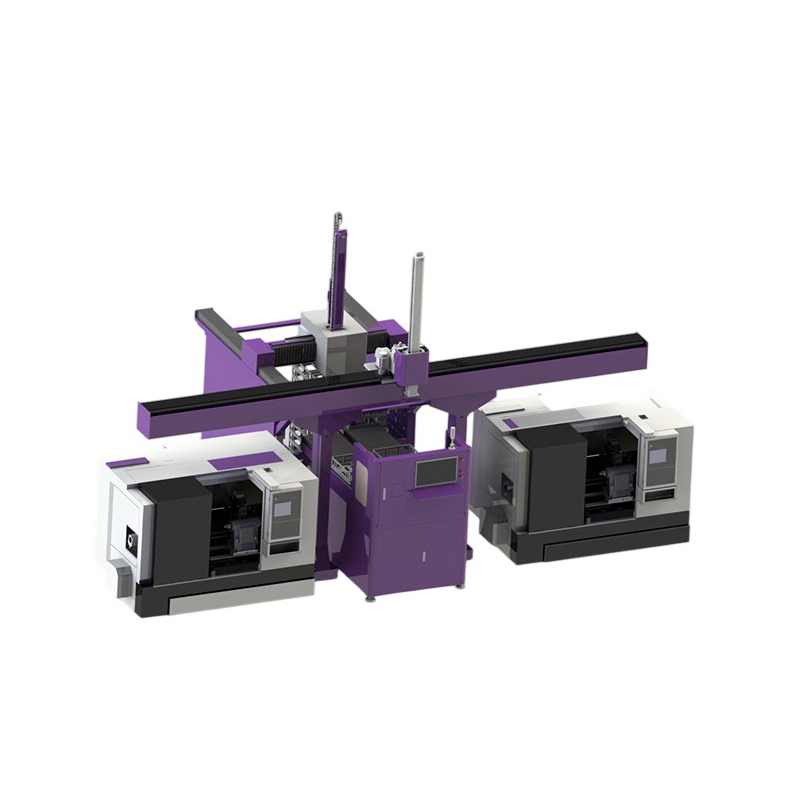

6: Standard configuration supports two CNC machines; scalable to more units depending on process needs and takt time.

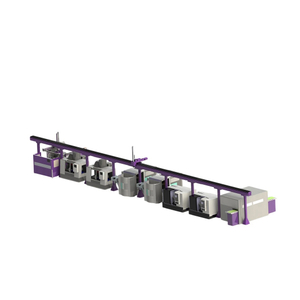

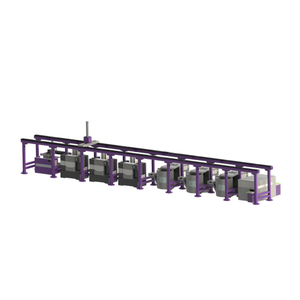

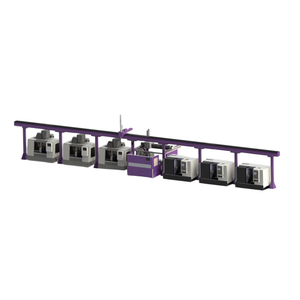

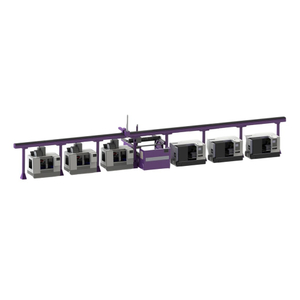

7: Multiple robotic arms can be deployed in parallel to meet high-speed takt time requirements across the entire production line.
Technical Parameter
| Category | Item | Parameter | Unit |
| Service Machine Type | Machine Types | Horizontal CNC lathe, Vertical CNC lathe, Multi-axis compound machine,
CNC grinding machine, Vertical machining center | / |
| Supported Machines | 2 | / |
| Robot Axis Number | Standard Axis Count | 3 axes | Axis |
| Optional Axis Count | 4/5/6 optional, up to 32 axes | Axis |
| Robot Load | Max Workpiece Weight | 12/20 | KG |
| Max End Load | 20/30 | KG |
| Travel | X-axis Travel | 5200/6300/6800 | mm |
| Y-axis Travel | 200/450（Puls Style） | mm |
| Z-axis Travel | 1300/1500/1800/2100 | mm |
| Robot Height | Machine Height | 1700/2000/2300/2600 | mm |
| Column Height | 2000/2200/2500/2800 | mm |
| Moving Speed | X-axis Speed | 120 | M/min |
| Y-axis Speed | 60 | M/min |
| Z-axis Speed | 60 | M/min |
| Accuracy | Repeat Positioning Accuracy | ±0.01 | mm |
| Auxiliary Equipment | Standard Auxiliary Equipment | Compound workstation, Flat plate conveyor | Set |
| Optional Auxiliary Equipment | Workpiece rotating station, Smart inspection station, Smart cleaning station,
Smart storage robot, Smart laser marking station | / |
