Product Features:
1: X-axis speed up to 90 m/min; repeat positioning accuracy of ±0.02 mm, combining speed and precision in demanding environments.
2: Supports payloads up to 120 kg, ideal for handling large and heavy workpieces in industrial machining scenarios.

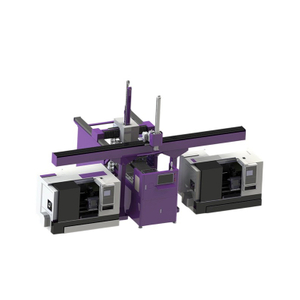

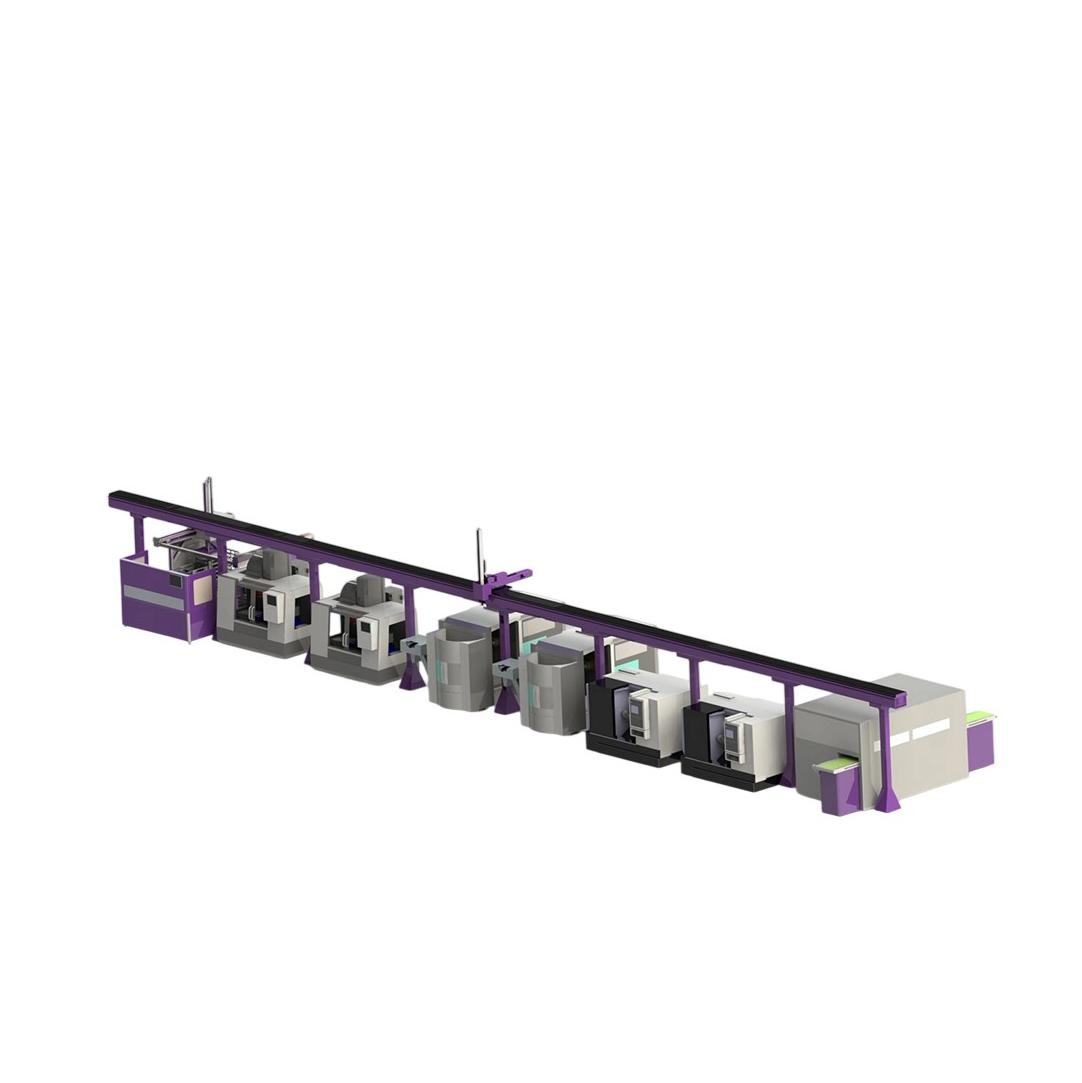

3: Fully compatible with CNC lathes, machining centers, and grinding machines; supports automation lines for up to 20 machines.
4: Modular integration of optional functions such as inspection, cleaning, and laser marking for complete process automation.
5: Equipped with a 22” dynamic monitoring screen and a 10.1” touchscreen tablet for visual and intelligent operation.
6: Rigid all-steel construction with triple stress-relief treatment ensures durability and long-term stability.
7: Supports multiple robotic arms operating simultaneously to meet production takt time and enhance overall throughput.
Technical Parameter
| Category | Item | Parameter | Unit |
| Service Machine Type | Machine Types | Horizontal CNC lathe, Vertical CNC lathe, Multi-axis compound machine,
CNC grinding machine, Vertical machining center, Gear machining machine | / |
| Max Supported Machines | Up to 20 | / |
| Robot Axis Number | Standard Axis Count | 3 axes | Axis |
| Optional Axis Count | 4/5/6/7 optional, up to 128 axes | Axis |
| Robot Load | Max Workpiece Weight | 15/80 KG | KG |
| Max End Load | 20/100 KG | KG |
| Travel | X-axis Travel | 3000/3700/4400/5100 mm | mm |
| Y-axis Travel | 200/450 mm (Plus type) | mm |
| Z-axis Travel | 1300/1500/1800/2100 mm | mm |
| Robot Height | Machine Height | 1700/2000/2200/2600/3100/3600 mm | mm |
| Column Height | 2000/2200/2500/2800/3300/3900 mm | mm |
| Moving Speed | X-axis Speed | 150/120 (20KG/100KG) M/min | M/min |
| Y-axis Speed | 60/40 (20KG/100KG) M/min | M/min |
| Z-axis Speed | 60/40 (20KG/100KG) M/min | M/min |
| Accuracy | Repeat Positioning Accuracy | ±0.015 mm | mm |
| Auxiliary Equipment | Standard Auxiliary Equipment | Compound workstation, Flat plate conveyor | Set |
| Optional Auxiliary Equipment | Workpiece rotating station, Smart inspection station, Smart cleaning station,
Smart storage robot, Smart laser marking station | / |
