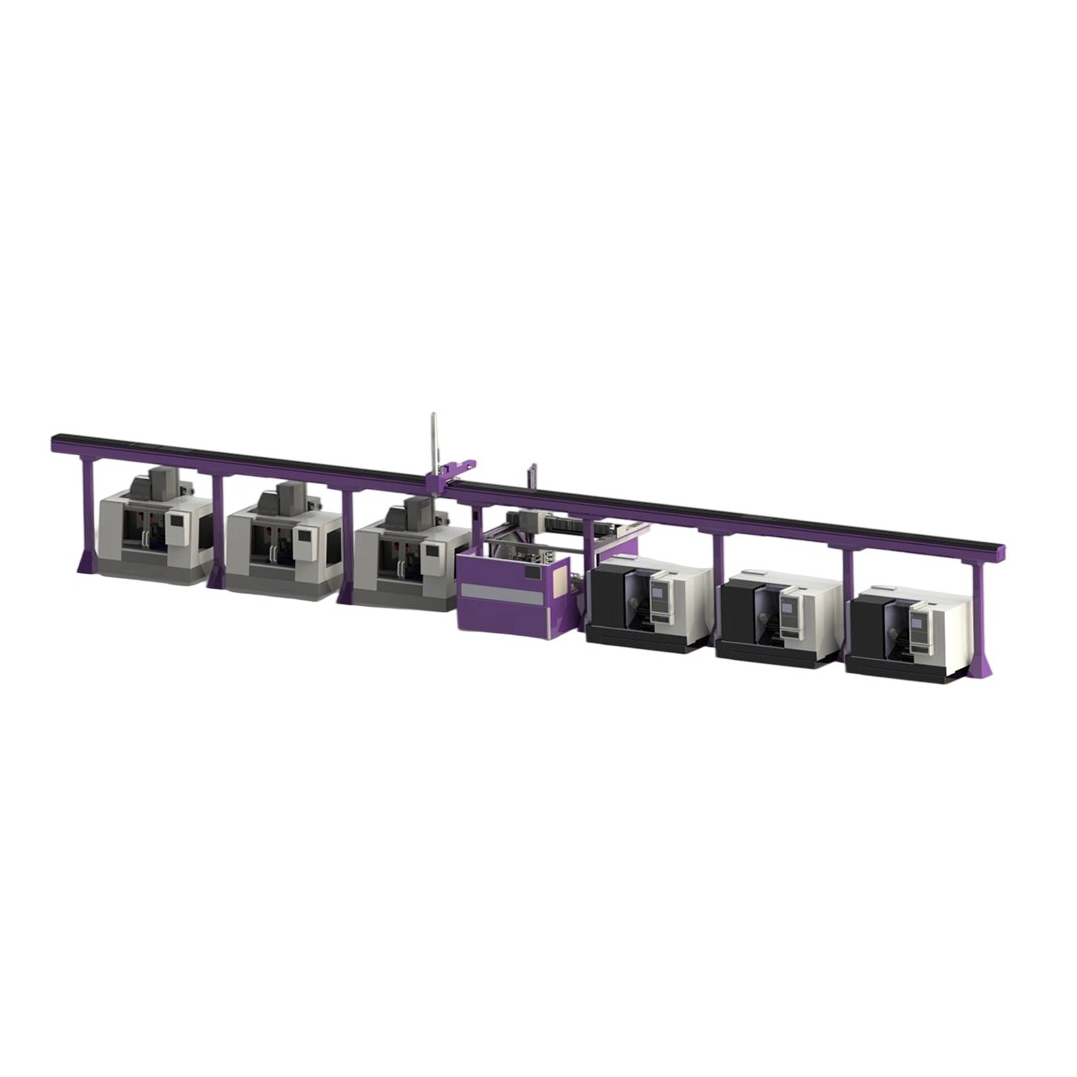

TZ-MG High-Speed Intelligent Gantry Robot Production Line
TZ-MG High-Speed Intelligent Gantry Robot Production Line TZ-MG High-Speed Intelligent Gantry Robot Production Line
TZ-MG High-Speed Intelligent Gantry Robot Production Line TZ-MG High-Speed Intelligent Gantry Robot Production Line

loading

TZ-MG High-Speed Intelligent Gantry Robot Production Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The TZ-MG series gantry robot production line is designed for high-speed, high-precision, and fully automated machining operations. Featuring advanced motion control, multi-station handling, and modular integration of functions like automatic loading/unloading, workpiece inspection, cleaning, and laser marking, the system supports up to 20 CNC machines and ensures efficient and flexible production for modern smart factories.
SKU:
Availability:
Quantity:
Inquire Add to Basket
Product Features:
1: High-speed and high-precision operation with X-axis speed up to 150 m/min and acceleration up to 3G; repeat positioning accuracy reaches 0.015 mm.
2: Maximum payload of 10 kg, supporting high-frequency, high-load part handling.
3: Compatible with CNC lathes, machining centers, and grinding machines; supports multi-machine configurations such as 1-to-2, 1-to-5, up to 1-to-20 setups.
4: Integrated system with 22” real-time monitoring screen and 10.1” tablet operation panel for intuitive control.
5: Modular design enables optional functions like workpiece inspection, cleaning, and laser marking.
6: Supports simultaneous operation of multiple robotic arms to meet different production takt time requirements.
7: Robust all-steel frame with triple stress-relief treatment ensures long-term precision and stability.


Technical Parameter

CategoryItemParameterUnit
Service Machine TypeMachine TypesHorizontal CNC lathe, Vertical CNC lathe, Multi-axis compound machine,
CNC grinding machine, Vertical machining center, Gear machining machine		/
Max Supported MachinesUp to 20/
Robot Axis NumberStandard Axis Count3 axesAxis
Optional Axis Count4/5/6/7 optional, up to 128 axesAxis
Robot LoadMax Workpiece Weight15/80 KGKG
Max End Load20/100 KGKG
TravelX-axis Travel3000/3700/4400/5100 mmmm
Y-axis Travel200/450 mm (Plus type)mm
Z-axis Travel1300/1500/1800/2100 mmmm
Robot HeightMachine Height1700/2000/2200/2600/3100/3600 mmmm
Column Height2000/2200/2500/2800/3300/3900 mmmm
Moving SpeedX-axis Speed150/120 (20KG/100KG) M/minM/min
Y-axis Speed60/40 (20KG/100KG) M/minM/min
Z-axis Speed60/40 (20KG/100KG) M/minM/min
AccuracyRepeat Positioning Accuracy±0.015 mmmm
Auxiliary EquipmentStandard Auxiliary EquipmentCompound workstation, Flat plate conveyorSet
Optional Auxiliary EquipmentWorkpiece rotating station, Smart inspection station, Smart cleaning station,
Smart storage robot, Smart laser marking station		/
