Product Features:

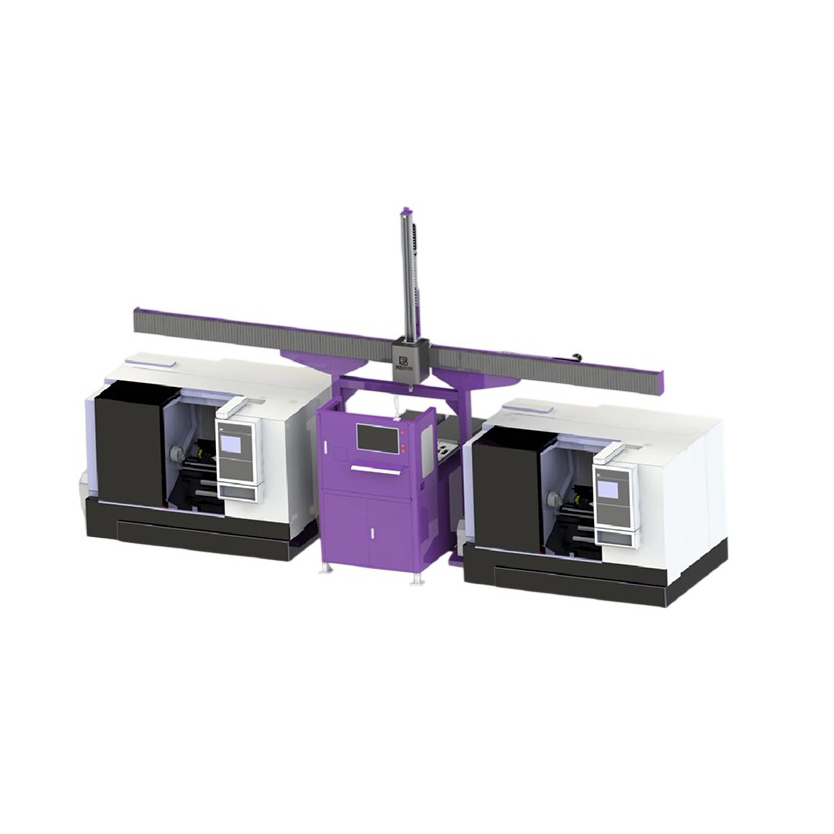

1: X-axis speed up to 150 m/min; supports up to 10 kg payload, ideal for high-speed, cost-sensitive production lines serving 2 CNC machines.
2: All-steel construction with triple stress-relief processing; mass-produced components ensure consistent, stable performance.
3: Integrated with a 22” real-time monitoring display and 10.1” tablet for intelligent, user-friendly operation.
4: Standard 4-axis coordinated motion with motion compensation; repeat positioning accuracy reaches ±0.015 mm.
5: Modular integration supports auto loading/unloading, workpiece inspection, and cleaning; compatible with lathes, machining centers, and grinders.
6: Can be configured for single-to-dual machine setups and scaled up based on process needs; supports mixed CNC integration.
7: Multiple robotic arms can be deployed simultaneously to match takt time and improve overall production efficiency.
Technical Parameter
| Category | Item | Parameter | Unit |
| Service Machine Type | Machine Types | Horizontal CNC lathe, Multi-axis compound machine,
CNC grinding machine | / |
| Supported Machines | 2 | / |
| Robot Axis Number | Standard Axis Count | 2axes | Axis |
| Optional Axis Count | 3, up to 8 axes | Axis |
| Robot Load | Max Workpiece Weight | 7 | KG |
| Max End Load | 12 | KG |
| Travel | X-axis Travel | 5100/6100 | mm |
| Z-axis Travel | 1300/1500 | mm |
| Robot Height | Machine Height | 1700/2000/2300 | mm |
| Column Height | 2000/2200/2500 | mm |
| Moving Speed | X-axis Speed | 120 | M/min |
| Y-axis Speed | 90 | M/min |
| Accuracy | Repeat Positioning Accuracy | ±0.02 | mm |
| Auxiliary Equipment | Standard Auxiliary Equipment | Compound workstation, Flat plate conveyor | Set |
| Optional Auxiliary Equipment | Workpiece rotating station, Smart inspection station, Smart cleaning station,
Smart storage robot, Smart laser marking station | / |
