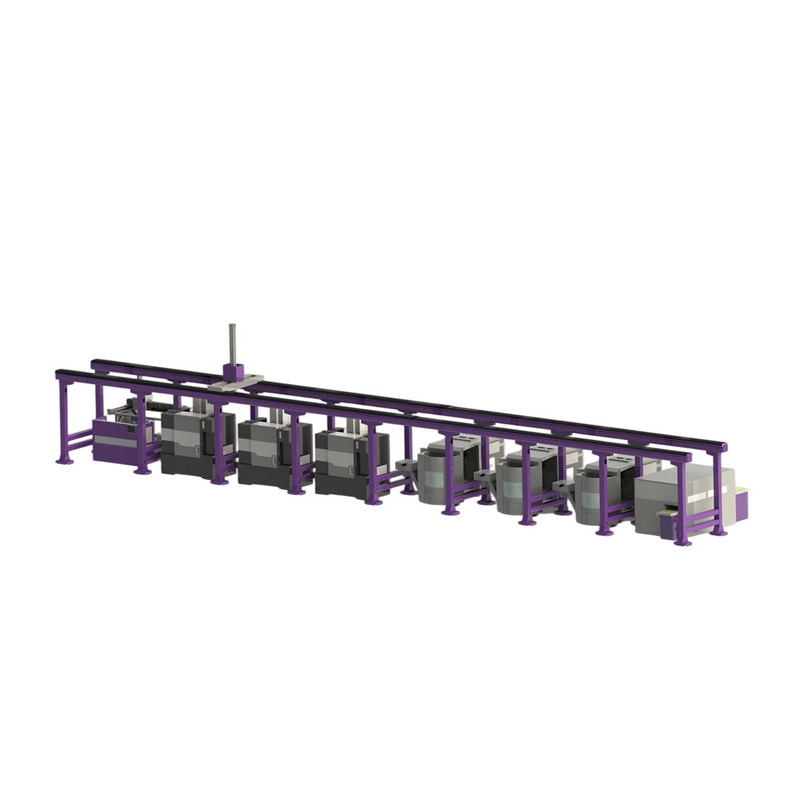

TZ-MU Ultra Heavy-Duty Intelligent Gantry Robot Production Line
TZ-MU Ultra Heavy-Duty Intelligent Gantry Robot Production Line TZ-MU Ultra Heavy-Duty Intelligent Gantry Robot Production Line

loading

TZ-MU Ultra Heavy-Duty Intelligent Gantry Robot Production Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The TZ-MU series is built for ultra-heavy workpiece automation, featuring high payload capacity, precise motion control, and modular intelligent integration. With support for up to 20 CNC machines and multiple robotic arms, it is an ideal solution for fully automated processing of large and high-mass components.
SKU:
Availability:
Quantity:
Inquire Add to Basket
Product Features:
1: Supports ultra-heavy payloads up to 1000 kg, enabling full automation of large-scale machining operations.
2: Repeat positioning accuracy of ±0.015 mm with 4-axis coordinated motion and motion compensation functions.
3: Compatible with CNC lathes, machining centers, and grinders; configurable for 1-to-2 up to 1-to-20 machine setups.
4: Modular integration of smart functions including workpiece inspection, automatic cleaning, and laser marking.
5: Equipped with a 22” real-time monitoring screen and 10.1” touchscreen tablet for intelligent operation.
6: All-steel structure with triple stress-relief processing ensures exceptional stability and durability under heavy loads.
7: Multiple robotic arms can be deployed simultaneously based on takt time requirements to enhance line efficiency.


Technical Parameter

CategoryItemParameterUnit
Service Machine TypeMachine TypesHorizontal CNC lathe, Vertical CNC lathe, Multi-axis compound machine,
CNC grinding machine, Vertical machining center, Gear machining machine		/
Max Supported MachinesUp to 36/
Robot Axis NumberStandard Axis Count3/4 axesAxis
Optional Axis Count5/6/7 optional, up to 128 axesAxis
Robot LoadMax Workpiece Weight50/170/350/600/800KG
Max End Load100/300/500/800/1100KG
TravelX-axis Travel3700/4400/5100/6000mm
Y-axis Travel1000/2000/3000/4000mm
Z-axis Travel1500/2000/2500/3000/3500mm
Robot HeightMachine Height2000/2300/2600/3100/4000mm
Column Height2500/2800/3300/3600/4500mm
Moving SpeedX-axis Speed100(500KG)  60(500KG)M/min
Y-axis Speed40M/min
Z-axis Speed60(500KG) 40(500KG)M/min
AccuracyRepeat Positioning Accuracy±0.025mm
Auxiliary EquipmentStandard Auxiliary EquipmentCompound workstation, Flat plate conveyorSet
Optional Auxiliary EquipmentWorkpiece rotating station, Smart inspection station, Smart cleaning station,
Smart storage robot, Smart laser marking station		/
