| Specification | unit | XK2306 | XK2306/1 | XK2308 | XK2310 | |
| Worktable area (width × length) | mm | 630×1250 | 630×1800 | 800×800 | 1000×2000 | |
| Worktable T-slot (number of slots × width × slot spacing) | mm | 5×18×125 | 7×22×125 | |||
| Distance from spindle end to worktable surface | mm | 230-580 | ||||
| Distance between gantry columns | mm | 1030 | 1030 | 1230 | 1430 | |
| Longitudinal travel of worktable | mm | 1600 | 2200 | 2200 | 2400 | |
| Horizontal travel of spindle box | mm | 1000 | 1000 | 1200 | 1400 | |
| Spindle taper hole number | mm | ISO50 | ||||
| Up and down travel of spindle box | mm | 500 | ||||
| Spindle speed series | Level | Stepless Infinitely variable | ||||
| Range | rpm | 30-4000 | ||||
| Three-way feed speed | Level | Stepless Infinitely variable | ||||
| Range | mm/min | 10-4000 | ||||
| Three-way rapid movement speed | mm/min | 10000 | ||||
| Spindle motor power | kw | 7.5 | 7.5 | |||
| Worktable movement motor power | kw | 3 | 4.9 | |||
| Spindle box horizontal movement motor power | kw | 2.2 | 2.2 | |||
| Spindle box vertical movement motor power | kw | 2.2 | 2.2 | |||
| Worktable maximum load weight | kg | 2000 | 2800 | 3500 | 4400 | |
| Machine tool net weight | kg | 6100 | 7200 | 7600 | 8400 | |
| Machine tool overall dimensions (length × width × height) | mm | 5400×3000×2750 | 6530×3000×2750 | 6530×3000×2750 | 6730×3000×2750 | |
Products Features
1: Three-axis Linkage: Ensures easy completion of precise and complex machining tasks.
2: Multifunctional Processing Capabilities: Versatile use in milling, boring, drilling, and broaching operations.
3: High Stability Structure: Fixed beam and column design provide supreme mechanical stability and shock resistance.
4: Advanced CNC System: Features Siemens 802DSL system, enhancing ease of operation and machining accuracy.
5: Broad Processing Range: The worktable size of 630mm×1250mm meets a wide range of machining needs.
Applications
The XK2306 CNC Gantry Milling Machine is suitable for industries like automotive, aerospace, mold manufacturing, and large machinery parts processing. Its efficient processing capability is particularly ideal for the precision machining of large and complex parts.

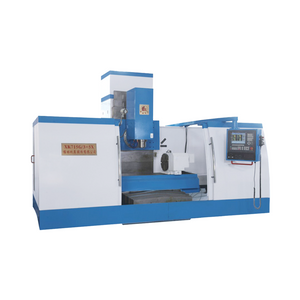

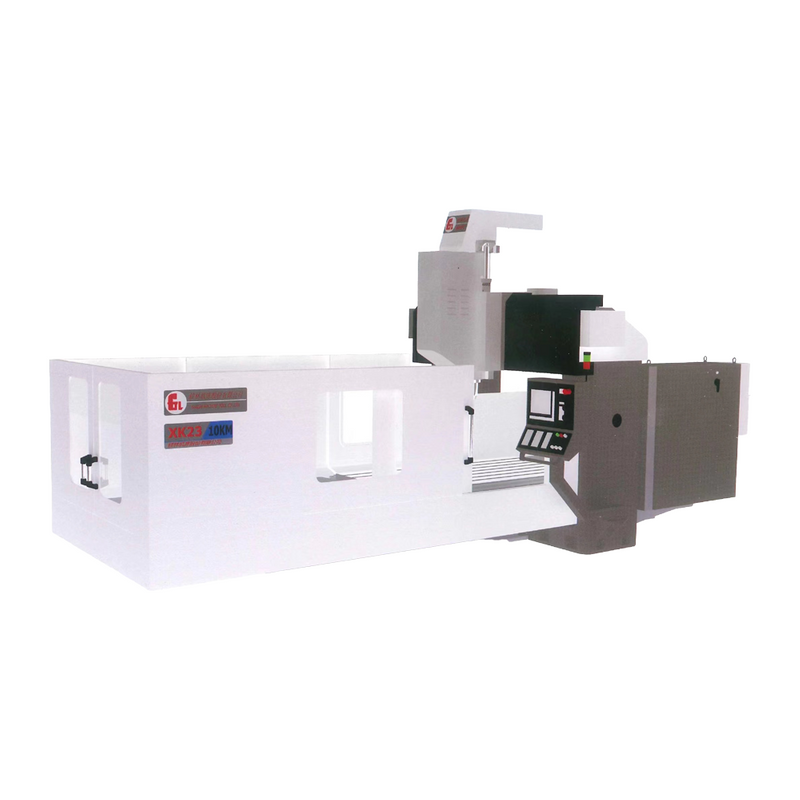

Products Pictures
