| Specification | unit | XK2312WT/5X | XK2314WT/5X | XK2316WT/5X | |
| Workbench area (width × length) | mm | 1600×2000 | 1400×1400 | Φ1600 | |
| Workbench T-slot (number of slots × width × slot spacing) | mm | 9×18×125 | 7×22×150 | 8-28 evenly distributed | |
| Workbench longitudinal travel | mm | 1500 | 1000 | 2000 | |
| Ram stroke | Horizontal | mm | 1350 | 1350 | 2300 |
| Vertical | mm | 700 | 700 | 1200 | |
| The distance between the spindle centerline and the table surface when ±90° | mm | 180 | 180 | 180 | |
| Main motor power | kw | 11(continuous) | 11(continuous) | 15(continuous) | |
| Spindle speed | Range | rpm | 30～2500 | ||
| Level | infinitely variable | ||||
| Spindle taper | BT50 | ||||
| B axis rotation angle | ±360° | ||||
| A axis swing angle | ±100° | ||||
| Three-way rapid traverse speed | mm/min | 8000 | |||
| Three-way cutting feed speed | mm/min | X, Y, Z: 5～4000, A axis: 0.003～1rpm, B axis: 0.01～3rpm | |||
| Positioning accuracy | mm | ±0.010/1000 | |||
| Repeat positioning accuracy | mm | 0.015 | |||
| Maximum load of worktable | kg | 2000 | 2000 | 3000 | |
| Net weight of locomotive | T | 32 | 32 | 38 | |
| Locomotive overall dimensions (length × width × height) | mm | 4500×4550×4600 | 4500×4550×4600 | 5300×5100×5200 | |
Products Features
1: 5-Axis Simultaneous Control: Features a fixed beam and column gantry structure with a CNC rotary table (B-axis) and swing head (A-axis), enabling simultaneous 5-axis control for complex machining operations.
2: High Rigidity and Stability: The machine adopts a rectangular guide rail structure, offering exceptional rigidity and stability, ideal for high-strength cutting of complex parts.
3: Multifunctional Machining Capabilities: Capable of performing various machining processes such as milling, boring, and drilling, with high automation and broad process adaptability.
4: High-Precision Spindle System: The spindle is fitted with imported precision bearings, providing excellent rigidity and operational stability, ensuring long-term high-precision machining.
5: Automatic Lubrication and Chip Removal Systems: Equipped with a timed and metered automatic lubrication system and optional automatic chip removal system, enhancing machine reliability and operational efficiency.
Applications
The XK2312WT/5X 5-Axis CNC Gantry Milling Machine is widely used for machining small to medium-sized complex parts in industries such as aerospace, shipbuilding, mold manufacturing, and automotive. Its 5-axis simultaneous control design makes it particularly suitable for high-precision multi-surface machining, capable of completing multiple machining processes in a single setup. The machine excels in high-strength, high-precision cutting applications, especially in large-scale production environments.

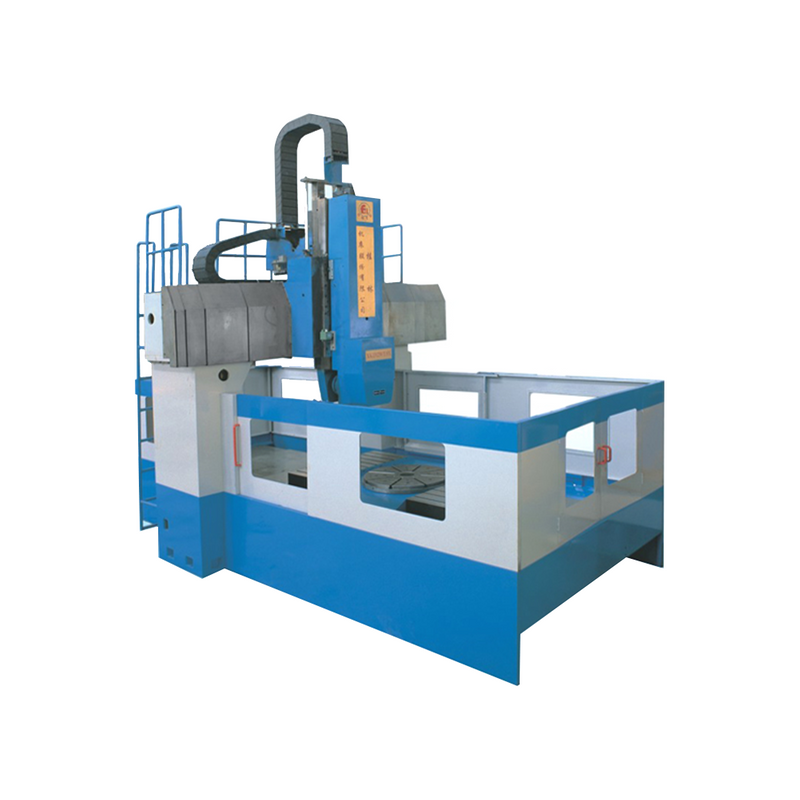

Products Pictures
