| Specification | unit | XK2310KM | |
| Workbench area (width x length) | mm | 1000×2000 | |
| Workbench T-slot | Number of slots | 7 | |
| Slot width | mm | 22 | |
| Slot spacing | mm | 125 | |
| Distance from the spindle end to the worktable | mm | 80-830 | |
| Distance between the gantry columns | mm | 1430 | |
| Longitudinal travel of the worktable | mm | 2400 | |
| Horizontal travel of the spindle box | mm | 1400 | |
| Spindle box hole number | BT50 | ||
| Up and down travel of the spindle box | mm | 750 | |
| Spindle speed | Level | Stepless Infinitely variable | |
| Range | rpm | 30-4000 | |
| Three-way feed level | Level | Stepless Infinitely variable | |
| Range | mm/min | 10-4000 | |
| Three-way rapid movement speed | mm/min | 10000 | |
| Spindle motor power | kW | 15 | |
| Worktable movement motor torque | Nm | 27 | |
| Spindle box horizontal movement motor torque | Nm | 15 | |
| Spindle box vertical movement motor torque | Nm | 15 | |
| Worktable maximum load weight | kg | 4400 | |
| Machine tool net weight | kg | 8800 | |
| Machine tool overall dimensions (length × width × height) | mm | 6730×3000×3300 | |
Products Features
1: Three-Axis Linkage: Supports X, Y, and Z axis linkage, meeting the complex machining demands from multiple angles and directions.
2: High-Precision Machining: Adjustable spindle speeds ranging from 30 to 4000 rpm, ensuring stability and accuracy when processing different materials.
3: High-Efficiency Rapid Movement: Rapid feed movement speeds of up to 10,000 mm/min, significantly enhancing production efficiency.
4: Sturdy Gantry Structure: Designed with a fixed beam and fixed column, providing a stable structure ideal for machining large workpieces.
5: Powerful Motor Output: Equipped with a 15kW spindle motor, delivering strong cutting performance for demanding machining tasks.
Applications
The XK2310KM CNC Die Sinking Machine is widely used in the mechanical manufacturing industry, especially for complex machining of large and medium-sized parts, such as automotive components, aerospace parts, and large molds. Its high precision and multifunctionality allow it to handle various tasks from rough machining to fine finishing. This machine is particularly effective in industrial production environments that demand high efficiency and precision, greatly improving both productivity and machining quality.

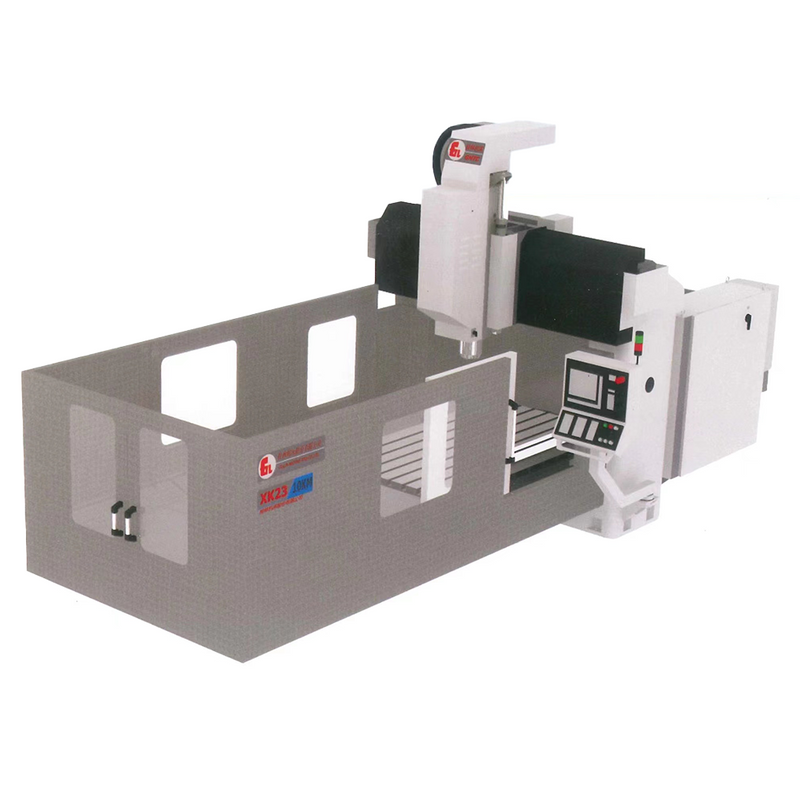

Products Pictures
