| Specification | unit | XK715G/3-5X | XK715G/3-5X | |
| Worktable area (W×L) | mm | 500×1600 | 600×2400 | |
| Workbench T-slot | Number of slots | 5 | ||
| Slot width | mm | 10 | ||
| Slot distance | mm | 100 | 125 | |
| CNC Vertical and Horizontal Rotary Table | mm | Φ320 | ||
| Distance from spindle face to table | mm | 100～850 | ||
| Three way travel | Longitudinal | mm | 1200 | 1600 |
| Vertical | mm | 600 | 600 | |
| Horizontal | mm | 700 | 750 | |
| A-direction travel | 360 | |||
| B-direction travel | ±45° | |||
| Spindle taper hole number | ISO50 | |||
| Distance from spindle centerline to column guideway surface | mm | 660 | 730 | |
| Spindle speed | Range | r/min | 60～6000 | |
| Number of levels | grade | infinitely variable | ||
| Three-way feed | Longitudinal | mm/min | 6～4000 | |
| vertical | mm/min | 6～4000 | ||
| Horizontal | mm/min | 6～4000 | ||
| three-way fast-moving volume | Longitudinal | mm/min | 10000 | |
| Vertical | mm/min | 10000 | ||
| Horizontal | mm/min | 10000 | ||
| Spindle motor power | kw | 12 | ||
| Maximum table weight | kg | 1000 | ||
| Overall dimensions of machine(L×W×H) | mm | 3800×3500×3000 | 5000×3500×3000 | |
| Net weight of machine | kg | 7200 | 8200 | |
Products Features
1: High Rigidity Design: The machine features strong overall rigidity. All major components, including the column, saddle, base, spindle box, and worktable, are made of high-strength cast iron with box-type or near box-type structures, reinforced with sufficient ribs to ensure the machine's precision and stability.
2: Stepless Speed Spindle: The spindle is driven by an AC servo motor, enabling stepless speed adjustment with excellent mechanical characteristics and high rotational speed.
3: Four-Guided Rail Structure: The horizontal guide rails are arranged in a four-rail structure with a large span, ensuring that the workpiece's center of gravity is within the support range of the guide rails, enhancing the machine's load-bearing capacity.
4: Five-Axis Linkage: Equipped with an A-axis CNC rotary table, the spindle box can rotate around the B-axis for five-axis simultaneous machining of complex workpieces.
5: Automatic Lubrication System: The machine employs an automatic centralized timing and quantitative lubrication system, ensuring sufficient and reliable lubrication, thus extending the equipment's service life.
Applications
This machine is particularly suitable for machining complex curved surface parts, such as impellers, turbine blades, and complex molds in the aerospace industry. The five-axis linkage capability allows it to complete multi-faceted complex surface machining in a single setup, significantly improving production efficiency and machining accuracy in fields requiring high precision.

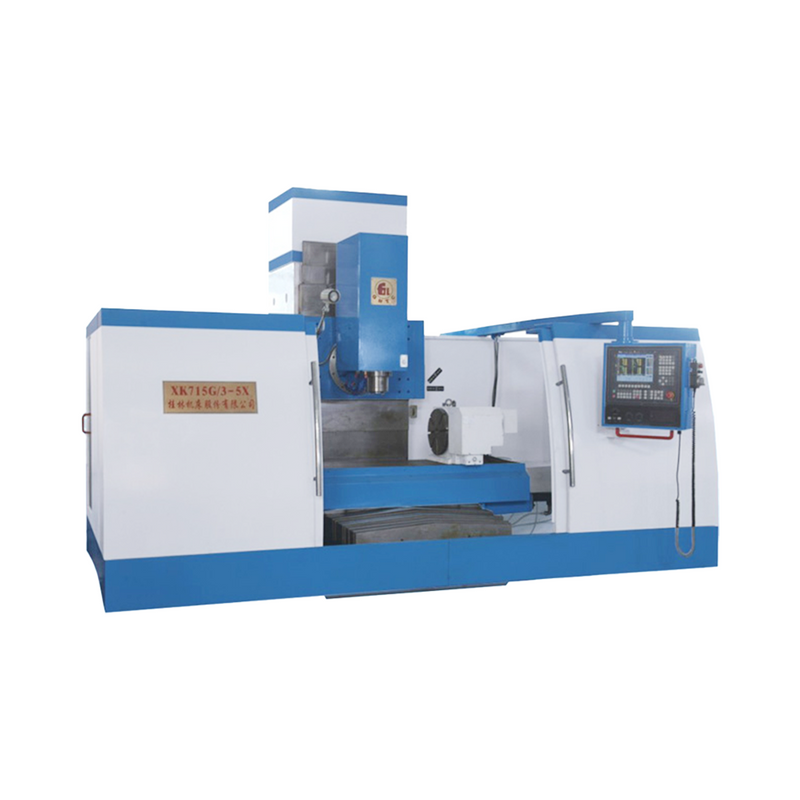

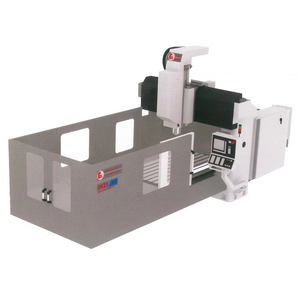

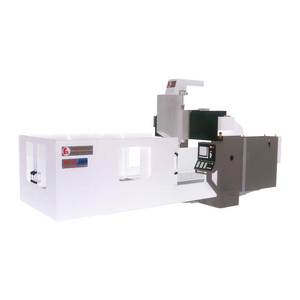

Products Pictures
| Specification | unit | XK715G/3-5X | XK715G/3-5X | |
| Worktable area (W×L) | mm | 500×1600 | 600×2400 | |
| Workbench T-slot | Number of slots | 5 | ||
| Slot width | mm | 10 | ||
| Slot distance | mm | 100 | 125 | |
| CNC Vertical and Horizontal Rotary Table | mm | Φ320 | ||
| Distance from spindle face to table | mm | 100～850 | ||
| Three way travel | Longitudinal | mm | 1200 | 1600 |
| Vertical | mm | 600 | 600 | |
| Horizontal | mm | 700 | 750 | |
| A-direction travel | 360 | |||
| B-direction travel | ±45° | |||
| Spindle taper hole number | ISO50 | |||
| Distance from spindle centerline to column guideway surface | mm | 660 | 730 | |
| Spindle speed | Range | r/min | 60～6000 | |
| Number of levels | grade | infinitely variable | ||
| Three-way feed | Longitudinal | mm/min | 6～4000 | |
| vertical | mm/min | 6～4000 | ||
| Horizontal | mm/min | 6～4000 | ||
| three-way fast-moving volume | Longitudinal | mm/min | 10000 | |
| Vertical | mm/min | 10000 | ||
| Horizontal | mm/min | 10000 | ||
| Spindle motor power | kw | 12 | ||
| Maximum table weight | kg | 1000 | ||
| Overall dimensions of machine(L×W×H) | mm | 3800×3500×3000 | 5000×3500×3000 | |
| Net weight of machine | kg | 7200 | 8200 | |
Products Features
1: High Rigidity Design: The machine features strong overall rigidity. All major components, including the column, saddle, base, spindle box, and worktable, are made of high-strength cast iron with box-type or near box-type structures, reinforced with sufficient ribs to ensure the machine's precision and stability.
2: Stepless Speed Spindle: The spindle is driven by an AC servo motor, enabling stepless speed adjustment with excellent mechanical characteristics and high rotational speed.
3: Four-Guided Rail Structure: The horizontal guide rails are arranged in a four-rail structure with a large span, ensuring that the workpiece's center of gravity is within the support range of the guide rails, enhancing the machine's load-bearing capacity.
4: Five-Axis Linkage: Equipped with an A-axis CNC rotary table, the spindle box can rotate around the B-axis for five-axis simultaneous machining of complex workpieces.
5: Automatic Lubrication System: The machine employs an automatic centralized timing and quantitative lubrication system, ensuring sufficient and reliable lubrication, thus extending the equipment's service life.
Applications
This machine is particularly suitable for machining complex curved surface parts, such as impellers, turbine blades, and complex molds in the aerospace industry. The five-axis linkage capability allows it to complete multi-faceted complex surface machining in a single setup, significantly improving production efficiency and machining accuracy in fields requiring high precision.
