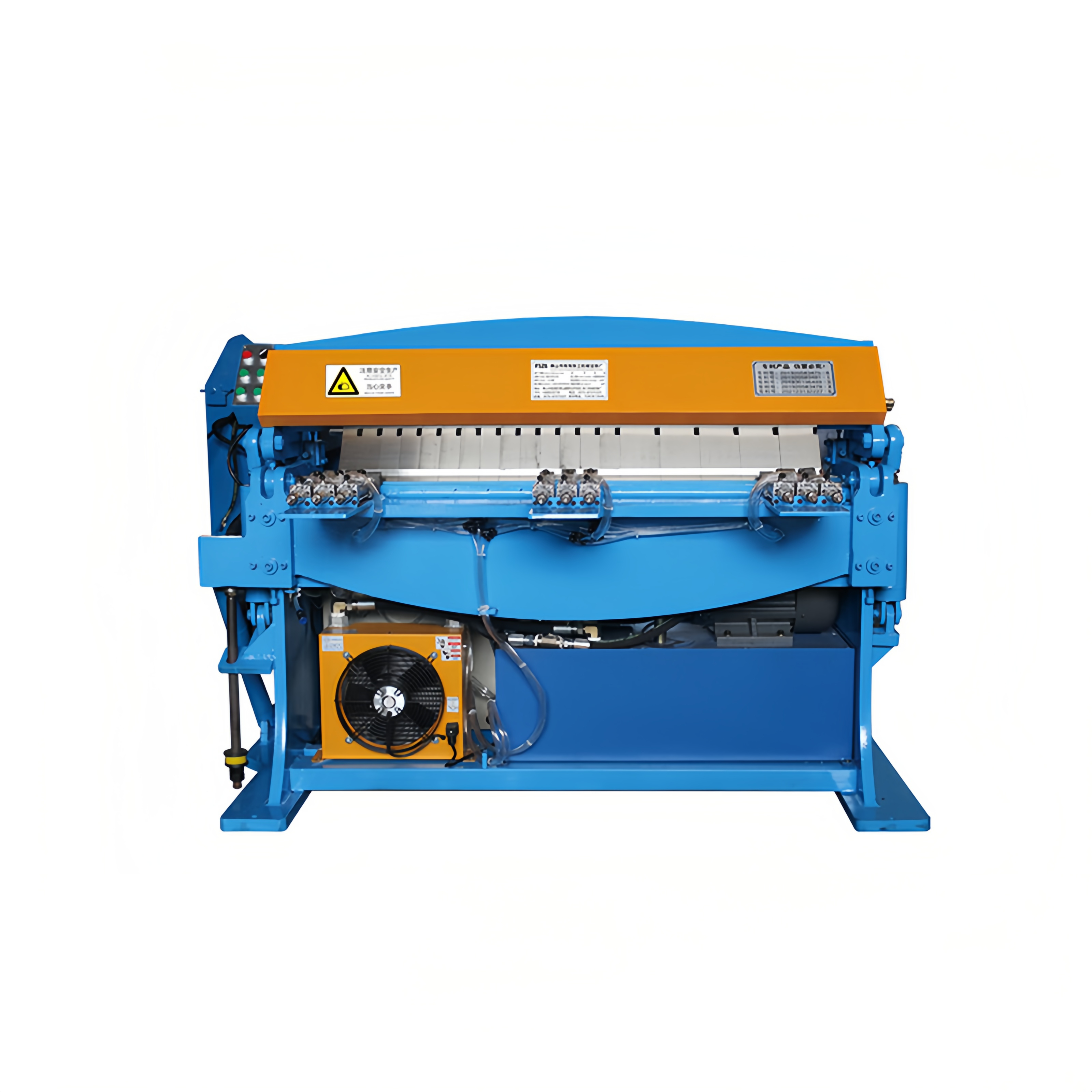

ZG 2500 No-lift Hydraulic Bending Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This hydraulic edge-folding machine offers powerful and stable bending performance, equipped with an automatic blade clamping system. It allows quick adjustment of non-standard blade widths within 3–5 seconds without the need for manual clamping. The system locks automatically via the foot pedal, ensuring ease of use and high production efficiency. Rear-positioning options can also be installed for more precise operations.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Hydraulic Power

Stable hydraulic system ensures powerful edge folding, suitable for heavy-duty tasks.


2: Automatic Blade Clamping

Blades clamp automatically when foot switch is pressed — no need for extra manual operation.


3: Quick Adjustment for Non-standard Sizes

Blade width can be easily adjusted within 3–5 seconds to accommodate non-standard materials.


4: Rear Positioning Optional

Rear positioning device available for enhanced accuracy and faster production flow.


5: Standard Blade Design

Comes with standard blade size (Upper: 1200mm, Lower: 1250mm) and customizable width options.


Product Parameter:


ParameterValue
Input Voltage3 phase 4 wires 380V
Control Voltage220V
Power5.5KW
Capacity1.0 x 1250mm
Machine Size1850 x 1100 x 1300mm
Table Height825mm
Machine Weight1500KG


Blade Specification Table:

Blade PartLengthWidth (per piece)Remarks
Upper Blade1200mm50cm (customizable)Standard blade machine
Lower Blade1250mm50cm (customizable)
