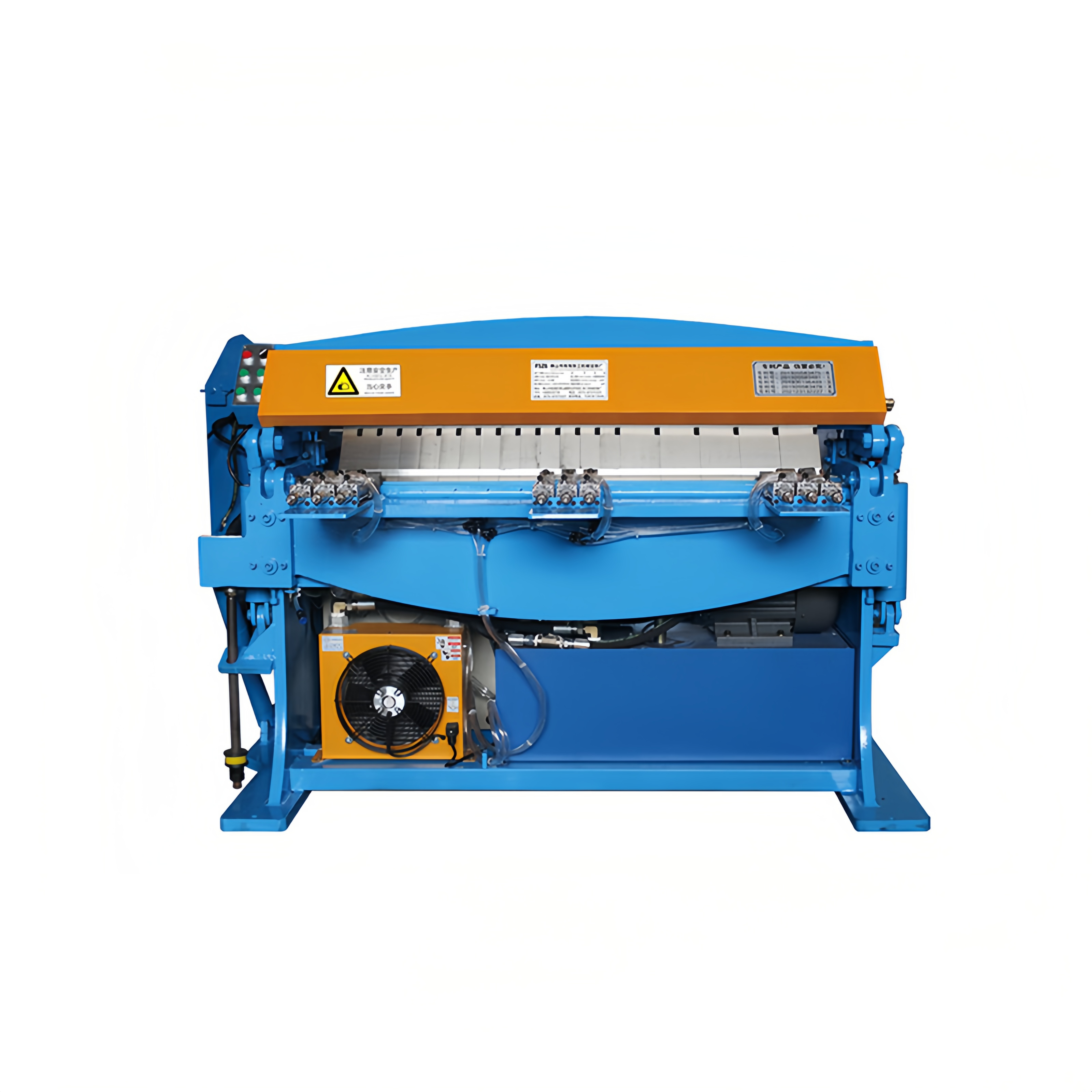

ZG Hydraulic Edge Bending Machine with Automatic Clamping
ZG Hydraulic Edge Bending Machine with Automatic Clamping ZG Hydraulic Edge Bending Machine with Automatic Clamping

loading

ZG Hydraulic Edge Bending Machine with Automatic Clamping

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This hydraulic edge-folding machine offers powerful and stable bending performance, equipped with an automatic blade clamping system. It allows quick adjustment of non-standard blade widths within 3–5 seconds without the need for manual clamping. The system locks automatically via the foot pedal, ensuring ease of use and high production efficiency. Rear-positioning options can also be installed for more precise operations.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Hydraulic Power

Stable hydraulic system ensures powerful edge folding, suitable for heavy-duty tasks.


2: Automatic Blade Clamping

Blades clamp automatically when foot switch is pressed — no need for extra manual operation.


3: Quick Adjustment for Non-standard Sizes

Blade width can be easily adjusted within 3–5 seconds to accommodate non-standard materials.


4: Rear Positioning Optional

Rear positioning device available for enhanced accuracy and faster production flow.


5: Standard Blade Design

Comes with standard blade size (Upper: 1200mm, Lower: 1250mm) and customizable width options.


Product Parameter:

ParameterValue
Input Voltage3 phase 4 wires 380V
Control Voltage220V
Power5.5KW
Capacity1.0 x 1250mm
Machine Size1850 x 1100 x 1300mm
Table Height825mm
Machine Weight1500KG


Blade Specification Table:

Blade PartLengthWidth (per piece)Remarks
Upper Blade1200mm50cm (customizable)Standard blade machine
Lower Blade1250mm50cm (customizable)
