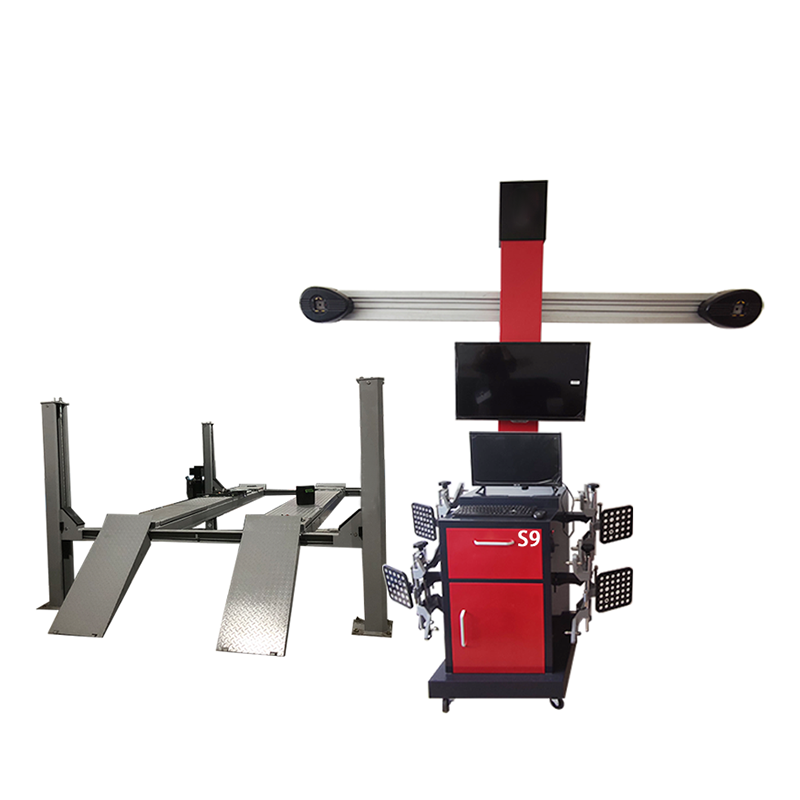

3D four wheel alignment system with HD camera and high-precision measuring functions for automotive workshops

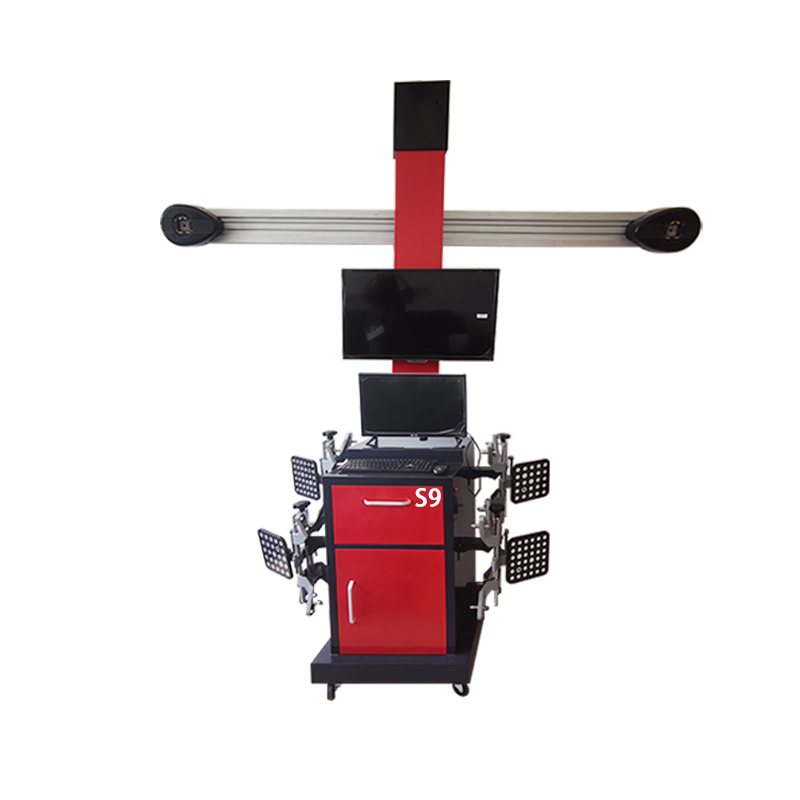

High-resolution industrial camera for accurate wheel angle measurement in car alignment systems

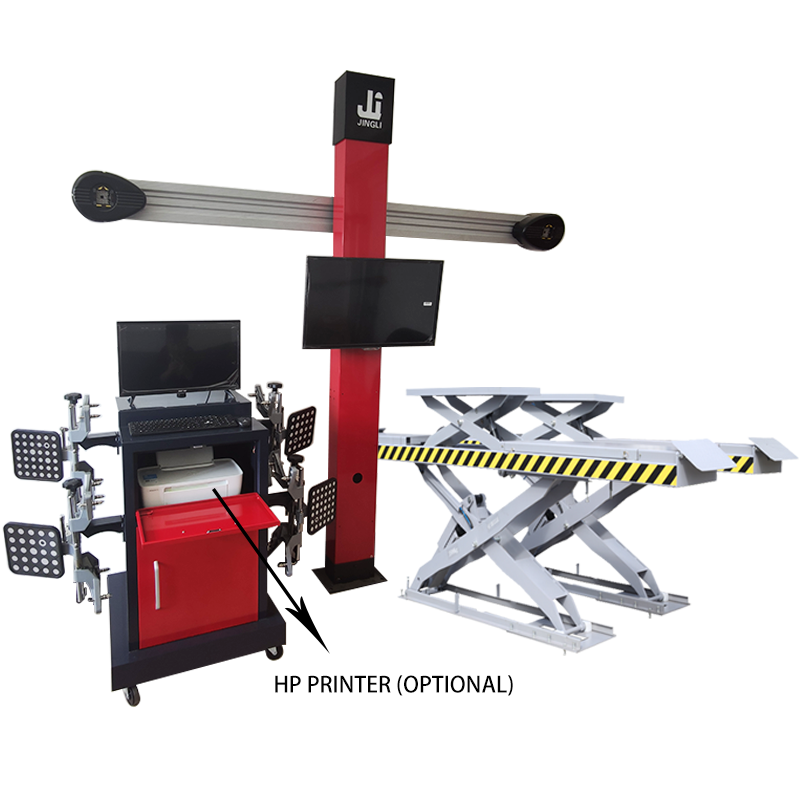

Complete wheel alignment machine set with accessories and wooden box packaging

3D Four Wheel Alignment | Manual Wheel Alignment | Laser Wheel Alignment System

This 3D wheel alignment system is designed for fast and accurate wheel angle measurement in automotive workshops. Equipped with a high-resolution industrial camera and durable patent-designed targets, the system delivers stable and precise alignment results. It supports multi-language operation, voice-guided alignment, and measurement without a vehicle lift, making it suitable for small, medium, and heavy vehicles. The waterproof and scratch-resistant target plates ensure long-term durability, while the system’s clear HD interface and optimized measuring process improve efficiency in tire shops and service centers.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• High-Resolution Industrial Camera

– 5-megapixel HD camera provides clear and accurate wheel angle data

– Supports 3D measurement for improved precision

• Durable Patent-Designed Target Plates

– Waterproof, oil-proof, scratch-resistant, and drop-resistant

– No internal circuits, extremely low failure rate

– Anti-glare surface delivers stable signal feedback

• Multi-Language & Voice Guidance

– Supports global multi-language operation

– Built-in voice broadcast (talking alignment) for user-friendly workflow

• Measurement Without Vehicle Lift

– Allows measurement without moving the car

– Suitable for medium and heavy vehicles

• Fast Installation & Factory Pre-Calibration

– Pre-calibrated for immediate use

– Simple setup and easy maintenance

• Clear HD Display Interface

– High-definition screen for visible measurement details

– Intuitive layout enhances technician efficiency

Products Specification:

Category	Details
Type	3D four-wheel alignment system
Power	Standard
Power Supply	110V / 220V, 50/60 Hz
Balancing Speed	42–220 r.p.m
Max Wheel Weight	75 kg

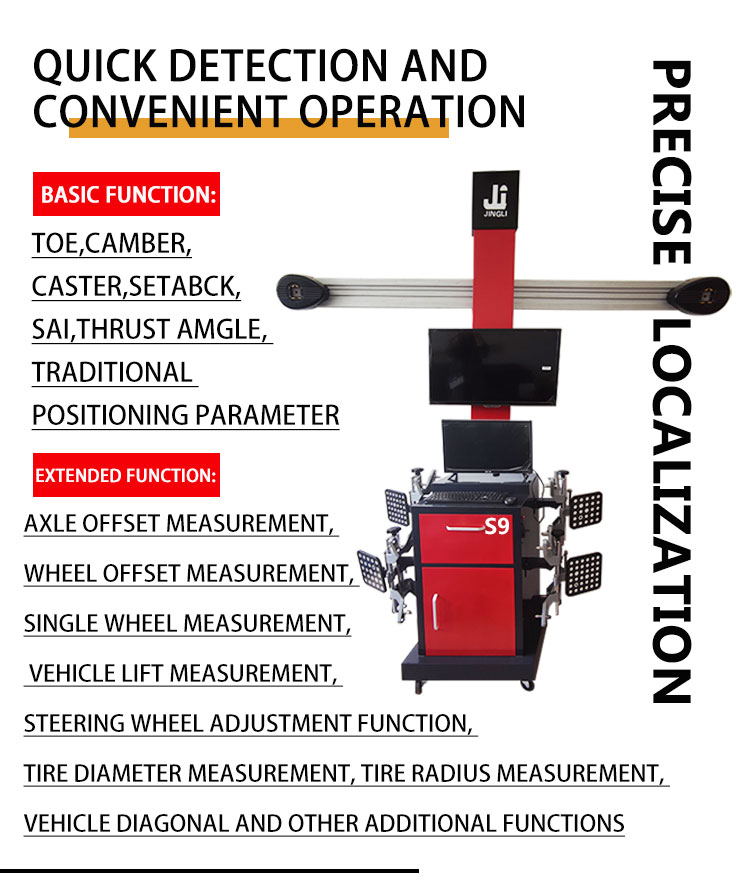

Function	Wheel angle measuring
Camera Resolution	5 million pixels
Motor Power	250 W (110V/220V/240V, 50/60 Hz)
Language Support	Global multi-language
Operation Features	Voice broadcasting, measurement without lift
Target Material	Waterproof, oil-proof, anti-scratch, anti-drop
Software Display	High-definition screen

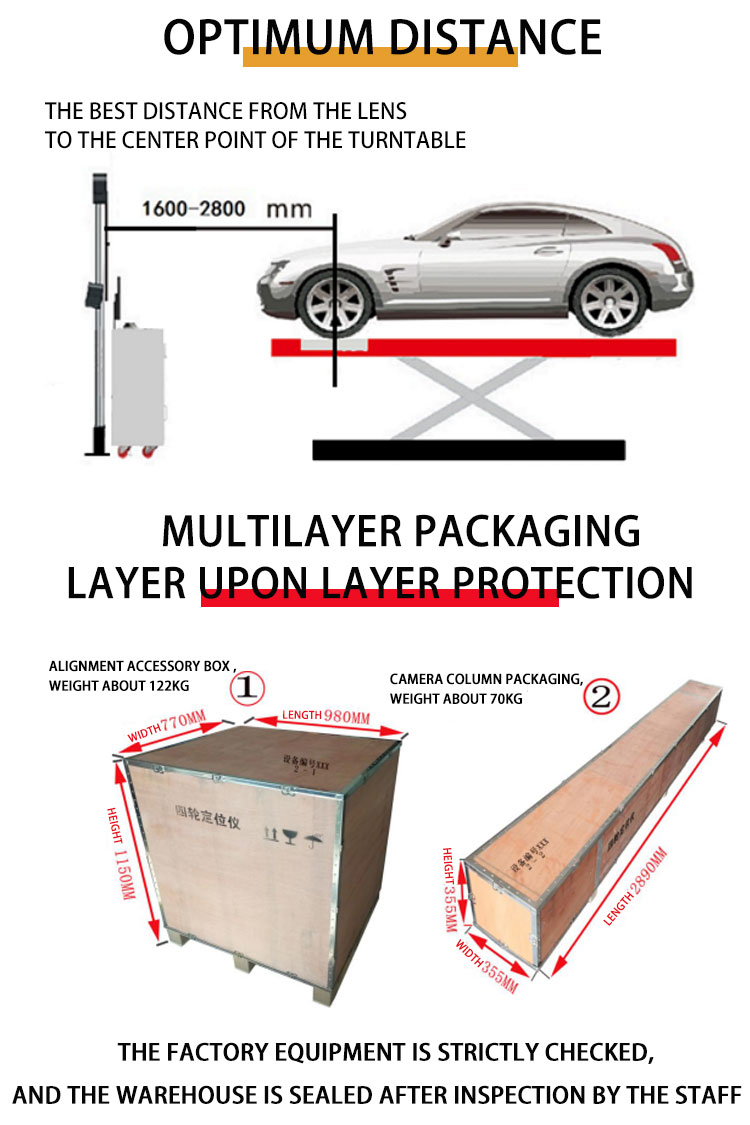

Package	Wooden box
