Machine Features:
• Wide Pressure Range
– Selectable measuring range: −0.95 to 60 bar
– Supports vacuum, low-pressure, and high-pressure calibration
• Three Independent Output Ports
– Three M20×1.5 ports for multi-instrument calibration
– Supports customization of thread sizes
• High Precision Adjustment
– Fine pressure adjustment accuracy: 10 Pa
– Ensures stable and repeatable calibration performance
• Durable Stainless-Steel Structure
– High corrosion resistance
– High mechanical strength for long-term use
• Clean Air Working Medium
– Suitable for laboratories and field environments
– Reduces contamination and maintenance needs
• Manual Pressurization System
– Smooth and stable pressurization
– Easy to operate with reliable sealing performance
• Complete Standard Accessories
– Comes with sealing rings, plugs, certificates, and manual
– Ready for immediate use upon installation
Products Specification:
| Category | Details |
| Measuring Range | −0.95 to 60 bar / −13 to 870 psi / −0.095 to 6 MPa (selectable) |
| Adjustment Resolution | 10 Pa |
| Output Ports | 3 ports |
| Pressure Interface | Standard: M20 × 1.5 (F), customizable |
| Working Medium | Clean air |
| Pressurization Method | Manual |
| Ambient Temperature | −10°C to 60°C |
| Net Weight | Approx. 11.7 kg |
| Product Size | 450 × 410 × 190 mm |
| Package Weight | Approx. 13.8 kg |
| Package Size | 530 × 490 × 270 mm |
| Standard Accessories | Sealing rings ×3, plugs ×3, certificate, manual, warranty card |
| Material | Stainless steel (high corrosion resistance) |

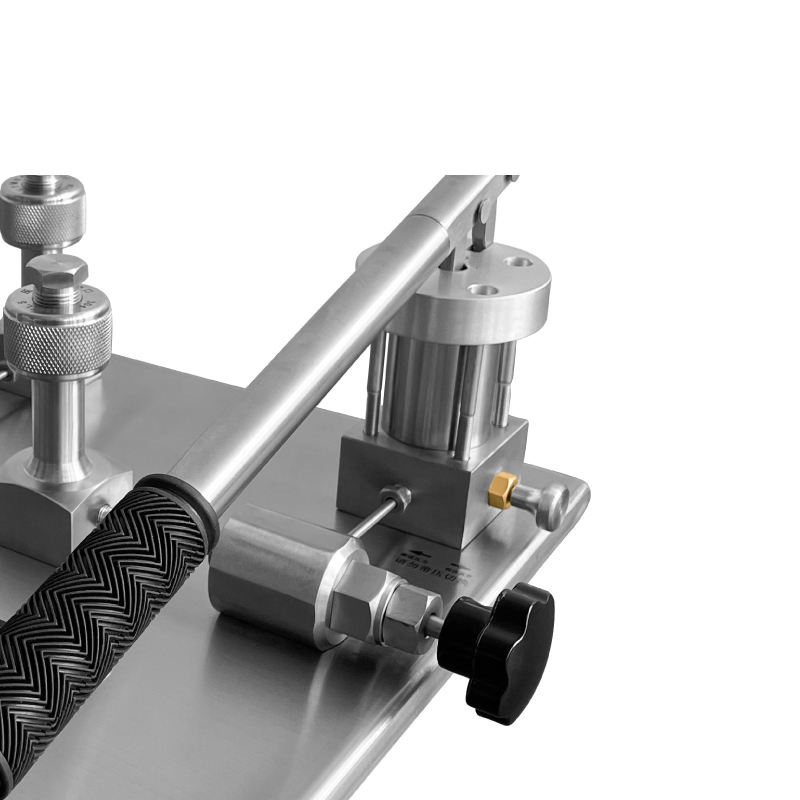

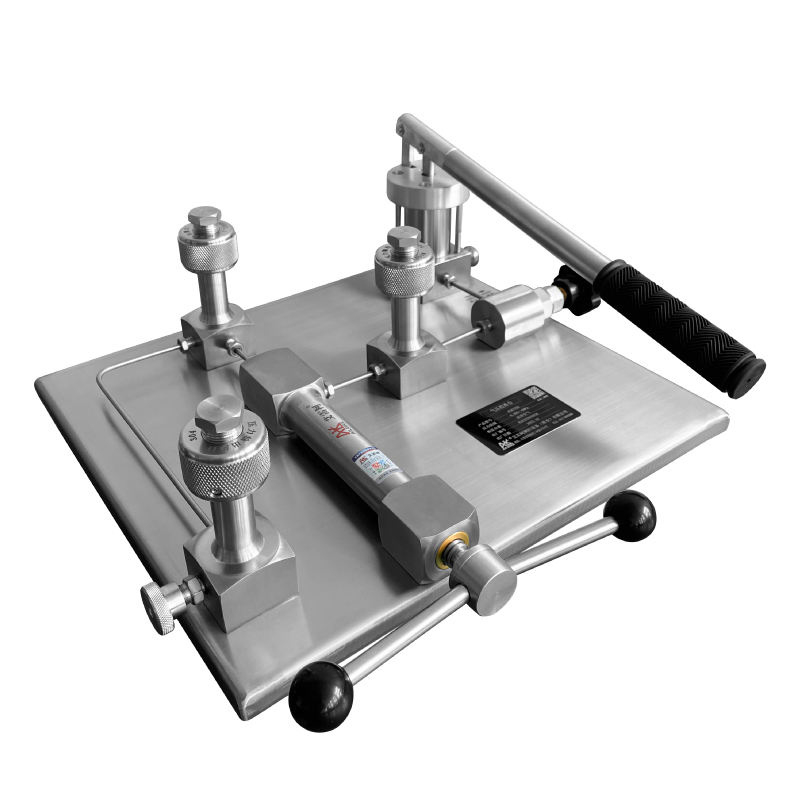

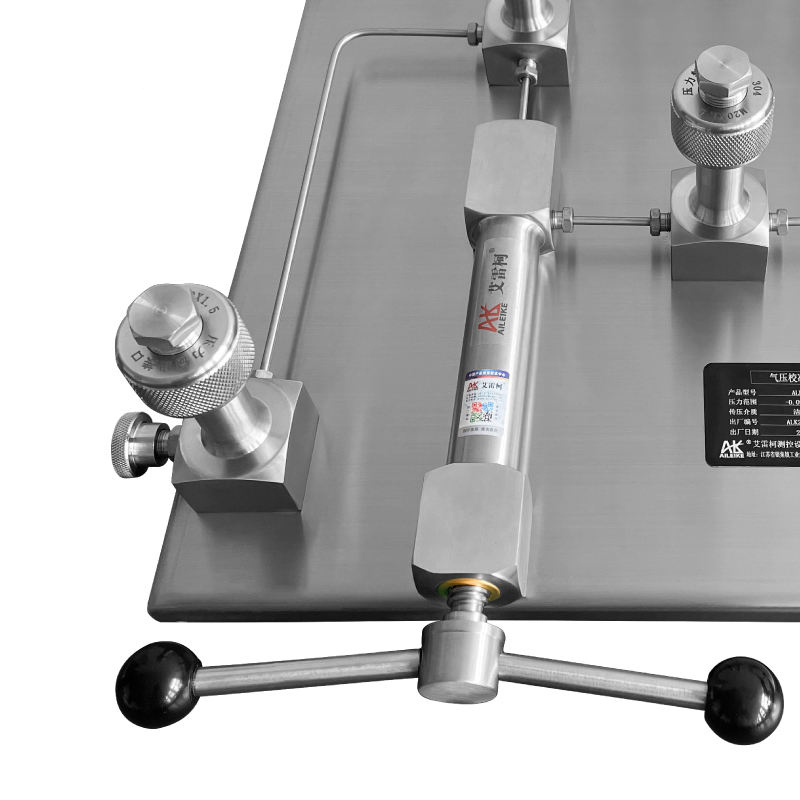

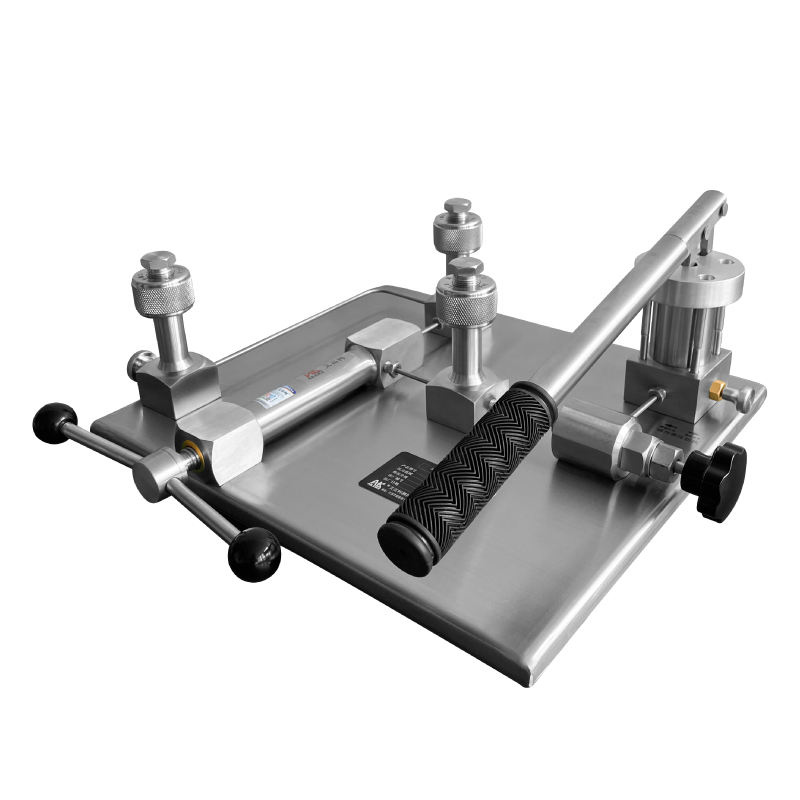

Products Pictures:
