Machine Features:
• Wide Pressure Calibration Range
– Supports 0–10 / 16 / 25 / 40 / 60 MPa
– Suitable for high-pressure instrument calibration
• Compatible with Water or Calibration Oil
– Works with purified water or special oil
– Supports various industrial calibration requirements
• Fine Pressure Adjustment
– Precision add/decrease handwheel enables smooth and accurate pressure output
– Ideal for sensitive gauge calibration
• Multiple M20×1.5 Interfaces
– Standard table port for reference gauge
– Test port for calibrated instrument
– Tool-free connection and easy operation
• Stable & Safe Operation
– Pressure relief knob for controlled depressurization
– Auxiliary bracket improves operating stability
• Compact Bench-Top Design
– Portable 5.24 kg structure
– Suitable for laboratory and on-site calibration tasks
Products Specification:
| Category | Details |
| Pressure Medium | Pure water or special calibration oil |
| Operating Temperature | 0–50°C |
| Dimensions | 375 × 290 × 205 mm |
| Weight | 5.24 kg |
| Pressure Range | 0–10 / 16 / 25 / 40 / 60 MPa |
| Standard Interface | M20 × 1.5 (reference gauge connection) |
| Test Pressure Port | M20 × 1.5 |
| Output Shut-off Valve | Connect/disconnect pressure test interface |
| Pressure Relief Valve | Releases pressure safely |
| Reservoir Cup | Holds pressure medium |
| Fine Adjustment Wheel | Precise pressure increase/decrease |
| Auxiliary Bracket | Enhances calibration table stability |

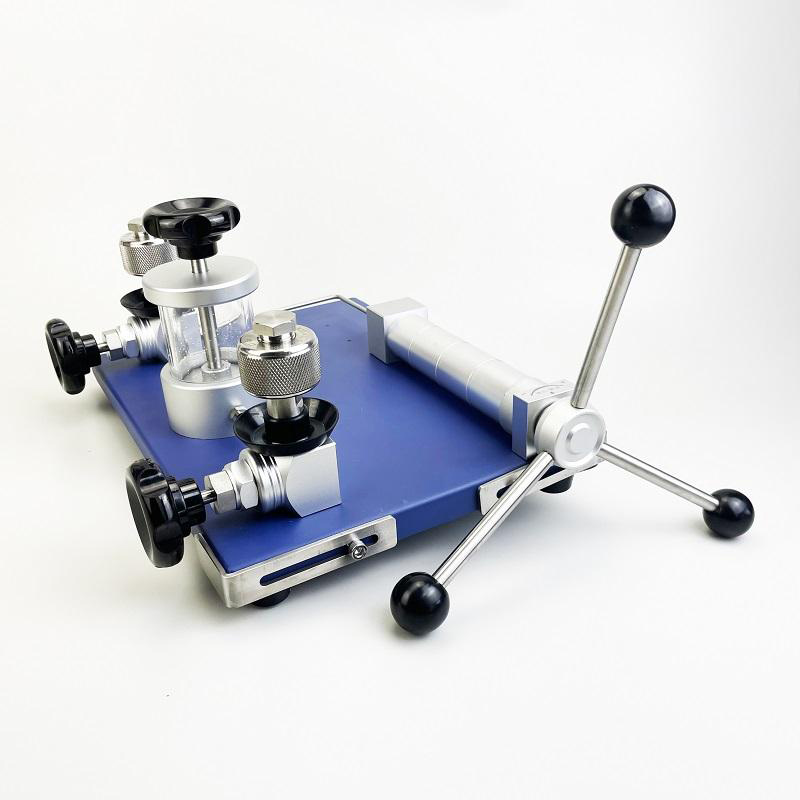

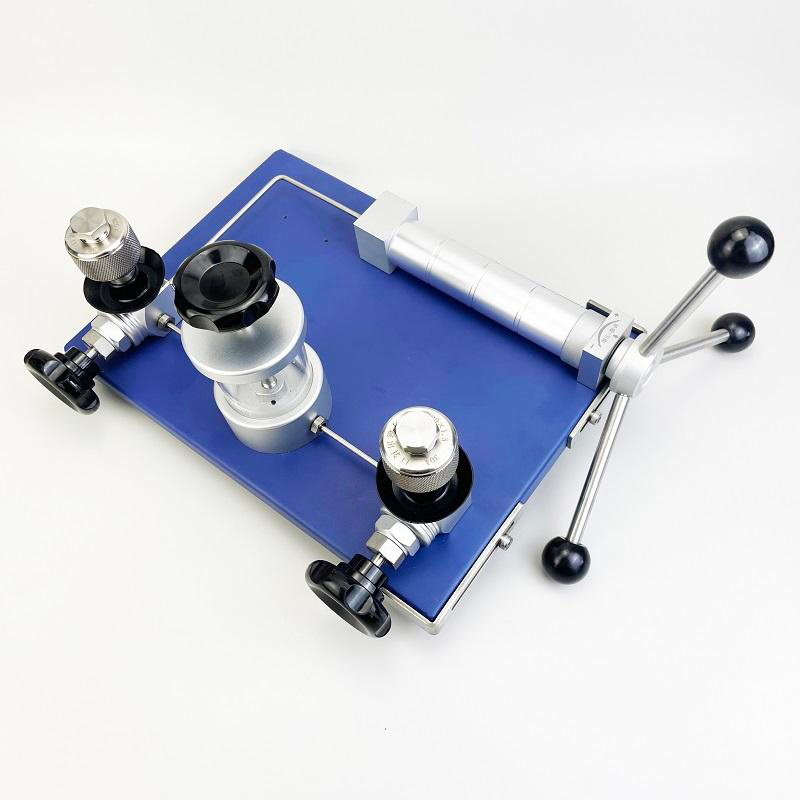

Products Pictures:
