Machine Features:

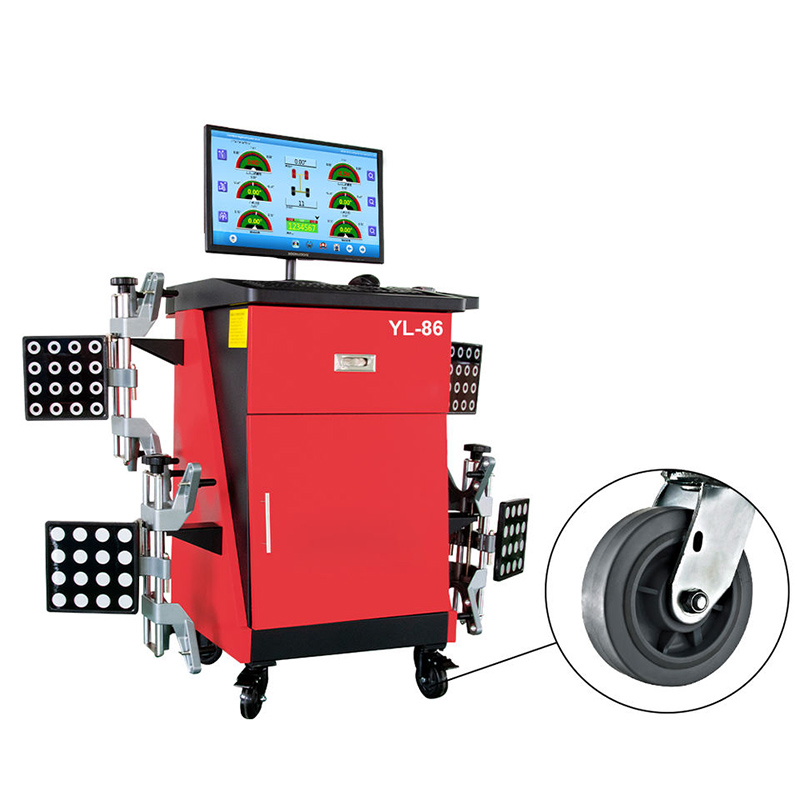

• High-Resolution 3D Camera Measurement
– Equipped with an advanced optical system and HD lens
– Measures wheel angles with high precision
– Camera-to-turntable distance up to 1500–2800 mm
• No Need to Move the Camera
– Fixed camera structure prevents accidental bumps
– Ensures longer operational lifespan and lower maintenance
• Wide Vehicle Database
– Supports over 100 vehicle brands and 50,000+ models
– Users can also add custom models when needed
• Easy-to-Maintain Target Plates
– New design with no internal circuits
– More durable and convenient for workshop use
• Intelligent Alignment Software
– Independently developed system
– Global multi-language support
– Fast operation, stable performance, clear interface
• Traceable Test Data + Printing
– Generates complete vehicle parameter reports
– Supports data tracing and printing for customer records
• Flexible Operating Platform
– Adjustable viewing angles
– Convenient for technicians during alignment work
Products Specification:
| Product Parameters | ||
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX. STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Products Pictures:
