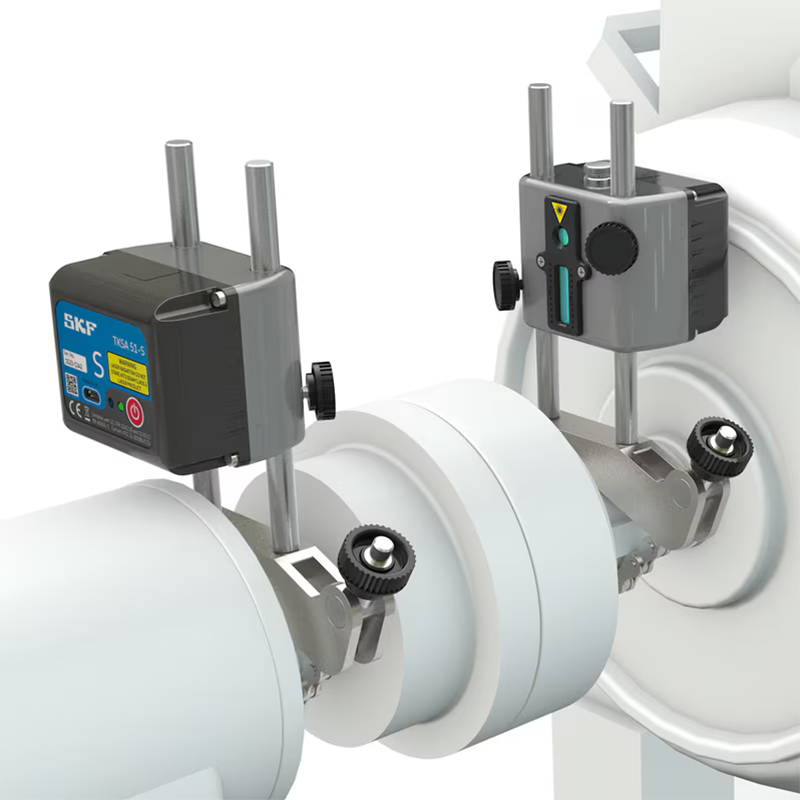

Laser Axis Alignment System for Rotating Machinery, high-precision shaft alignment tool with line-laser sensor

High-accuracy laser measurement unit with inclinometer and Bluetooth for machinery shaft alignment

3D live view shaft alignment interface showing real-time correction for rotating equipment

Rotating Machinery Original Laser Axis Alignment System | Laser Shaft Alignment Tool

This laser axis alignment system is designed for precise alignment of rotating machinery, supporting both horizontal and vertical shaft configurations. Equipped with a high-accuracy line-laser sensor, inclinometer, and Bluetooth connectivity, the system enables fast measurements even in tight spaces with minimal shaft rotation. It works seamlessly with mobile devices through dedicated alignment apps, offering real-time 3D visualization, automatic PDF reporting, and intelligent disturbance compensation. Compact, lightweight, and equipped with a full set of mounting accessories, it is suitable for motors, pumps, fans, gearboxes, and other rotating equipment in industrial maintenance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• High-Accuracy Laser Measurement

– Line-laser sensor with precision error <1% ±10µm

– Stable performance with vibration-resistant averaging algorithm

• Minimal Rotation Required

– Works with only 40° of shaft rotation

– Ideal for installations with limited space or restricted movement

• Real-Time 3D Alignment View

– 3D machine visualization

– Live horizontal & vertical correction guidance

• Automatic Report Generation

– Auto-created PDF reports

– Can add photos, notes, and signatures

– Easy export & sharing

• Wide Device Compatibility

– Supports Android & iOS devices

– Bluetooth wireless communication

• Full Accessory Kit Included

– Brackets, chains, extension rods, measuring tape

– Suitable for shaft diameters 20–150 mm（extendable to 450 mm）

• Durable & Portable Design

– Compact construction

– Long battery life up to 8 hours

– Comes with protective carrying case

Products Specification:

Specifications	Details
Sensors and communication	20 mm (0.8 in.) PSD with line laser Class 2
Sensors and communication	Inclinometer ±0.1°; Bluetooth 4.0 LE
System measuring distance	0,07 to 5 m (0.23 to 16.4 ft)
Measuring errors	<1% ±10 µm
Housing material	Anodized Aluminum front and PC/ABS plastic back cover
Operating time	Up to 8 hours, rechargeable Li-ion battery fast charging: 10 min. charging for 1h usage
Dimensions	52 × 64 × 50 mm (2.1 × 2.5 × 2 in.)
Weight	190 g (0.4 lb)
Operating device	Samsung Galaxy Tab Active 2 and iPad Mini recommended
	iPad, iPod Touch
	iPhone SE, Galaxy S6 or above (all not included)
Software/App update	Apple AppStore or on Google Play Store
Operating system requirements	Apple iOS 9 or Android 9 (and above)
Alignment method	Alignment of horizontal and vertical shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 40掳 rotation), soft foot
Live correction values	Vertical and horizontal
Extra features	Machine library
	QR code reading
	Target values
	Disturbance compensation
	3D machine free view
	Screen rotation on tablets
	Automatic PDF report
Fixture	2 × V-brackets with chains, width 15 mm (0.6 in.)
Shaft diameters	20 to 150 mm (0.8 to 5.9 in.)
Shaft diameters	450 mm (17.7 in.) with extension chains (included)
Max. coupling height *	45 mm (1.8 in.) with standard rods plus 170 mm (6.7 in.) per set of extension rods
Power adapter	Charging via micro USB port (5V)
	Micro USB to USB split charging cable supplied
	Compatible with 5V USB chargers (not included)
Operating temperature	0 to 45 °C (32 to 113 °F)
IP rating	IP 54
Carrying case dimensions	355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
Total weight (incl. case)	2,9 kg (6.4 lb)
Calibration certificate	Supplied with 2 years validity

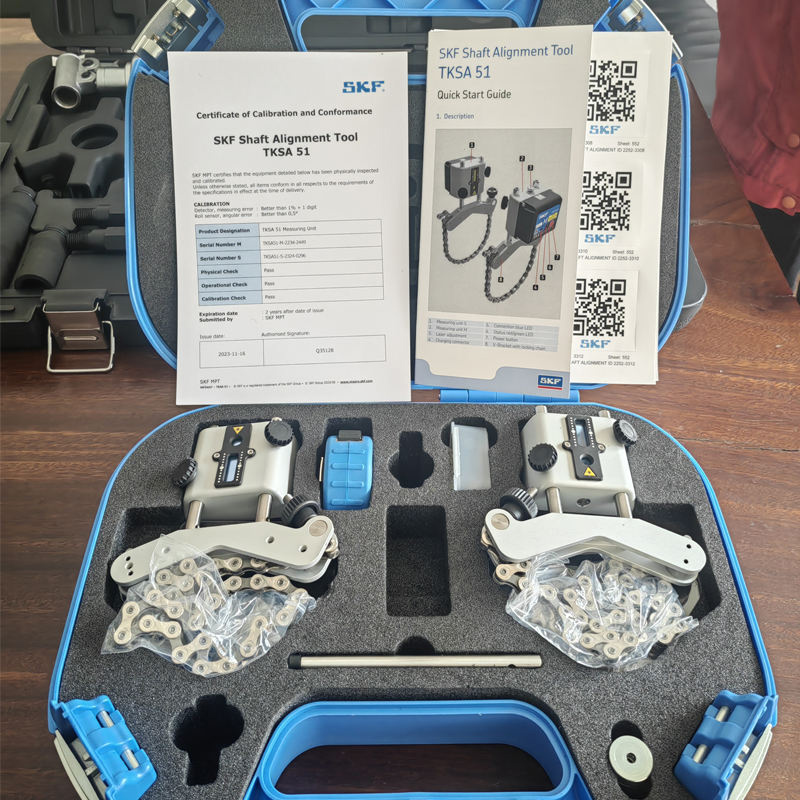

Case content	2 measuring units (M&S)
	2 shaft brackets with chains 480 mm (18.9 in.), threaded rods 80 mm (3.2 in.) and magnets
	4 threaded extension rods 120 mm (4.7 in.)
	2 extension chains 980 mm (38.6 in.)
	Micro USB to USB split charging cable
	Measuring tape
	Printed certificate of calibration and conformance
	Quick start guide (EN)
	2x A5 sheets with 6x QR code stickers per sheet (total of 12x stickers)
	SKF carrying case
