Machine Features:

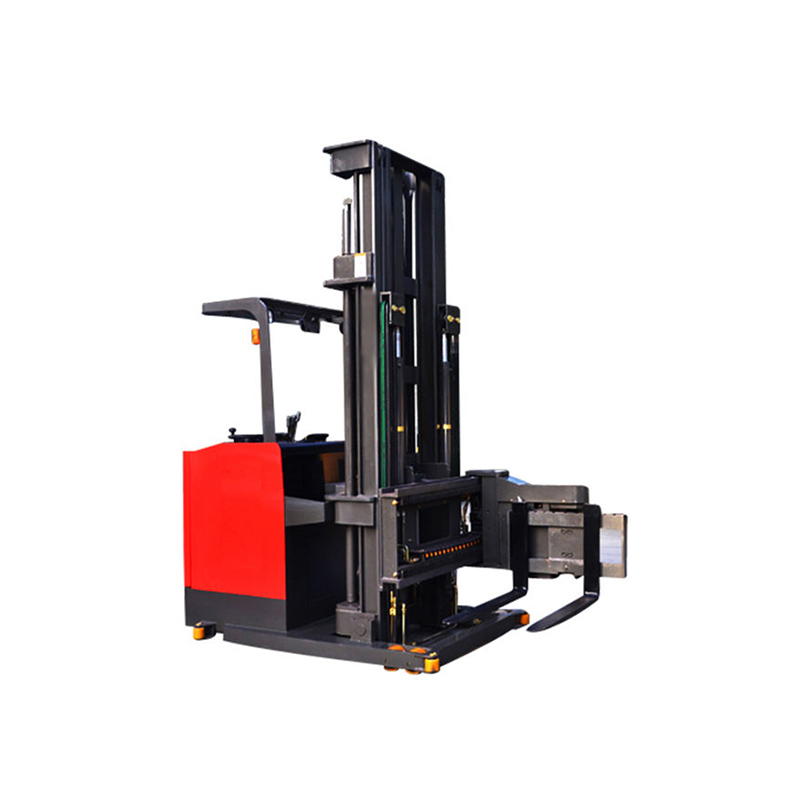

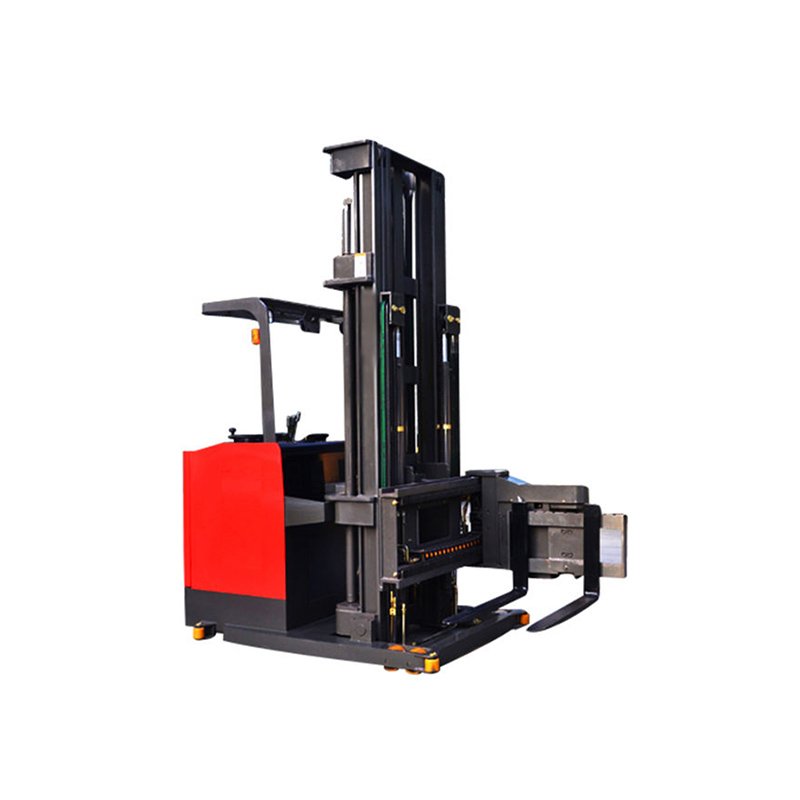

1: 180° Rotating Forks for Narrow Aisles
The forks can rotate 180° horizontally and shift sideways, enabling pallet stacking and retrieval without body turning, minimizing aisle width to as low as 1.5 meters.
2: High Lifting Capacity & Height
Supports 1.5–2 tons of payload and up to 12 meters of lifting height, perfectly suited for high-shelf storage and warehouse optimization.
3: All-AC Drive System
Powered by a full AC motor system with an advanced controller for faster response, low noise, minimal maintenance, and longer service life.
4: Electric Power Steering
Integrated EPS system provides precise, stable, and effortless steering, ensuring smooth maneuverability even in narrow aisle conditions.
5: Reinforced Mast Structure
The large-section mast ensures high rigidity and superior load stability, making the forklift ideal for heavy-duty, high-elevation operations.
6: Energy-Efficient & Low Maintenance
The maintenance-free AC motor and side-pull battery design enable convenient charging, reduce downtime, and lower total operational cost.
Products Specification:
| The specification of 3 way narrow aisle forklift 1 ton 1.5 ton |
| Brand |
| CJLIFT | CJLIFT | CJLIFT | CJLIFT |
| Model |
| CJC10(Duplex mast) | CJC10(Triplex mast) | CJC15(Duplex mast) | CJC15(Triplex mast) |
| Power Type |
| Battery | Battery | Battery | Battery |
| Operating Type |
| Stand on | Battery | Battery | Stand on |
| Loading Capacity | kg | 1000 | 1000 | 1500 | 1500 |
| Load Center | C(mm) | 500 | 500 | 600 | 600 |
| Front Overhang | x(mm) | 657 | 657 | 670 | 670 |
| Wheel Base | y(mm) | 1605 | 1605 | 1700 | 1700 |
| Size |
| Mast Closed Height | h1(mm) | 2595 | 2800 | 2570 | 2817 |
| Free Lift Height | h2(mm) | 0 | 1690 | 0 | 1750 |
| Lift Height | h3(mm) | 3000 | 4500 | 3000 | 4500 |
| Mast Extended Height with Load Backrest | h4(mm) | 4085 | 5584 | 4040 | 5555 |
| Overhead Guard Height | h6mm) | 2260/2300 | 2260/2300 | 2260/2300 | 2260/2300 |
| Stand Board Height | h7(mm) | 355 | 355 | 355 | 355 |
| Overall Length | L1(mm) | 2906 | 2906 | 2985 | 2985 |
| Overall Width | b1(mm) | 1450 | 1450 | 1550 | 1550 |
| Fork Size | l/e/s(mm) | 1000/125/50 | 1000/125/50 | 1200/125/50 | 1200/125/50 |
| Installation Level |
| II A | II A | II A | II A |
| Fork Outside Width | b5(mm) | 265~760 | 265~760 | 265~760 | 265~760 |
| Min. Ground Clearance | m1(mm) | 40 | 40 | 40 | 40 |
| Aisle Width for Pallet 1000x1000mm | Ast(mm) | 1500 | 1500 | 1600 | 1600 |
| Turning Radius | Wa(mm) | 1880 | 1880 | 1980 | 1980 |
| Fuction |
| Driving Speed(load/unload) | km/h | 7.5/8 | 7.5/8 | 7.5/8 | 7.5/8 |
| Lifting Speed(load/unload) | mm/s | 240/290 | 240/290 | 260/300 | 260/300 |
| Lowering Speed, laden/unladen | mm/s | 310/310 | 310/310 | 360/390 | 360/390 |
| Brake Type |
| Mechanical | Mechanical | Mechanical | Mechanical |
| Drive |
| Driving Motor (S2-60min) | kw | 5.5 AC | 5.5 AC | 5.5 AC | 5.5 AC |
| Lifting Motor (S3-15%) | kw | 8.6 AC | 8.6 AC | 12.8 AC | 12.8 AC |
| Battery Voltage/Capacity | V/Ah | 48/390 | 48/390 | 48/480 | 48/480 |
| Battery Weight | kg | 650 | 650 | 765 | 765 |
| Steering System |
| EPS | EPS | EPS | EPS |
| Others |
| Battery Replacement Type |
| Side Pull | Side Pull | Side Pull | Side Pull |
| Lithium Battery Voltage/Capacity | V/Ah | 48/300 | 48/300 | 48/300 | 48/300 |
