Machine Features:
1: High Payload Capacity up to 600 kg
Engineered with a reinforced chassis and advanced load-bearing structure, the robot can transport heavy materials and large components efficiently across production or warehouse floors.

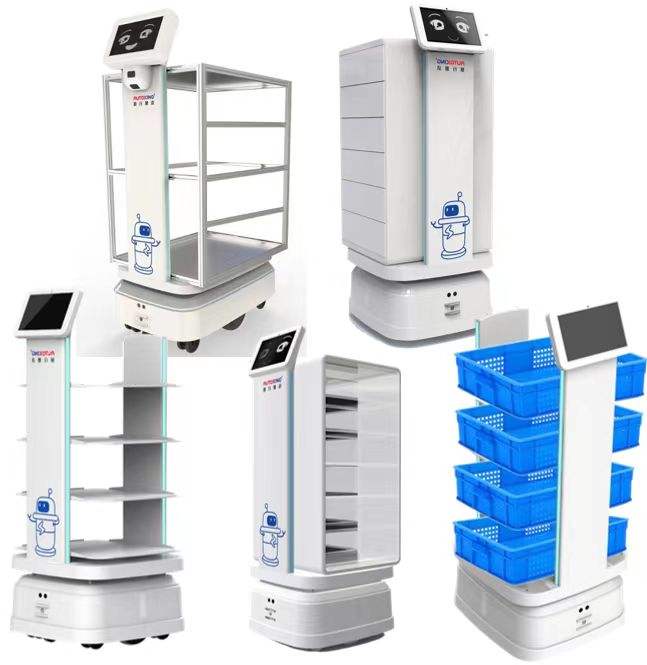

2: Modular & Customizable Structure
The body adopts a modular design, allowing flexible combinations of compartments or trays. Users can customize dimensions, sensors, and control logic to suit different operational needs.
3: Precision SLAM Navigation
Equipped with laser-based SLAM navigation, the robot achieves centimeter-level positioning accuracy, automatically mapping its environment and dynamically avoiding obstacles in real time.
4: Smart Connectivity & Collaboration
Supports multi-robot coordination, remote one-key call, and multi-point delivery. It can communicate with automated systems such as elevators, rolling doors, and conveyor belts for continuous workflow.
5: Efficient Power & Endurance
Powered by a 24 V 22.5 Ah battery, the AGV operates continuously for hours and returns automatically to charge. The system ensures consistent uptime for 24/7 industrial operation.
6: Secondary Development Compatibility
Provides open interface protocols, enabling secondary software and hardware integration. Perfect for developers building customized AGV fleets, MES/WMS connectivity, or factory automation projects.
Products Specification:
| Item | Details |
| Product Type | Industrial AGV / AMR Logistics Robot |
| Application | Factory automation, warehouse logistics, production lines, hospitals, shopping malls, hotels |
| Power System | 24 V battery-driven |
| Battery Capacity | 22.5 Ah lithium battery |
| Charging Time | 5 h |
| Navigation Method | SLAM laser navigation |
| Max Load Capacity | 600 kg |
| Velocity | 0.1 – 1.5 m/s |
| Min. Passing Width | 70 cm |
| Slope Capability | 8° |
| Obstacle Height | 20 mm |
| Dimension (L×W×H) | 650 × 950 × 1240 mm |
| Tray Size (L×W×H) | 810 × 940 × 350 mm |
| Structure | Modular, customizable box combination |
| Handling Modes | Automatic lifting / manual unloading |
| Control | Remote one-key call, multi-point scheduling |
| Intelligence | Supports elevator, automatic door, and gate interaction |
| Mobility | 360° rotation, precise path planning |
| Development Support | Open protocol for secondary development |
| Warranty | 1 year |
