Machine Features:

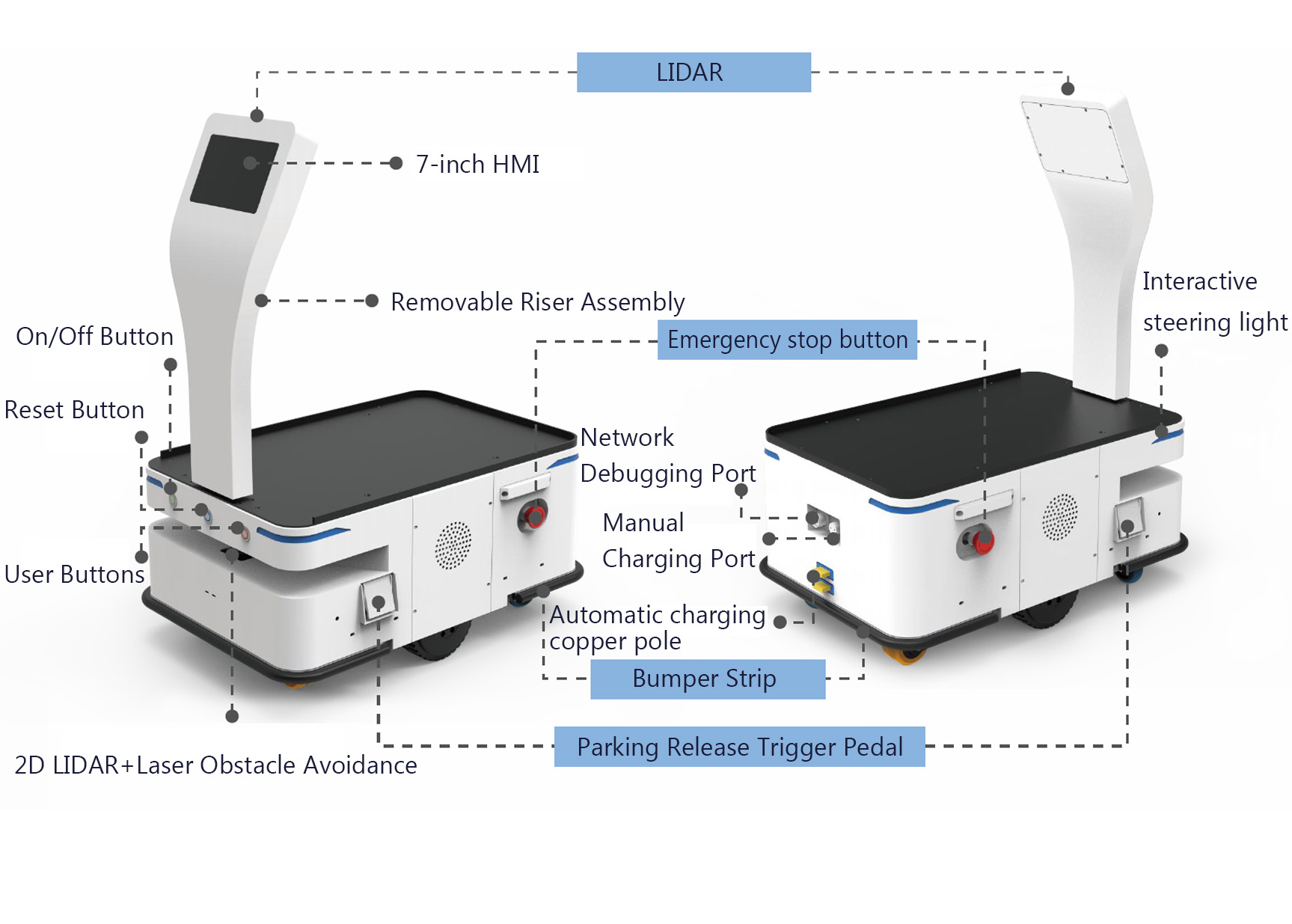

1: High-Precision Laser SLAM Navigation
Equipped with industrial-grade SLAM laser sensors, the AMR achieves ±10 mm positioning accuracy and real-time mapping, ensuring smooth autonomous navigation and stable operation even in complex warehouse layouts.
2: Compact, Agile Structure

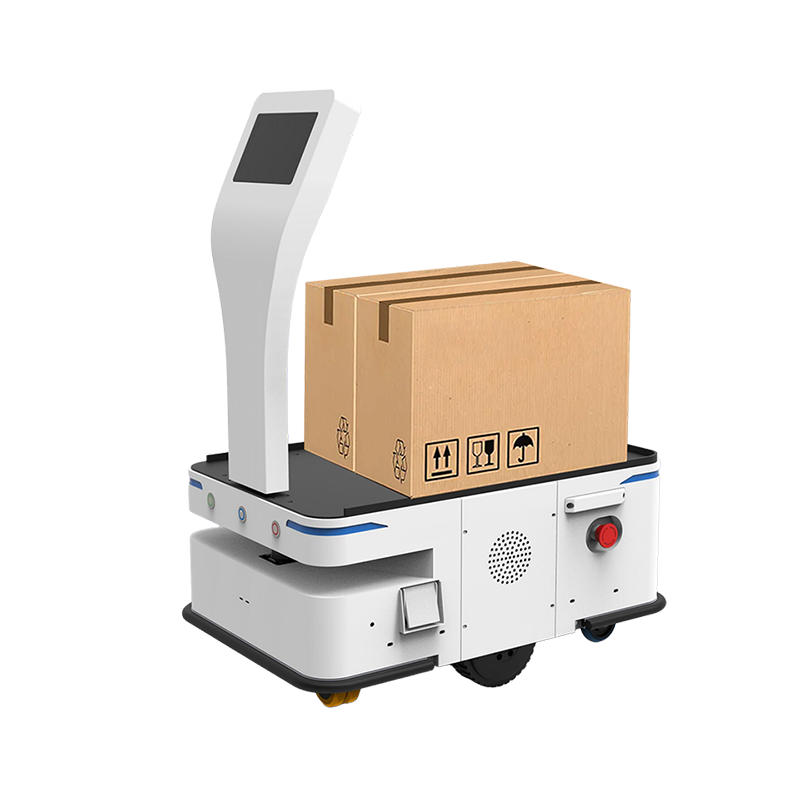

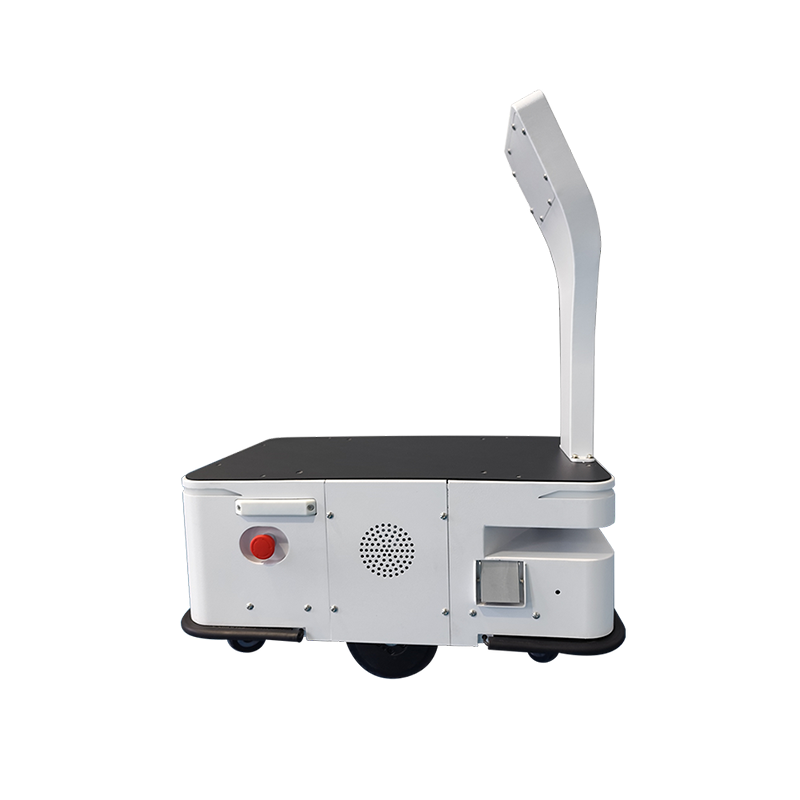

With a size of only 695 × 450 × 935 mm, the robot is optimized for narrow corridors and dense shelf environments. It can rotate in place and move under trolleys to lift and transport goods efficiently.
3: Smart Vision Protection System
The robot automatically detects and avoids obstacles during operation using visual and laser sensing technology, ensuring safety and reliability in dynamic industrial environments.
4: User-Friendly Interactive Screen
Equipped with a digital touch interface, it supports visualized operation, one-touch start, and status monitoring — easy for operators to deploy and control.
5: Open Interface for System Integration
The RCS (Robot Control System) can connect with WMS / MES systems, enabling task scheduling, route planning, and real-time data synchronization for smart factory applications.
6: Automatic Charging & Flexible Deployment
When battery levels are low, the AMR automatically returns to the charging dock for recharging, minimizing downtime and ensuring continuous 24/7 operation.
Products Specification:
| Item | Details |
| Product Type | Autonomous Mobile Robot (AMR) |
| Application | Warehousing, logistics, factories, hospitals, industrial automation |
| Navigation Method | Laser SLAM navigation |
| Positioning Accuracy | ±10 mm |
| Driving Direction | Forward / Reverse / Left / Right / In-place rotation |
| Vehicle Size | 695 × 450 × 935 mm |
| Rated Speed | 0–1.2 m/s (adjustable by section) |
| Load Capacity | 80 kg |
| Voltage | 24 V |
| Power Supply | Battery-powered with auto-charging support |
| Material | Metal chassis |
| Operation Interface | Digital touch screen |
| System Interface | RCS interface, expandable with WMS / MES systems |
| Weight | 70 kg |
| Warranty | 1 year |
| Protection | Vision-assisted obstacle avoidance |
| Control Mode | Fully autonomous with manual override |
| Mobility | Compact chassis for narrow aisles |
| Use Cases | Material handling, trolley transport, goods transfer, automated logistics |
