Machine Features:
1. High-Quality Alloy Sealing Knife
Teflon anti-stick coating prevents adhesion, burning, or film residue
Strong sealing with excellent heat conduction performance
Ensures clean, firm, and long-lasting seals
2. Rapid Packaging Size Adjustment
Width & height adjusted via handwheels
No mold replacement needed for different product sizes
Length is automatically detected by sensors
3. Supports Mixed Product Packaging
Different product sizes can be packed together
Ideal for promotion bundles / combo sales
4. Smart Safety & Monitoring
Alarm for film break or film accumulation
Vertical photoelectric sensor for thin items
Optional closing conveyor for small products
Optional transparent object sensor
Products Specification:
| MODEL | RL-400 |
| Sealing Type | L-Sealing |
| Installed Power | 380V/50-60HZ/3Phase |
| Packing Capacity | Max. 35 packs per minute (depends on product size) |
| Sealing Height | 150MM |
| Packing Width | 350MM |
| Conveyor Speed | Variable, 26M/Min |
| Film Thickness | 12-30 Micron (Minimum-Maximum) |
| Packing Size | Width + Height < 400mm, Length + Height < 480mm |
| Film Type | Center Folded POF/ PVC Film |
| Max Film Roll Size | 530MM (Width) X 280MM (Outer Diameter) |
| Power Consumption | 1.5 KW |
| Working Height | 780-850 MM |
| Air Pressure | 0.5MPA (5 BAR) |
| MODEL | RYT-4020 |
| Power Supply | 380V/50-60HZ/3Phase |
| Oven Size | 1200MM (L), Entrance 450(W) X 250(H) MM |
| Conveyor Speed | Variable, 40 M/Min |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Rated Power Consumption | Max. 7 KW |
| Working Height | 780 - 850 MM |
| Machine Material | Carbon Steel |

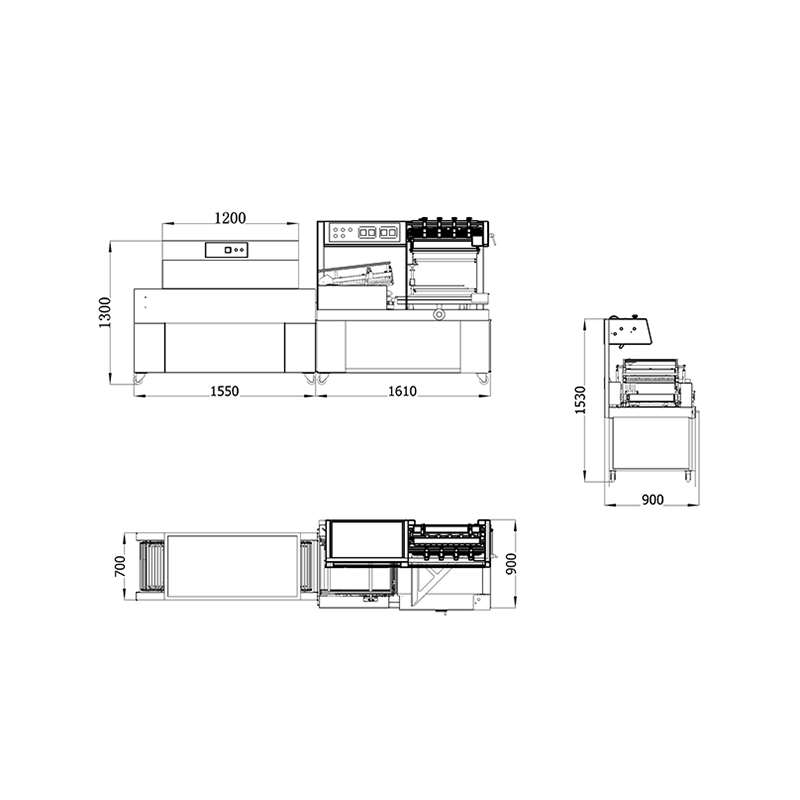

| Tunnel Machine Dimensions | 1550 X 700 X 1300 MM |
| Weight (Net/ Gross) | 490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel) |

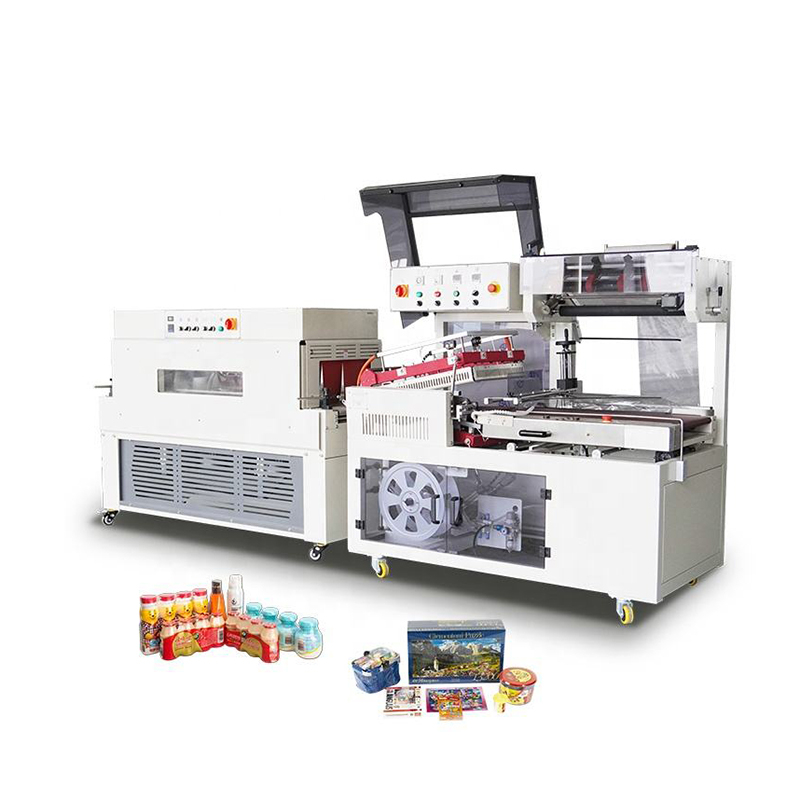

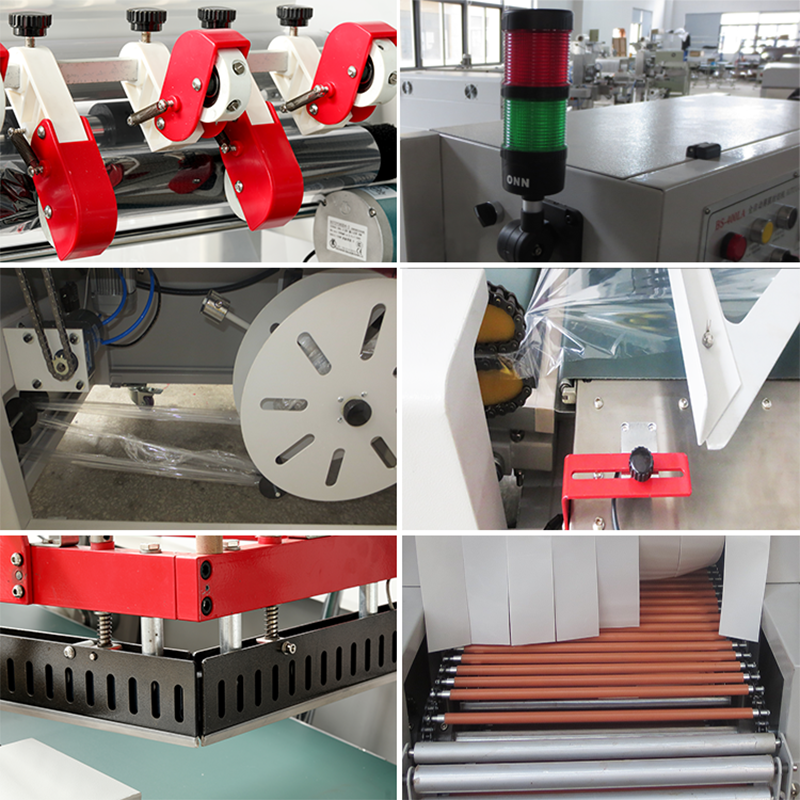

Products Pictures:
