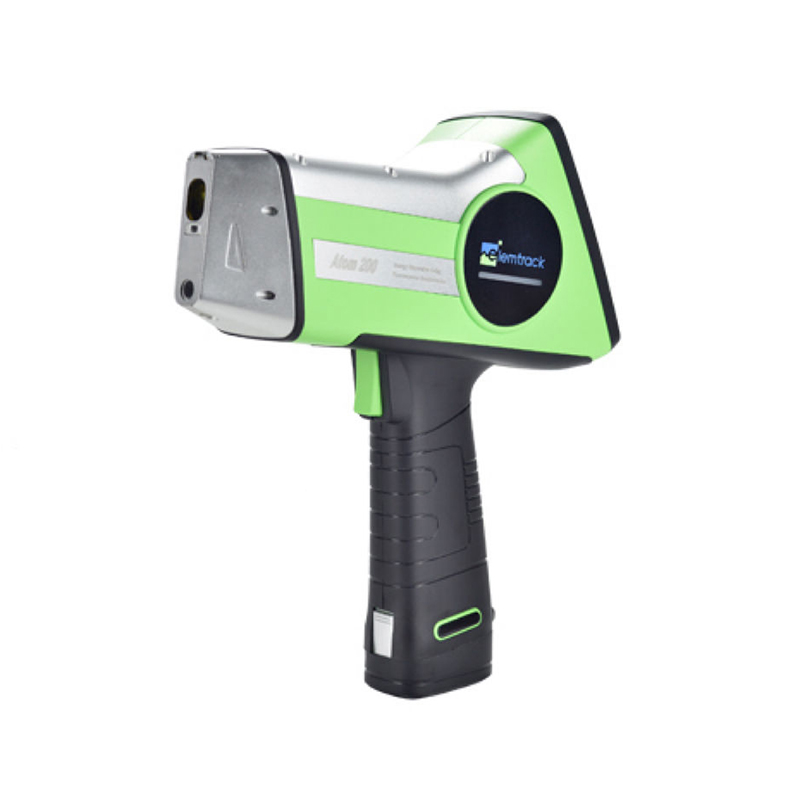

handheld xrf analyzer for gold and alloy identification with high precision

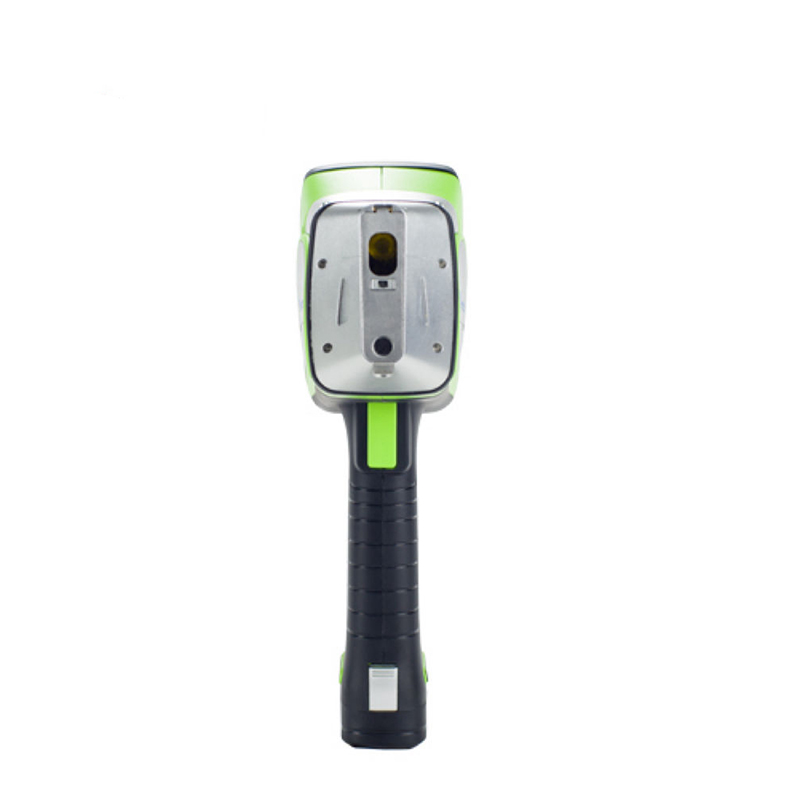

portable gold purity tester with SDD detector and 50 kV x-ray source

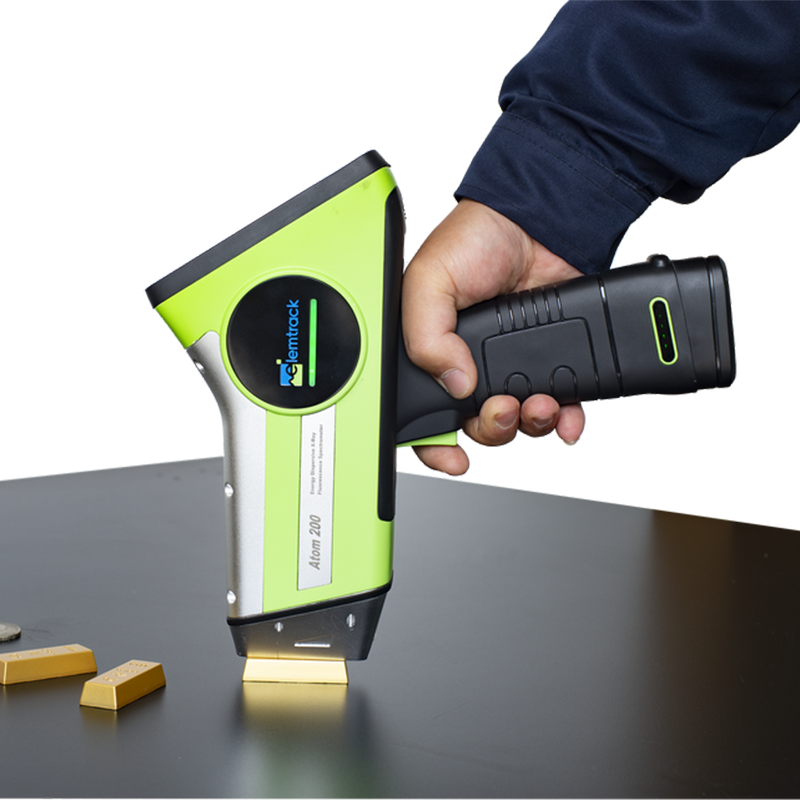

alloy metal composition analyzer with dual camera and long life battery

Easy-to-Use Handheld XRF Analyzer ATOM 200 Electronic Gold & Alloy Tester XRF Gold Scanner

The ATOM 200 Handheld XRF Analyzer is a compact, high-performance device designed for fast, accurate detection of gold, precious metals, and alloys. Equipped with an advanced SDD/Si-PIN detector, 50 kV X-ray tube, and low-noise signal processing system, it ensures laboratory-grade results in the field. With an industrial Linux system, powerful 4-core processor, built-in grade library, and dual HD cameras, this portable scanner delivers precise quantitative analysis for jewelry testing, metal recycling, manufacturing, and mineral exploration. Its lightweight 1.5 kg design, hot-swappable battery, and extensive connectivity options make it ideal for continuous on-site inspection.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• Wide elemental detection range

Measures elements from Magnesium(Titanium) to Uranium with ppm-level sensitivity.

• High-speed, high-accuracy XRF performance

Uses SDD/Si-PIN detectors and a 50 kV X-ray source for precise metal and alloy identification.

• Rugged and portable design

Lightweight 1.5 kg body with excellent heat dissipation, anti-radiation structure, and field-ready durability.

• Smart industrial operating system

Powered by a 4-core CPU and 24 GB memory, running stable industrial Linux with built-in alloy grade library.

• Hot-swappable long-life battery

8+ hours continuous operation with battery power display; supports rapid replacement without shutdown.

• Dual camera imaging support

HD main camera + optional environmental camera for recording test scenarios and samples.

• Full connectivity integration

WiFi, Bluetooth, mobile APP remote control, GPS/Beidou navigation, and multi-interface power sync display.

• Air pressure compensation (optional)

Ensures stable measurement accuracy across varying environments.

Products Specification:

Item	Specification
Product Type	Handheld XRF Analyzer
Model	ATOM 200
Working Environment	-10°C ~ 50°C
Machine Size	27.5 × 24.5 × 8.2 cm
Machine Weight	1.5 kg (with battery)
Measurable Elements	Mg(Ti) ~ U
Measurement Range	ppm ~ 99.99%
Detector Type	SDD or Si-PIN Detector
X-ray Source	50 kV / 200 μA, programmable adjustable
CPU	4-core 1.8 GHz
Memory	24 GB
Operating System	Industrial-grade Linux
Analysis Software	Alloy analysis software with built-in grade library
Battery	Hot-swappable; 8+ hours working time; power display
Signal Processing	Low-noise pulse signal processing system
Cameras	HD dual camera (environment camera optional)
Navigation	GPS & Beidou (optional)
Connectivity	WiFi, Bluetooth, mobile APP control
Additional Features	Built-in air pressure compensation (optional), multi-interface power sync display
Optical Path	Ultra-ST X-ray optical path
Design Features	Lightweight, anti-radiation, strong heat dissipation
