Machine Features:
Professional Alloy Brand Database
Built-in library covering 380 alloy grades and expandable up to 600+ types; ideal for cross-reference between international material standards.
Ultra-Low Detection Limit
Uses advanced fitting algorithms and enhanced FP technology to provide highly accurate metal composition results without switching testing modes.
Non-Destructive Testing (NDT)
Performs complete analysis with zero damage to samples; works reliably under extreme conditions such as high/low temperature, humidity, dust, and poor lighting.
Intelligent & Customizable Software
Supports password protection, personalized reporting, and company-logo-embedded result output to meet professional QC requirements.
Portable & Easy Operation
Compact, lightweight, and fully operable with one button; supports remote control for field use and multi-environment applications.
Products Specification:
| Category | Specification |
| Weight | 1.6 kg（with battery） |
| Size | 254 × 79 × 280 mm |
| Detection Range | Mg–U |
| Excitation Source | 50kV / 200μA adjustable; W / Ag / Rh target (optional) |
| Detector | Si-PIN Detector / SDD Detector |
| Display | 4.3” industrial-grade resistive touch screen; Auto-brightness |
| Data Storage | Built-in 32GB storage |
| Connectivity | USB; Remote setting & maintenance |
| Heat Dissipation | T-slot radiator |
| Safety System | DoubleBeam™ auto sample sensing for radiation protection |
| Protection | Waterproof, dustproof, shockproof case |
| Safety Accessories | Dedicated safety rope |
| Battery Type | Intelligent battery with MSBUS monitoring |
| Battery Life | Approx. 8 hours per battery |
| Battery Transport | Complies with air transport regulations |
Application Fields:
Suitable for rapid on-site material identification, alloy sorting, PMI testing, QA/QC, scrap recycling, metal refining, petrochemical plants, power stations, aerospace components, pharmaceutical equipment, and heavy industrial inspections.

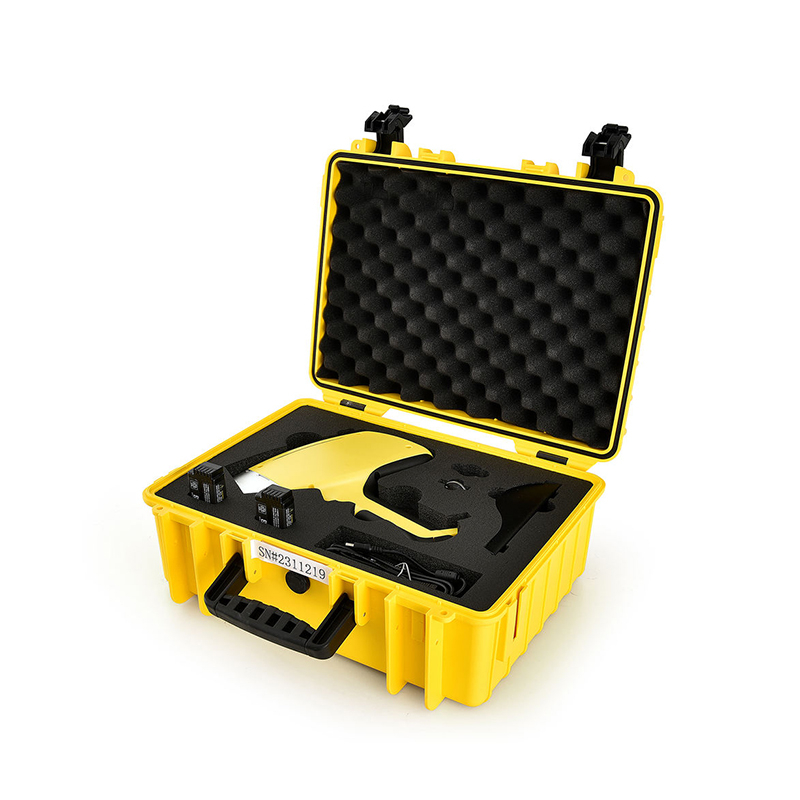

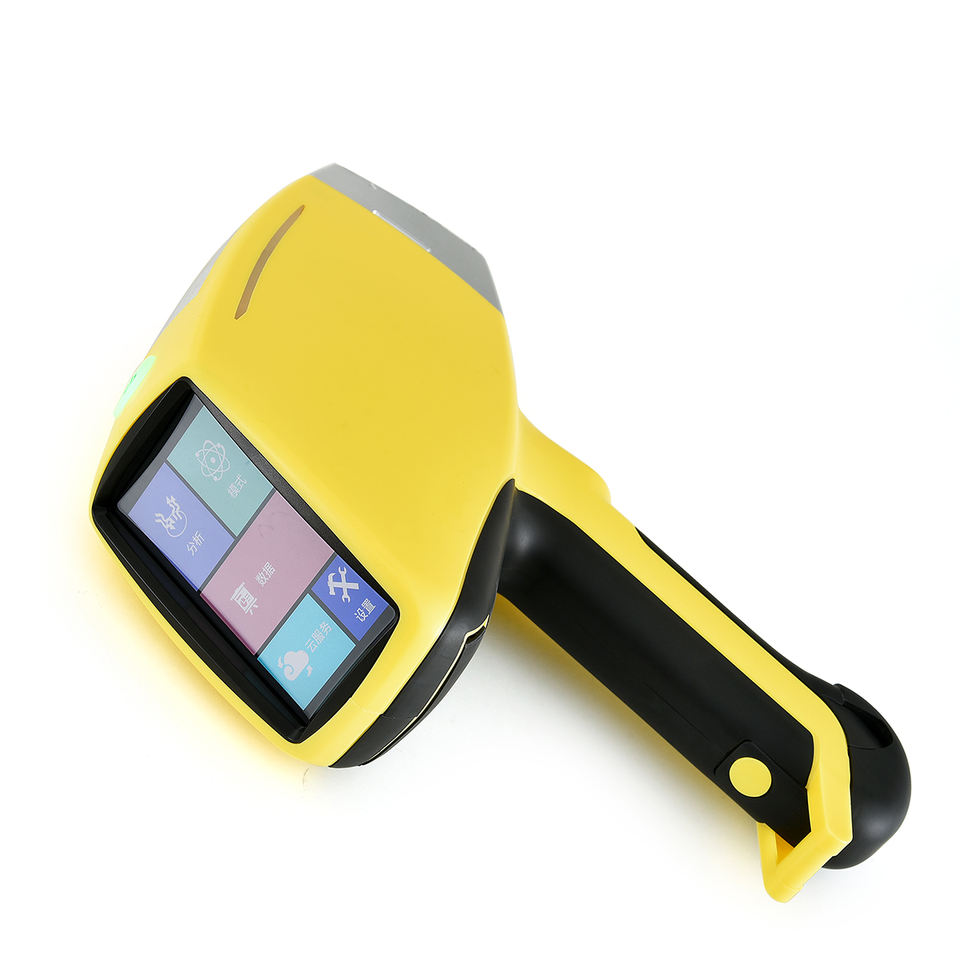

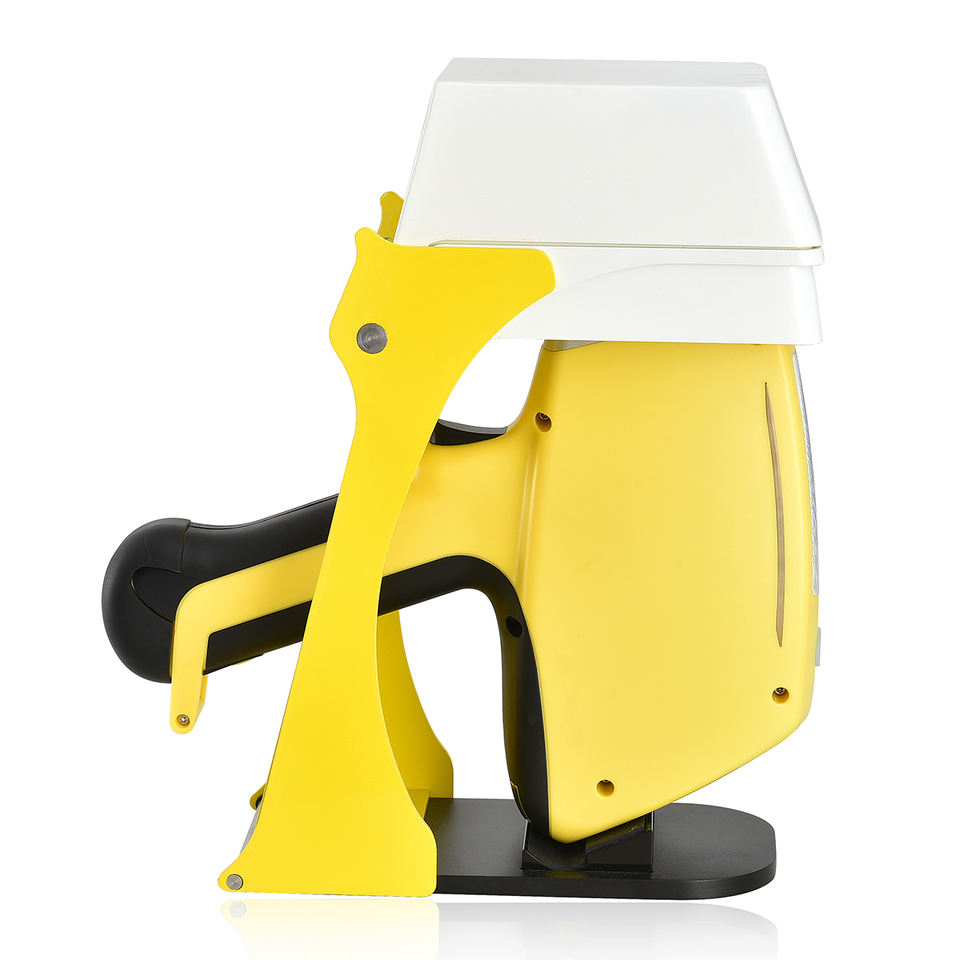

Products Pictures:
