Portable Raman spectrometer for fast chemical identification with 785nm laser and HD touchscreen

Handheld Raman analyzer for field substance detection with high accuracy spectral scanning

Compact Raman detection device with 200–4000 cm-1 range for chemical analysis

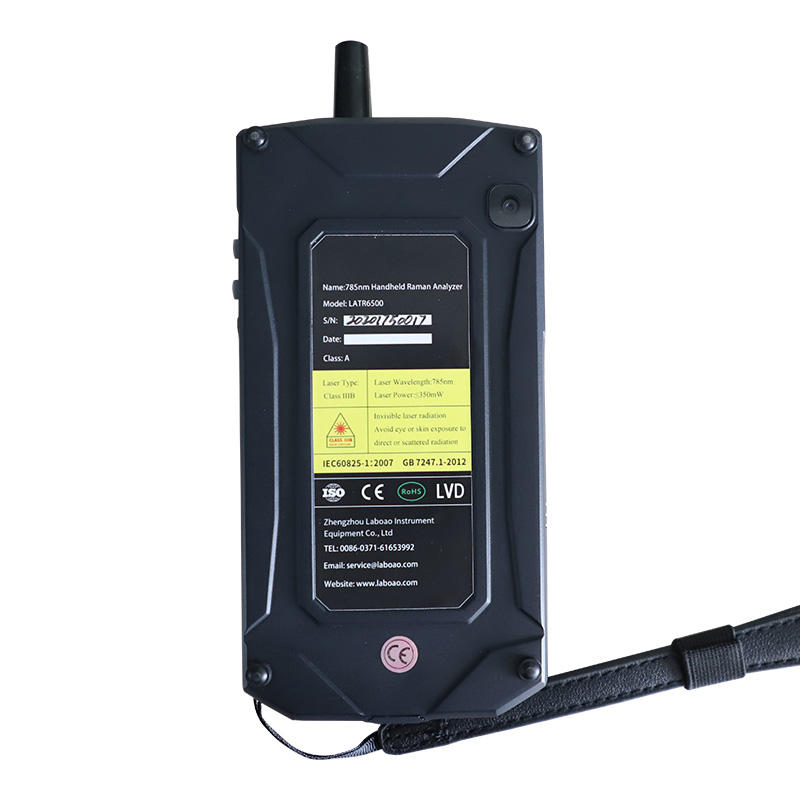

Portable Raman Spectrometer for Quick Substance Identification

This portable Raman spectrometer is designed for rapid, non-destructive substance identification across a wide range of applications, including field inspection, public safety, laboratories, and industrial environments. Equipped with a 785 nm excitation laser, 200–4000 cm⁻¹ spectral range, and a 10 cm⁻¹ resolution, it delivers precise analytical performance in a compact 450 g handheld form. The Android operating system, 5.5” HD touchscreen, rich connectivity options, and exportable spectral reports enhance usability, making it an efficient tool for on-site chemical detection and evidence documentation.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• Rapid, Non-Destructive Substance Identification

Uses Raman spectroscopy to analyze materials without altering or damaging the sample, ideal for sensitive or valuable substances.

• Advanced Algorithm for Mixtures and Complex Materials

Built-in intelligent algorithms improve recognition accuracy for multi-component samples, providing deeper analytical insight.

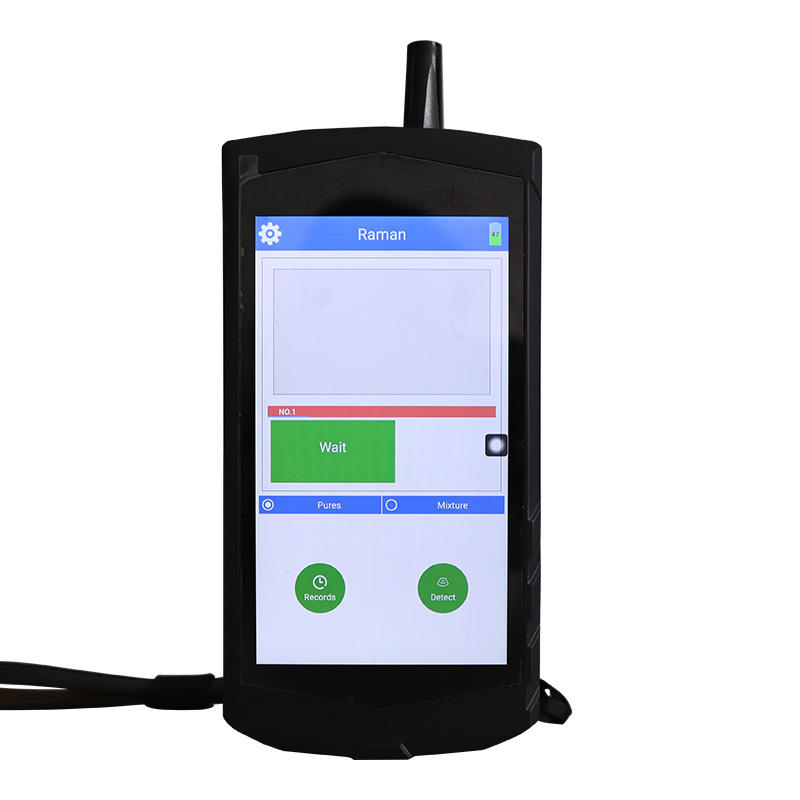

• HD Touchscreen with Intuitive Interface

5.5-inch high-resolution capacitive screen ensures clear visualization of spectral data and easy navigation during field use.

• Dual Cameras for Evidence and Documentation

Supports detailed image capture alongside spectral analysis, enhancing traceability and record integrity during inspections.

• Full Connectivity for Seamless Data Transfer

Equipped with WiFi, Bluetooth, GSM, and USB Type-C, enabling flexible data input (including barcode/QR code) and secure report export.

Products Specification:

Specification	Details
Model	LATR-6500
Operating System	Android
Excitation Wavelength	785 ± 0.5 nm
Wavenumber Range	200–4000 cm⁻¹
Resolution	10 cm⁻¹
Touch Screen	5.5", 1920×1080
Overall Size	6.7” × 3.1” × 1.2”
Weight	450 g
Interface	WiFi, USB Type-C, Bluetooth, GSM
Report Output	Detection results, spectral data, evidence photos
Battery Life	4–6 hours continuous operation
Charging Type	USB Type-C
Operating Temperature	−20°C ~ 50°C
