Machine Features:
1. Easy Operation
Lightweight handheld design with ergonomic grip, ideal for field work.
5-inch HD rotating touchscreen ensures clear visibility under all lighting.
Sealed waterproof/dustproof housing for harsh environments.
Supports direct surface measurement or fixed-stand continuous testing.
2. High Performance
Fast, non-destructive detection with results in just 1 second.
Simultaneous analysis of up to 40 elements including Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Pb, Au, Ag, etc.
Ultra-near optical path allows detection of lighter elements (Mg, Al, Si, P, S) without helium.
Accuracy comparable to benchtop XRF systems.
3. Strong Battery Life
Standard 9000 mAh battery supports 12 hours operation.
Optional 27000 mAh “super battery” supports up to 3 days.
Hot-swap internal battery prevents shutdown during replacement.
Comes with car charger and universal AC adapter.
4. High-End Configuration
Integrated miniature X-ray tube, Fast-SDD detector, DSP processor, and intelligent multichannel module.
High count rate up to 500K cps for faster, more accurate spectral analysis.
12-group collimator/filter configuration for multiple application scenarios.
Built-in high-resolution camera for precise positioning of the tested area.
5. Safety Protection
Intelligent tri-color LED status indicator (power/test/fault).
Auto-induction: X-ray will not activate without proper sample contact.
Thickened shielding structure reduces scattering and radiation.
Linked safety lock ensures controlled X-ray shutdown.
6. Intelligent Software
Professional alloy/ore software with one-key testing.
Dual operation modes: User Mode & Expert Mode for advanced analysis.
Internal intensity correction compensates for sample geometry, density, and structure differences.
Supports quick curve selection and customized multi-element analysis.
Products Specification:
| Item | Specification |
| Product Type | Handheld XRF Analyzer |
| Analytical Method | Energy Dispersive X-Ray Fluorescence (EDXRF) |
| Element Range | Atomic number 12–92 (Mg to U) |
| Simultaneous Detection | Up to 40 elements |
| Content Range | ppm to 99.99% |
| Detection Time | 1–60 seconds (1s fast result) |
| Detector | SDD or Fast-SDD Detector |
| Detector Resolution | As low as 128 eV |
| Excitation Source | 50 kV / 200 μA miniature X-ray tube |
| Collimator | 4.0 mm / 2.0 mm, 6 automatic filters |
| Display | 5-inch LCD touch screen, 1080×720 |
| Video System | 500W pixel high-resolution camera |
| CPU | 1 GHz |
| System Memory | 1 GB |
| Storage | Up to 32 GB (standard 4 GB) |
| Connectivity | GPS, WiFi, Bluetooth |
| Data Transmission | SPI digital transmission; waterproof mini-USB |
| Test Objects | Solid, liquid, powder |
| Detection Limit | 1–500 ppm |
| Safety | Multiple protections, automatic X-ray shutdown |
| Operating Temperature | -20°C ~ +50°C |
| Operating Humidity | ≤90% |
| Power Supply | Rechargeable lithium battery, 9000 mAh / optional 27000 mAh |
| Battery Life | Up to 12 hours (standard) / 3 days (optional) |
| Dimensions | 244 × 90 × 330 mm |
| Weight | 1.7 kg |
| Warning System | 3-color LED (green: power on; red: testing; yellow: fault) |
| Accessories | Protection case, dual batteries, charger, radiation shield, SD card, card reader |
| Optional Accessories | Large battery, stand, Bluetooth printer, mill, press machine, sieves |

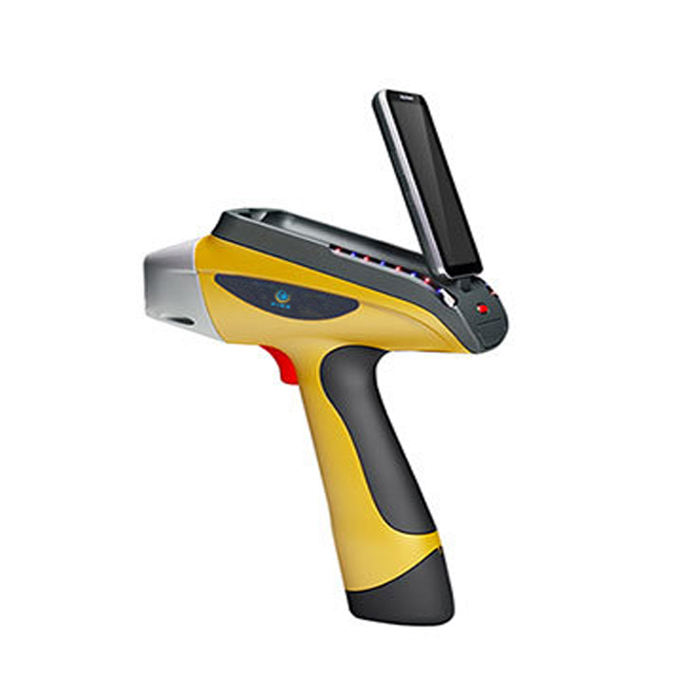

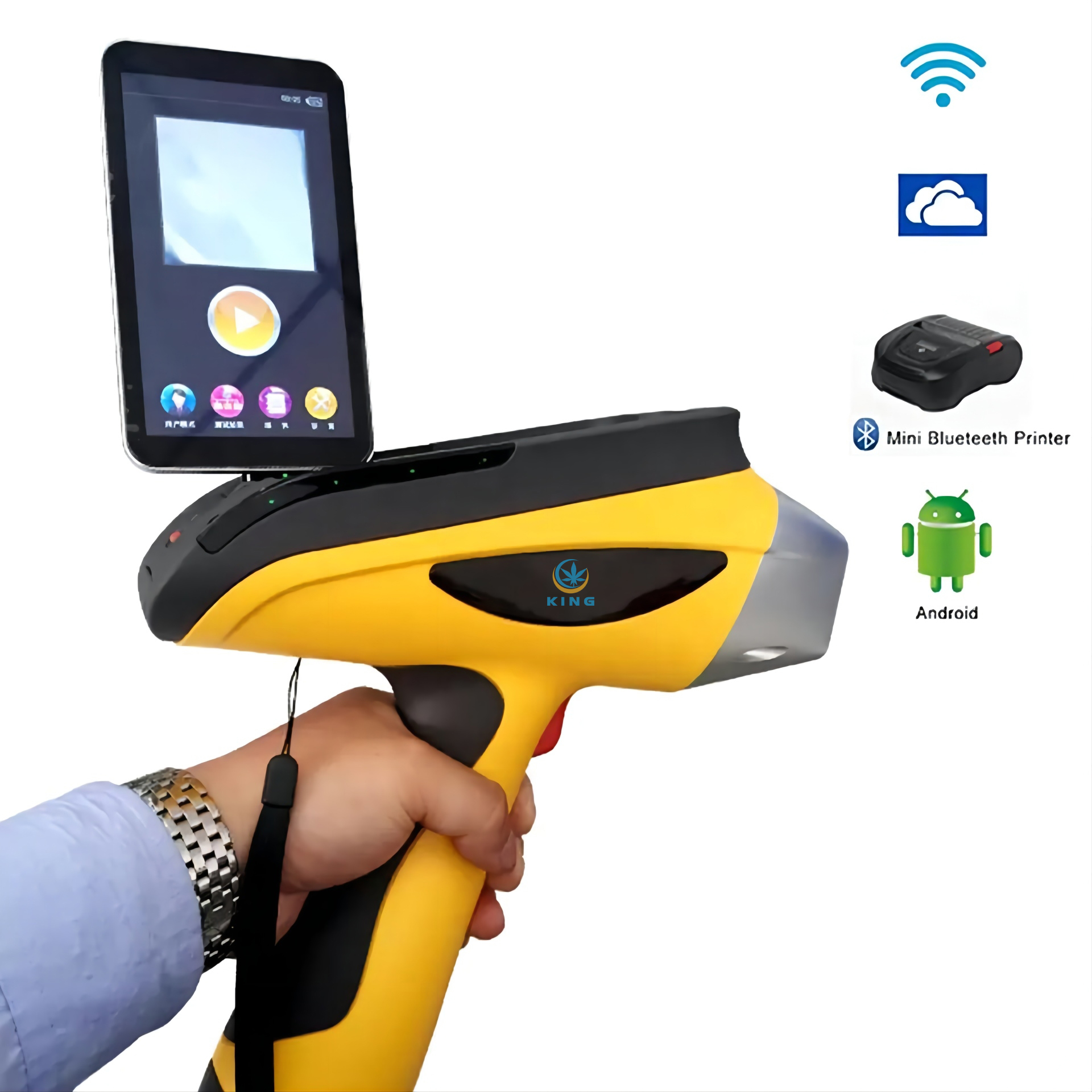

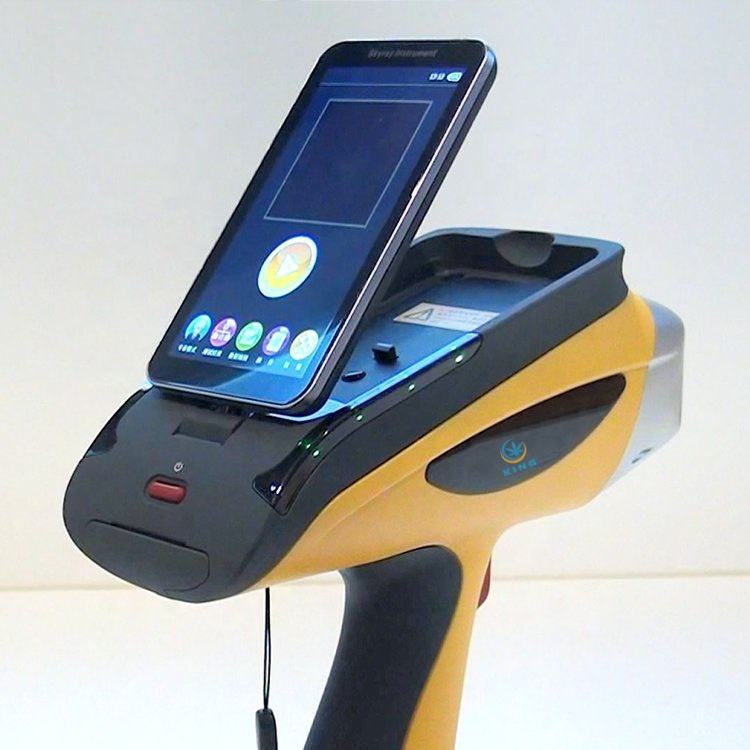

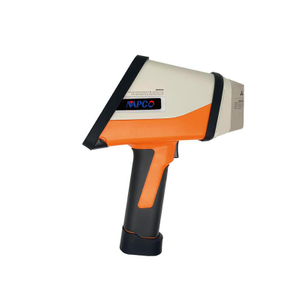

Products Pictures:
