Machine Features:
• Ultra-micro sample capability
Requires as little as 0.5 μL, suitable for rare or precious sample testing.
• Wide spectral bandwidth
Covers 190–1100 nm for UV–VIS–NIR detection applications.
• High measurement accuracy
1 nm wavelength accuracy and 0.002 Abs resolution ensure reliable analytical results.
• Fast testing with no warm-up
Measures in just 5 seconds and supports direct testing without preheating.
• Dual-platform optical design（for expanded models）
Compatible with ultramicro and cuvette optical paths for flexible testing.
• Low power consumption & compact size
Energy-efficient 24 W operation, portable structure, and easy laboratory integration.
• PC control for professional workflows
Flexible data processing, software control, and stable operation.
Products Specification:
| Item | Spcification |
| Model | BK-CW1000 |
| Minimum Sample Capacity | 0.5 μL |
| Ultromicro Optical Distance | 1 mm / 0.2 mm |
| Whole Wavelength | 190–1100 nm |
| Scanning Wavelength | 190–850 nm |
| Wavelength Accuracy | 1 nm |
| Wavelength Resolution | ≤0.3 nm |
| Absorbance Accuracy | 2% |
| Absorbance Resolution | 0.002 Abs (1 mm) |
| Absorbance Range | 0.02–300 (10 mm) |
| Test Accuracy | 0.1–5 Abs. ±0.1; 5–80 Abs. ±2% |
| Test Time | 5 s |
| Detector | 3648-pixel linear CCD array |
| Light Source | Xenon flash lamp |
| Sample Test Platform Material | 304 stainless steel & quartz |
| Standard Accessories | Driver software (1 pc), Power line (1 pc), Power adapter (1 pc) |
| Consumption | 24 W |
| Power Supply | AC110/220V ±10%, 50/60 Hz |
| External Size (WDH) | 200 × 130 × 136 mm |
| Package Size (WDH) | 310 × 310 × 310 mm |
| Net Weight | 2.5 kg |

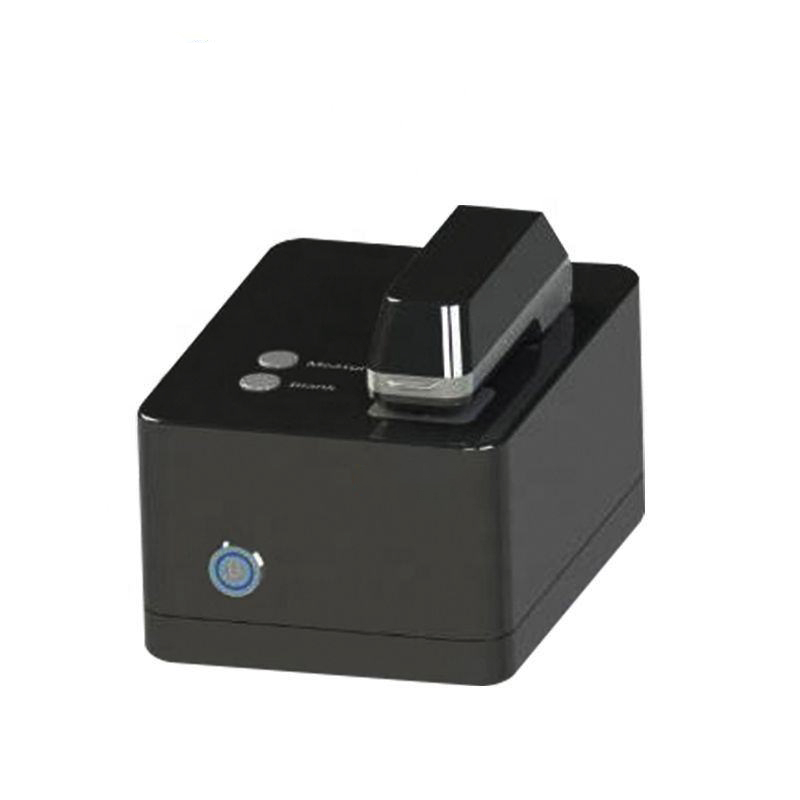

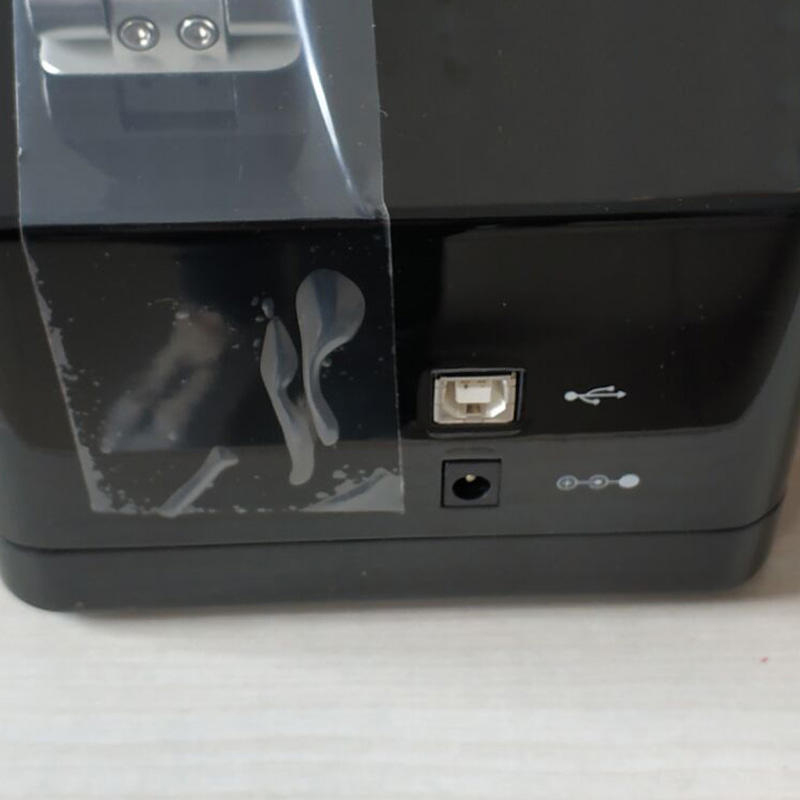

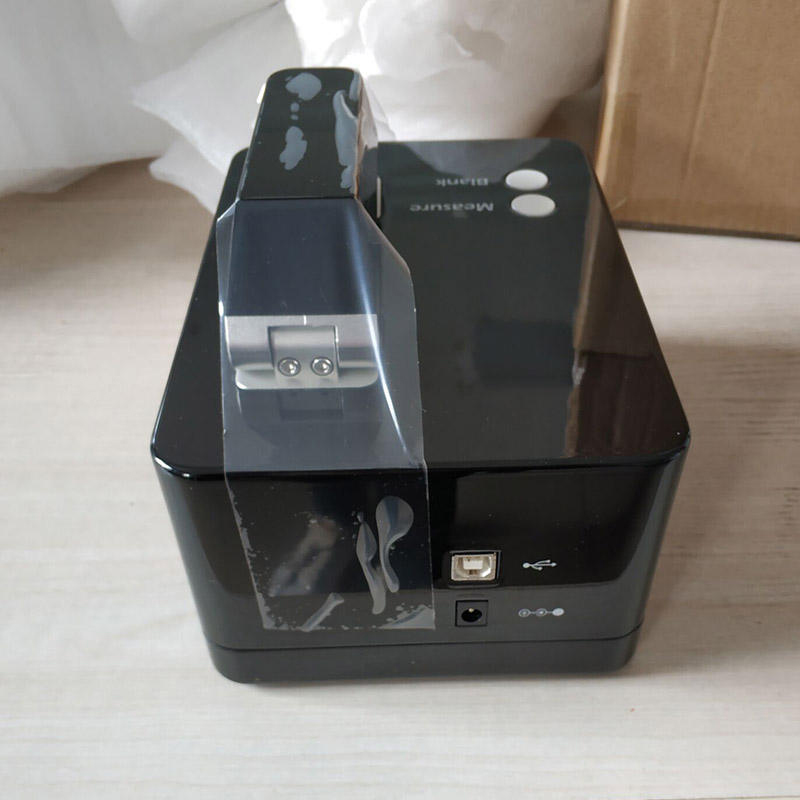

Products Pictures:
