Machine Features:
Efficient Carton Opening:
Automatically completes carton opening, forming, bottom folding, and sealing at 10–12 boxes per minute.
Wide Carton Compatibility:
Supports a large range of carton sizes, suitable for both small and large packaging operations.

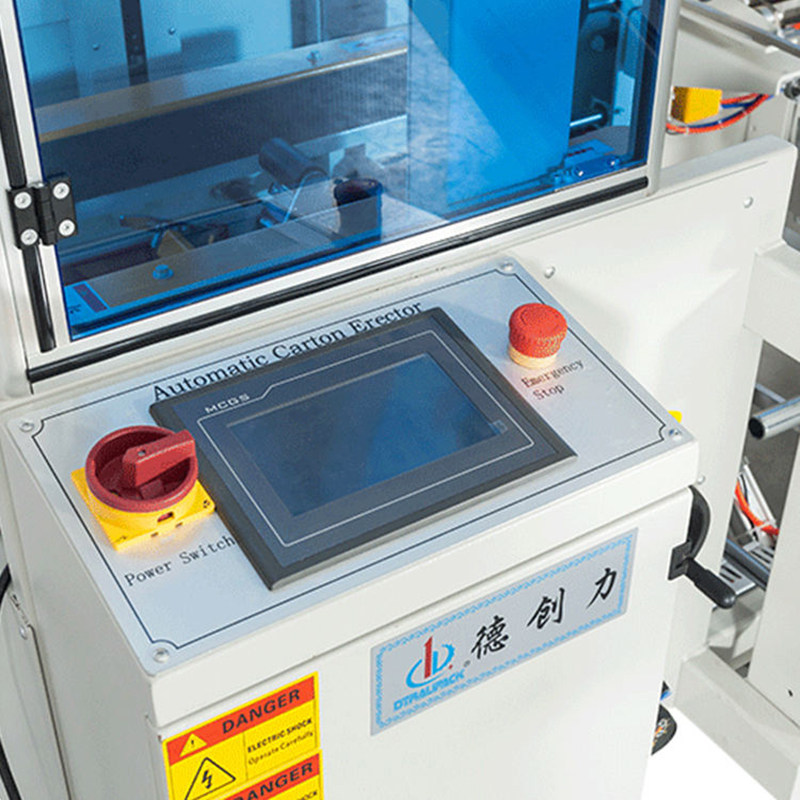

User-Friendly Control Interface:
Touchscreen HMI with visual operation guide and emergency stop for safer, easier use.
Stable & Durable Components:
Equipped with high-quality pneumatic parts and precision motion modules for long service life.
Reliable Suction System:
Strong suction cups ensure stable carton pickup and prevent carton dropping.

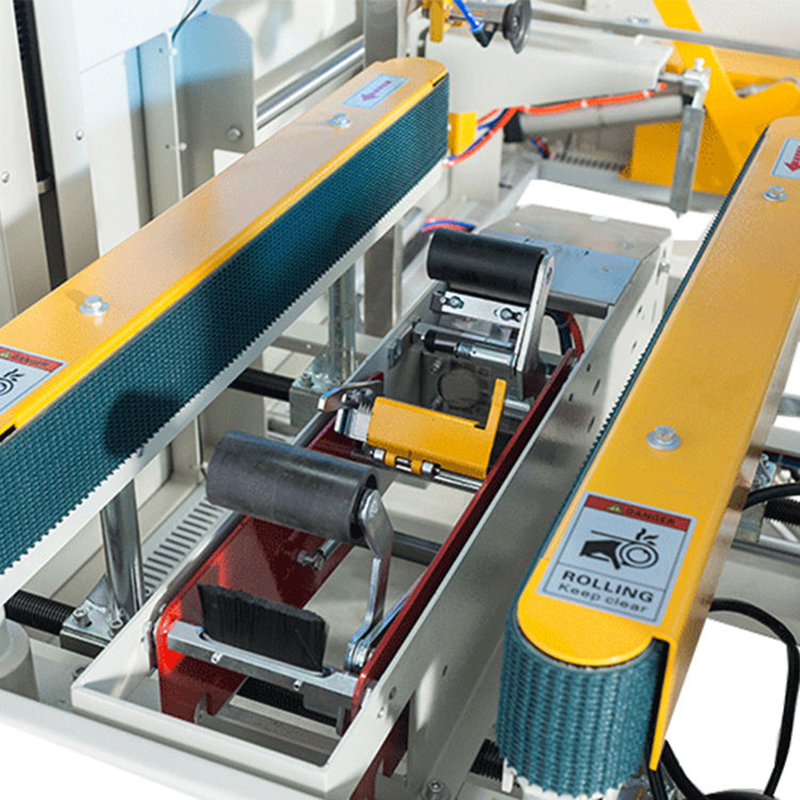

Smooth Sealing Mechanism:
High-quality tape sealing unit and durable conveyor belts ensure neat, wrinkle-free tape application.
Products Specification:
| Item | Specification |
| Model | DPK-50 |
| Unpacking Capacity | 10–12 boxes/min |
| Carton Storage | 100 pcs（1000 mm） |
| Carton Size Range | L 250–700 mm / W 200–500 mm / H 150–500 mm |
| Power Supply | 220V, 200W |
| Required Air Pressure | 6 kg/cm³ |
| Air Consumption | 450 NL/min |
| Machine Dimensions | 2300 × 2000 × 1700 mm |
| Machine Weight | 600 kg |
| Function Summary | Automatic carton opening, forming, and bottom tape sealing |
Products Pictures:
