Machine Features:
1. Fully Automated Workflow
Completes the entire process of carton opening, product insertion, and sealing without manual intervention, significantly reducing labor costs and human error.
2. High-Speed Production
Supports up to 24 cartons per minute, suitable for high-demand packaging lines.
3. Advanced Control System
High-end PLC control with multiple servo motors
Independent debugging mode
Real-time production statistics, machine speed, and fault messages
4. Side-Push Packing Mechanism
Ensures stable, aligned, and secure product arrangement inside cartons, preventing deformation or damage.
5. Multi-Level Safety Protection
Includes:
Carton quality and reserve monitoring
Fault detection and alarms
Automatic shutdown & emergency stop protection
6. Smooth and Reliable Sealing Quality
Carton sealing is neat, firm, and maintains the integrity of the packaging appearance.
7. Quick Adjustment for Different Carton Sizes
Tool-assisted adjustment with wrenches, rockers, and handwheels for fast changeover between carton specifications.
Products Specification:
| Item | Details |
| Model | CPM-15 |
| Theoretical Max Capacity | 300 boxes/hour |
| Actual Production Speed | ≤24 cartons/min (depending on packing quantity) |
| Carton Size Range | Min: 220×150×120 mm；Max: 500×400×400 mm |
| Power Supply | AC380V, Three-phase, 50Hz |
| Power Consumption | 7.5 kW |
| Air Pressure | 0.6 MPa |
| Air Consumption | ＜1 m³/hour |
| Machine Dimensions | 5200×1600×2400 mm |
| Machine Weight | 2500 kg |
| Main Materials | Aluminum alloy, carbon steel, stainless steel |

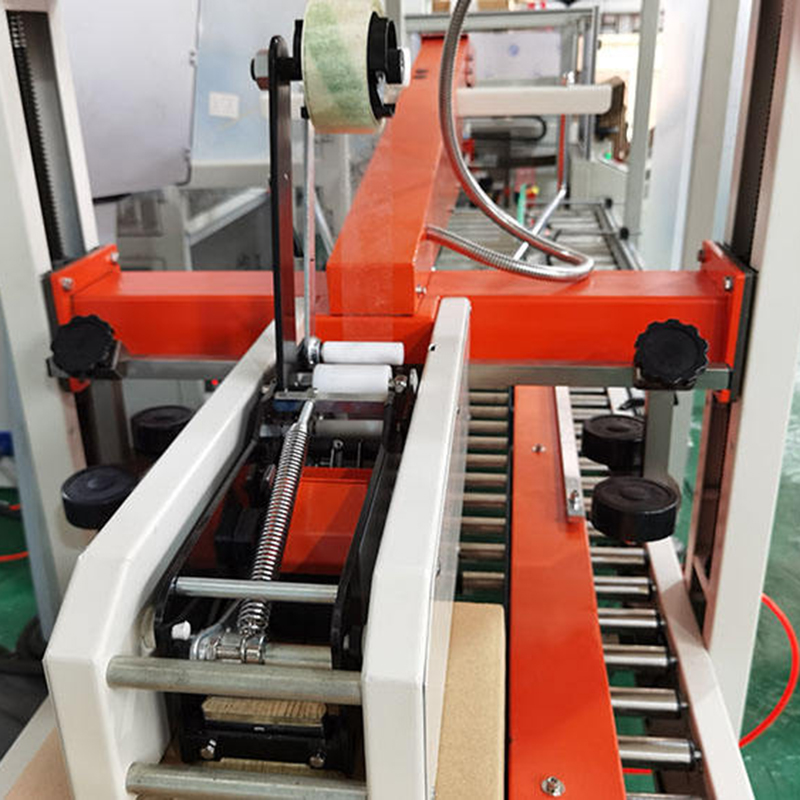

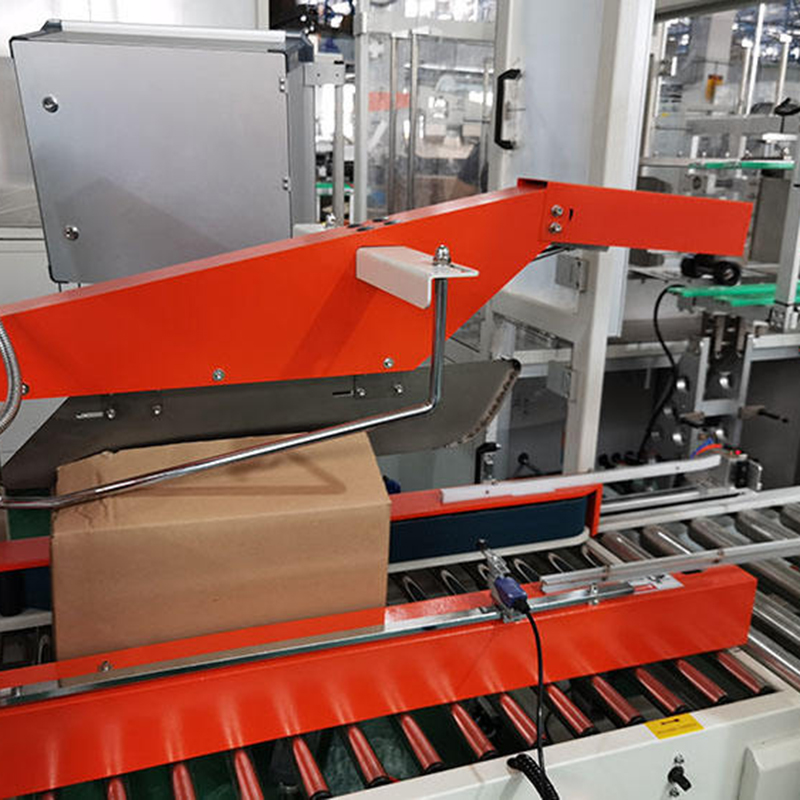

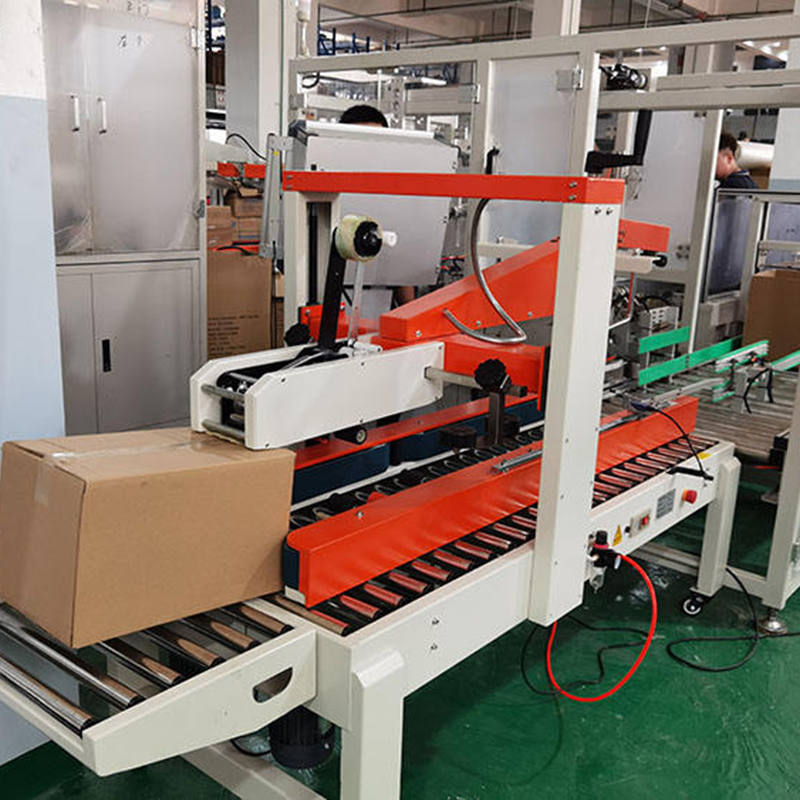

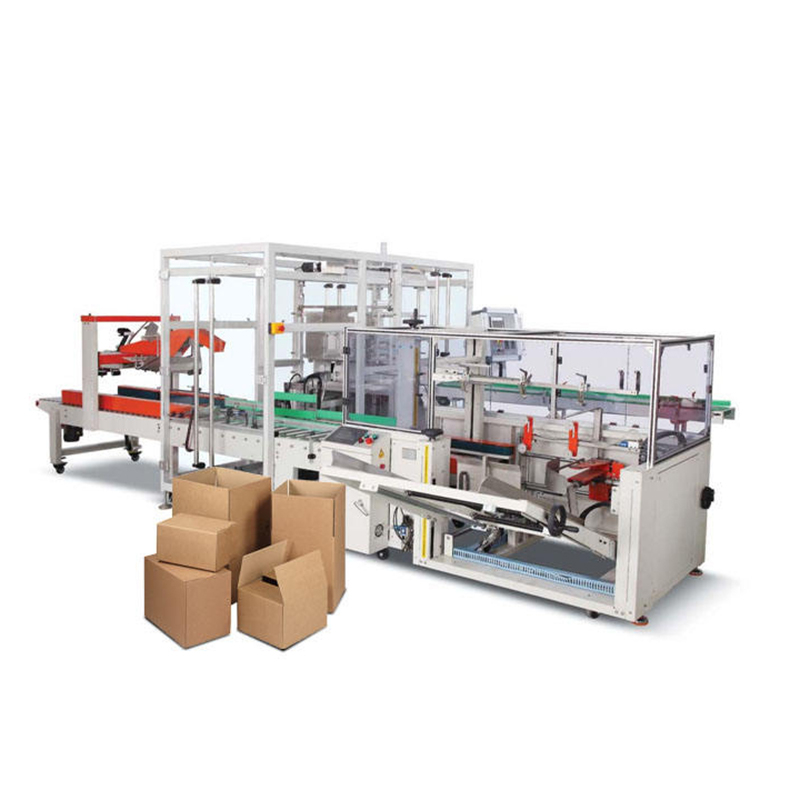

Products Pictures:
