Machine Features:
Automated Forming & Sealing:
Completes opening, forming, and bottom sealing of cartons at 8–10 boxes per minute.
High Safety Protection:
Equipped with overload protection, safety doors, and intelligent alarms for missing tape or missing cartons.
Large Carton Storage:
Holds approximately 50 unformed cartons at once and supports continuous replenishment without stopping the machine.
Low Power Consumption:
Operates efficiently with only 400W, reducing energy cost for high-volume packaging lines.
Easy Operation & Maintenance:
Designed with a user-friendly structure, simple adjustment, and fast maintenance access.
Stable Performance:
Smooth forming action with consistent tape sealing quality suitable for e-commerce packaging standards.
Products Specification:
| Item | Specification |
| Power Supply | 220V, 50Hz, 400W |
| Air Pressure | 5–6 kg/cm² |
| Air Consumption | 200 NL/min |
| Machine Dimensions | 2075 × 1270 × 1475 mm |
| Machine Weight | 450 kg |
| Tape Width | 4.8–7.2 cm |
| Carton Forming Speed | 8–10 boxes/min |
| Table Height | 650 mm |
| Storage Capacity | Approx. 50 cartons (depends on carton thickness) |

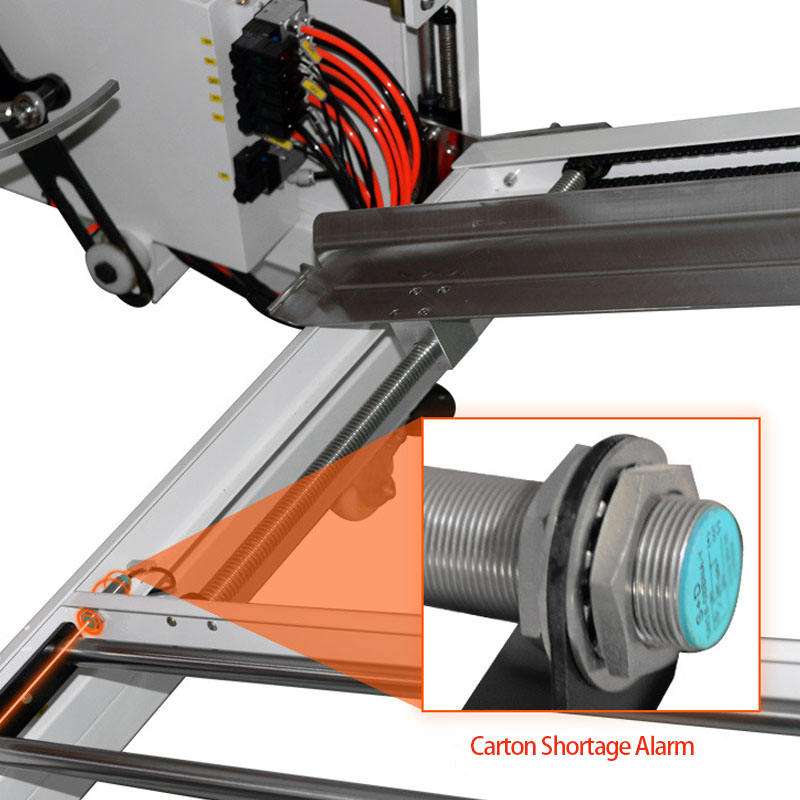

| Alarm Functions | No tape alarm, no box alarm |
| Safety Features | Overload protection, safety door |

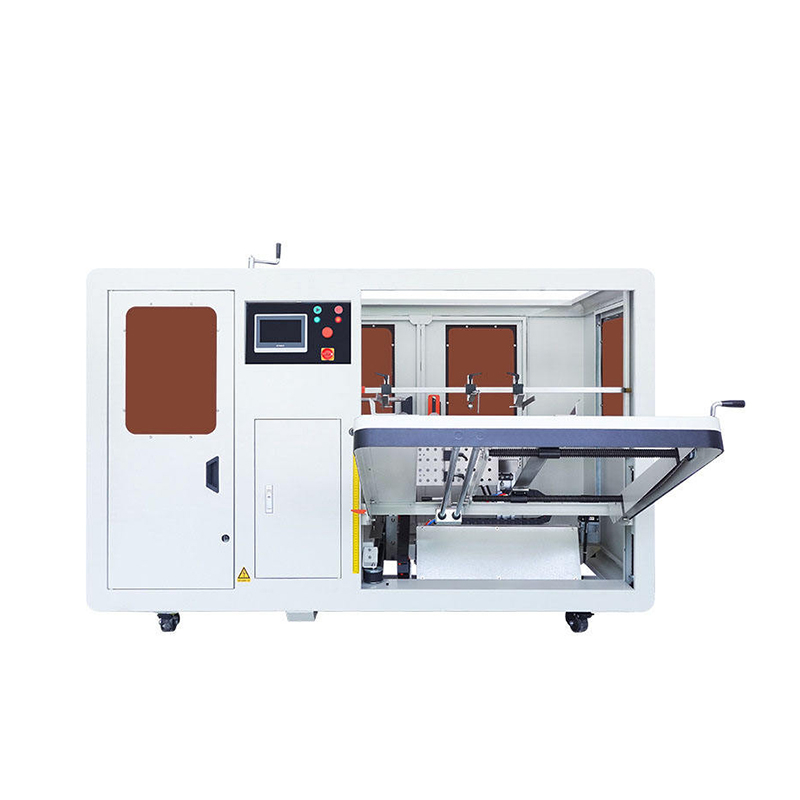

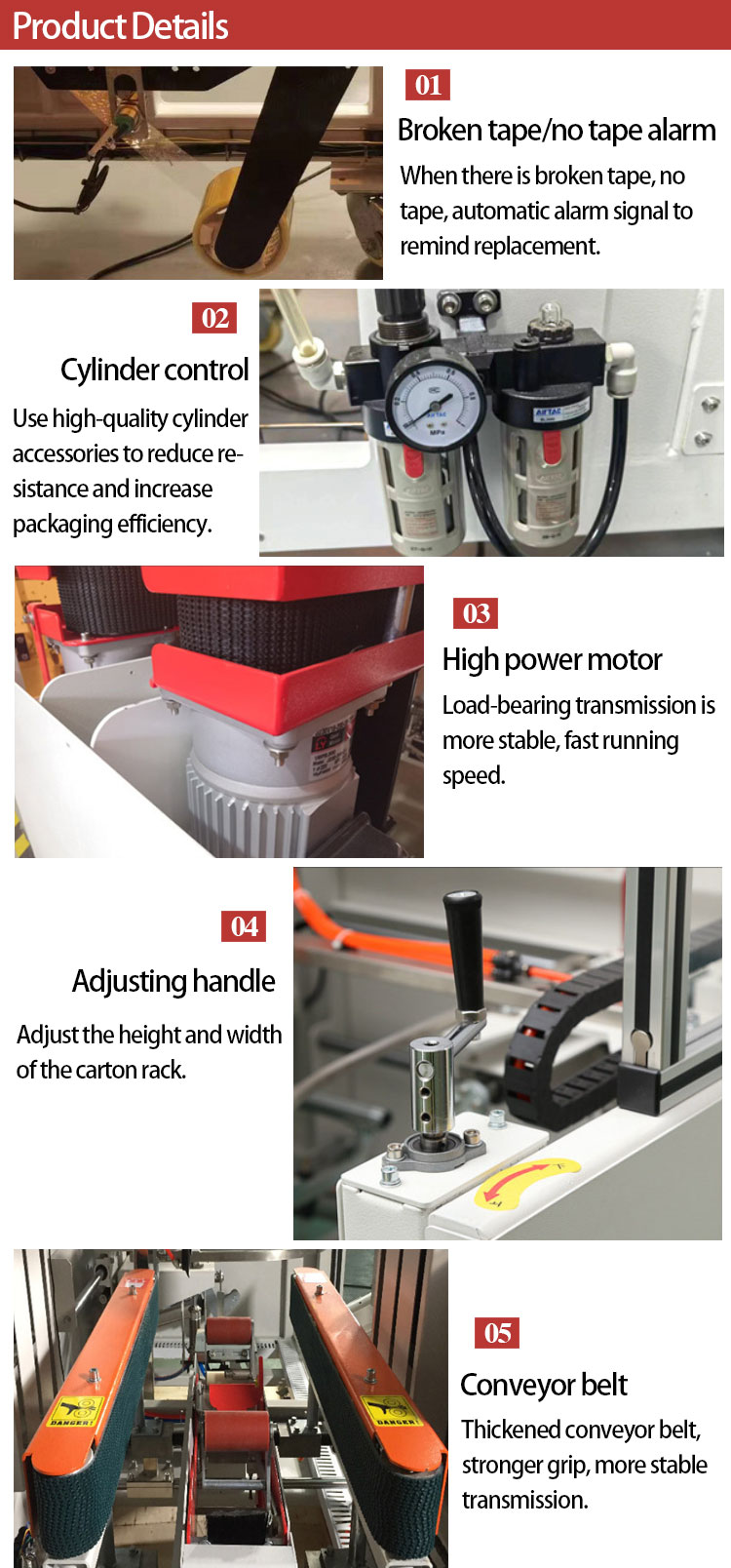

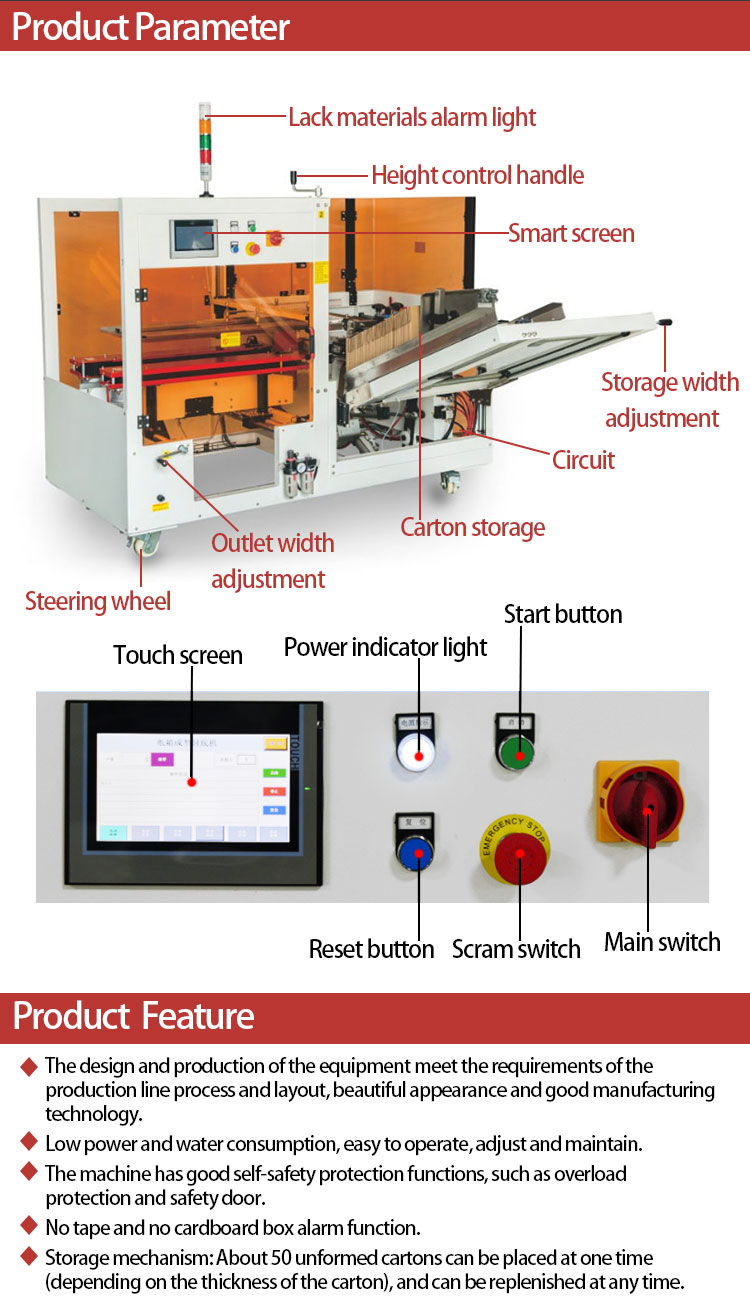

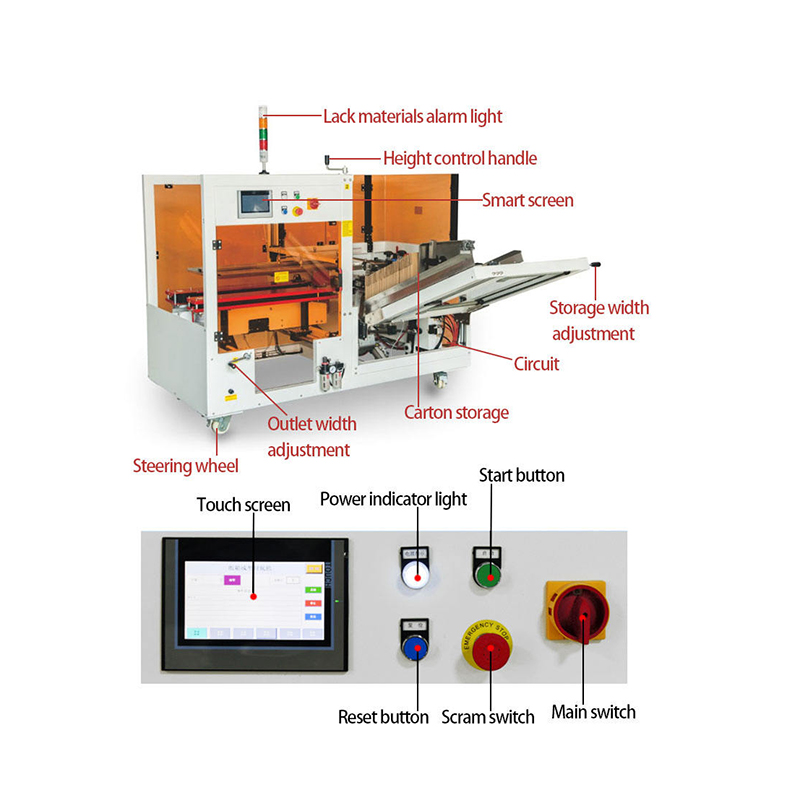

Products Pictures:
Machine Features:
Automated Forming & Sealing:
Completes opening, forming, and bottom sealing of cartons at 8–10 boxes per minute.
High Safety Protection:
Equipped with overload protection, safety doors, and intelligent alarms for missing tape or missing cartons.
Large Carton Storage:
Holds approximately 50 unformed cartons at once and supports continuous replenishment without stopping the machine.
Low Power Consumption:
Operates efficiently with only 400W, reducing energy cost for high-volume packaging lines.
Easy Operation & Maintenance:
Designed with a user-friendly structure, simple adjustment, and fast maintenance access.
Stable Performance:
Smooth forming action with consistent tape sealing quality suitable for e-commerce packaging standards.
Products Specification:
| Item | Specification |
| Power Supply | 220V, 50Hz, 400W |
| Air Pressure | 5–6 kg/cm² |
| Air Consumption | 200 NL/min |
| Machine Dimensions | 2075 × 1270 × 1475 mm |
| Machine Weight | 450 kg |
| Tape Width | 4.8–7.2 cm |
| Carton Forming Speed | 8–10 boxes/min |
| Table Height | 650 mm |
| Storage Capacity | Approx. 50 cartons (depends on carton thickness) |
| Alarm Functions | No tape alarm, no box alarm |
| Safety Features | Overload protection, safety door |
Products Pictures:
