GY42180 Horizontal Double-Column Gantry Band Sawing Machine
GY42180 Horizontal Double-Column Gantry Band Sawing Machine GY42180 Horizontal Double-Column Gantry Band Sawing Machine

loading

GY42180 Horizontal Double-Column Gantry Band Sawing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The Double-Column Gantry Band Saw features advanced hydraulic speed control for precise cutting operations and a scientifically designed guide block structure that significantly extends the saw blade's lifespan. It adopts a dual-column, dual-cylinder gantry structure to ensure stable and high precision cutting. Workpieces are hydraulically clamped for ease of operation. Additionally, it includes a workpiece lifting device and a mobile platform-style worktable. Variable frequency speed control of the saw blade accommodates cutting requirements for various materials.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Products Specification

Type GY42180
Capacity mm 1800x1800
inch 70X70
Blade Speed mpm 20~70
fpm 65~230
Blade Size mm 80×1.6
inch 3-1/8x0.063
Blade Motor KW 18.5
HP 25


Products Configuration

Optional Configurations:
lifter
idle roller conveyor
laser beam
hydraulic shuttle table
top vice
chip conveyor

Products Features

1: Hydraulic speed control ensures precise cutting operations.


2: Scientifically designed guide block structure prolongs saw blade lifespan.


3: Dual-column, dual-cylinder gantry structure ensures stability and high precision cutting.


4: Stable cutting with high precision meets rigorous cutting requirements.


5: Hydraulic workpiece clamping for convenient operation.

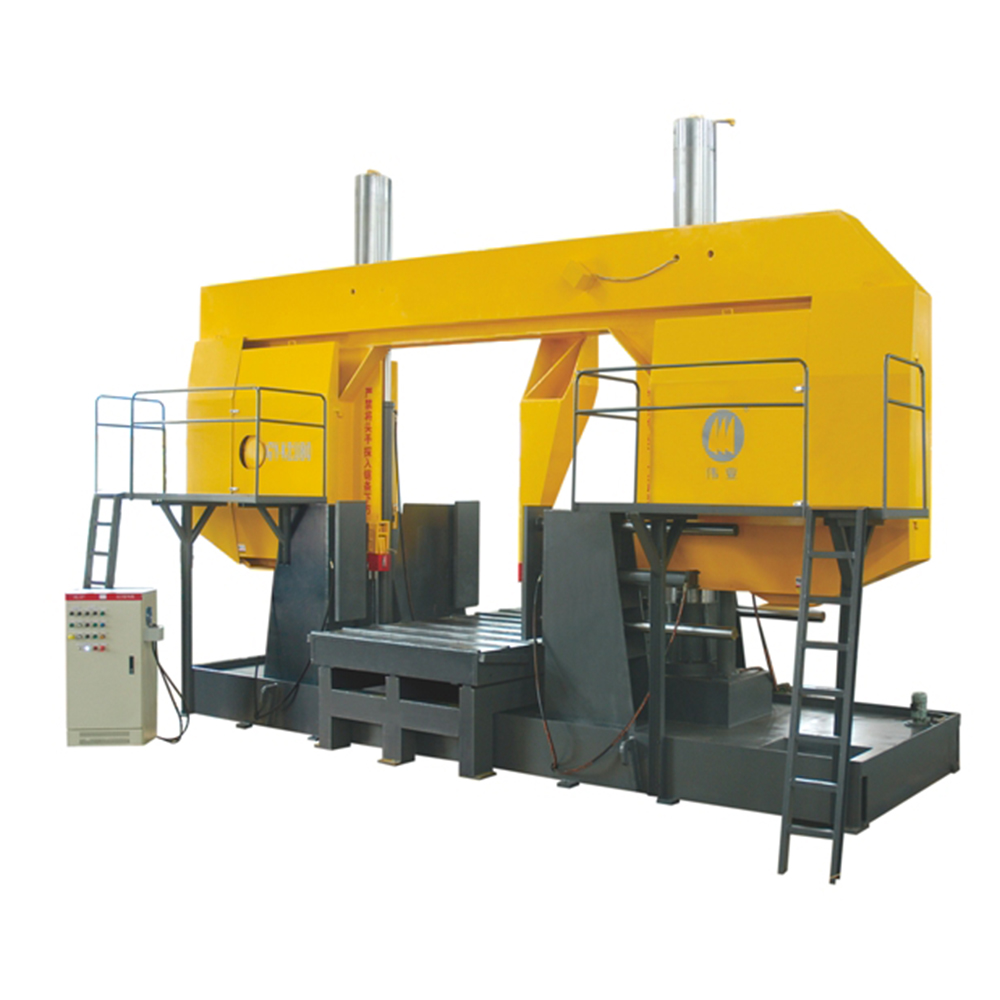

Products Pictures

gy42180_qax1
