GY5130M Chisel Cutting Miter Band Sawing Machine
GY5130M Chisel Cutting Miter Band Sawing Machine GY5130M Chisel Cutting Miter Band Sawing Machine

loading

GY5130M Chisel Cutting Miter Band Sawing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
GY5130M Chisel Cutting Miter Band Sawing Machine is an advanced equipment designed for chisel cutting and bar cutting. It is suitable for mitering ranges from 10 to 15 degrees and can be customized in size as per requirements. Featuring a movable worktable and a fixed saw frame structure, it ensures operational convenience and stability. The hydraulic band tension system guarantees stable operation and long-term usage of the saw blade. With a multi-layered worktable design, the top layer can be manually swiveled, and a specially designed worktable movement mechanism facilitates processing of diverse workpieces. The saw frame is equipped with hydraulic lowering adjustment for height adjustments as needed.
SKU:
Availability:
Quantity:

Products Specification

Type GY5130M
Capacity mm 250×400×350
inch 9×15×13
Table swiveling degree 10~15
Blade Speed mpm 2070
fpm 65~230
Blade Size mm 34×1.1
inch 1-3/8x0.042
Blade Motor KW 3
HP 4


Products Features

1: Suits chisel or bar cutting, mitering range from 10 to 15 degree, size on request


2: Movable worktable, fixed saw frame structure


3: Hydraulic band tension


4: Multi-layer of work table, manual swiveling from top layer


5: Special design for the movement of work table


6: Hydraulic lowering adjustment for the saw frame

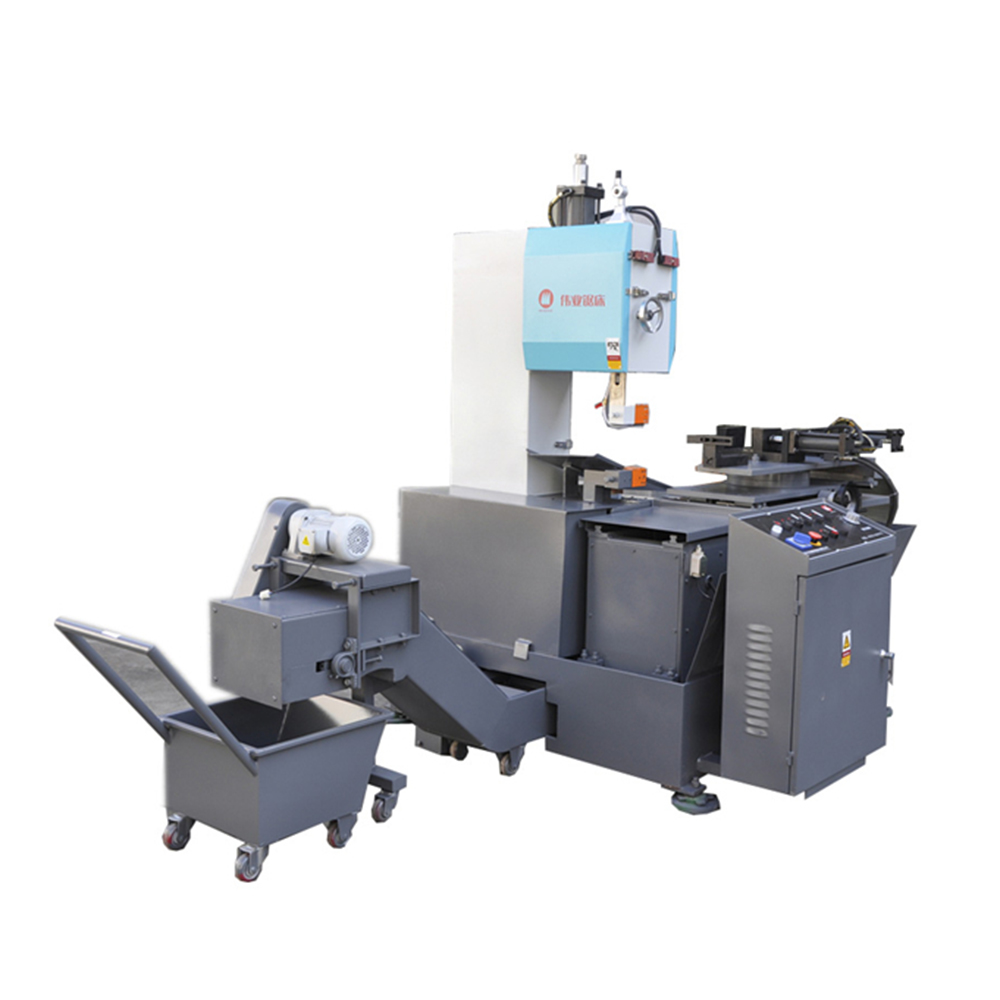

Products Pictures

1-150q11j452320_b9qq
