Products Specification
| Type | GY4250 | |
| Capacity | mm | 500×500 |
| inch | 19.6×19.6 | |
| Blade Speed | mpm | 20~70 |
| fpm | 65~230 | |
| Blade Size | mm | 41×1.3 |
| inch | 1-5/8×0.05 | |
Blade Motor | KW | 4 |
| HP | 5 | |
Products Configurations
Optional Configurations:
Roller table
Top vice
Hydraulic band tensioner
Chip auger
Products Features
2: Column down feed system
3: Carbide guides for the blade
4: Roller table for material feeding, idle or power type
5: Safety guard to both saw wheels or belt pulley

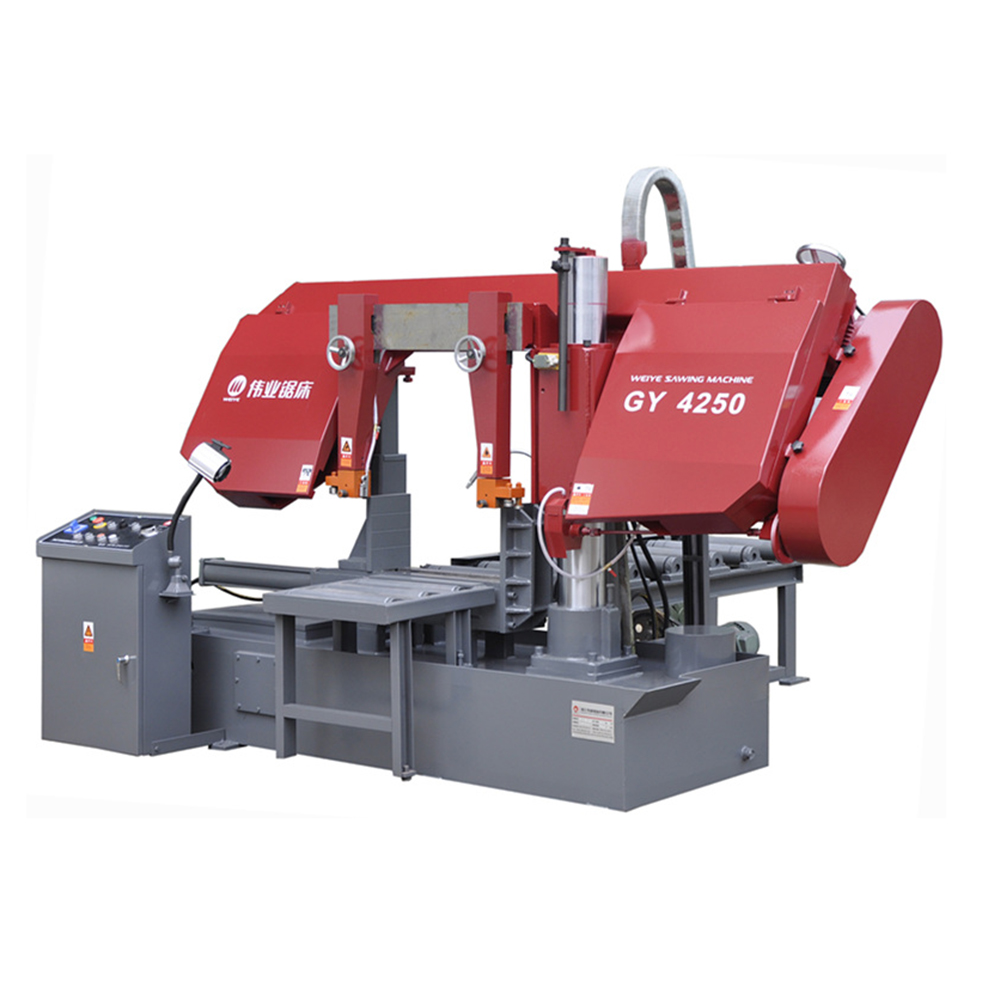

Products Pictures
