GY4280 Gantry Horizontal Band Sawing Machine
GY4280 Gantry Horizontal Band Sawing Machine GY4280 Gantry Horizontal Band Sawing Machine

loading

GY4280 Gantry Horizontal Band Sawing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This sawing machine features hydraulic control of cutting speed, coupled with a scientifically designed guide block structure that significantly extends the saw blade's lifespan. It employs a dual-column, dual-cylinder, gantry-style structure to ensure stable and high precision cutting. Workpieces are hydraulically clamped for ease of operation. The saw blade's speed can be variably adjusted, making it suitable for cutting various materials.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Products Specification

Type GY4280
Capacity mm 800
inch 31.4
Blade Speed mpm 20~70
fpm 65~230
Blade Size mm 67×1.6
inch 2-5/8x0.063
Blade Motor KW 7.5
HP 10


Products Configuration

Optional Configurations:
Lifter
idle roller conveyor
laser beam
hydraulic shuttle table
top vice
chip conveyor

Products Features

1: Adopts two oversized round columns for maximum amount of support to the saw frame


2: The cross link on top adds to great structural strength


3: Cutting force and feed rate are applied evenly from top to bottom of the cut


4: Guide block system adopted to lengthen the service life of blade


5: The rigid dual columns with large diameter guide the saw frame for a more powerful, smooth and accurate cutting

Products Pictures

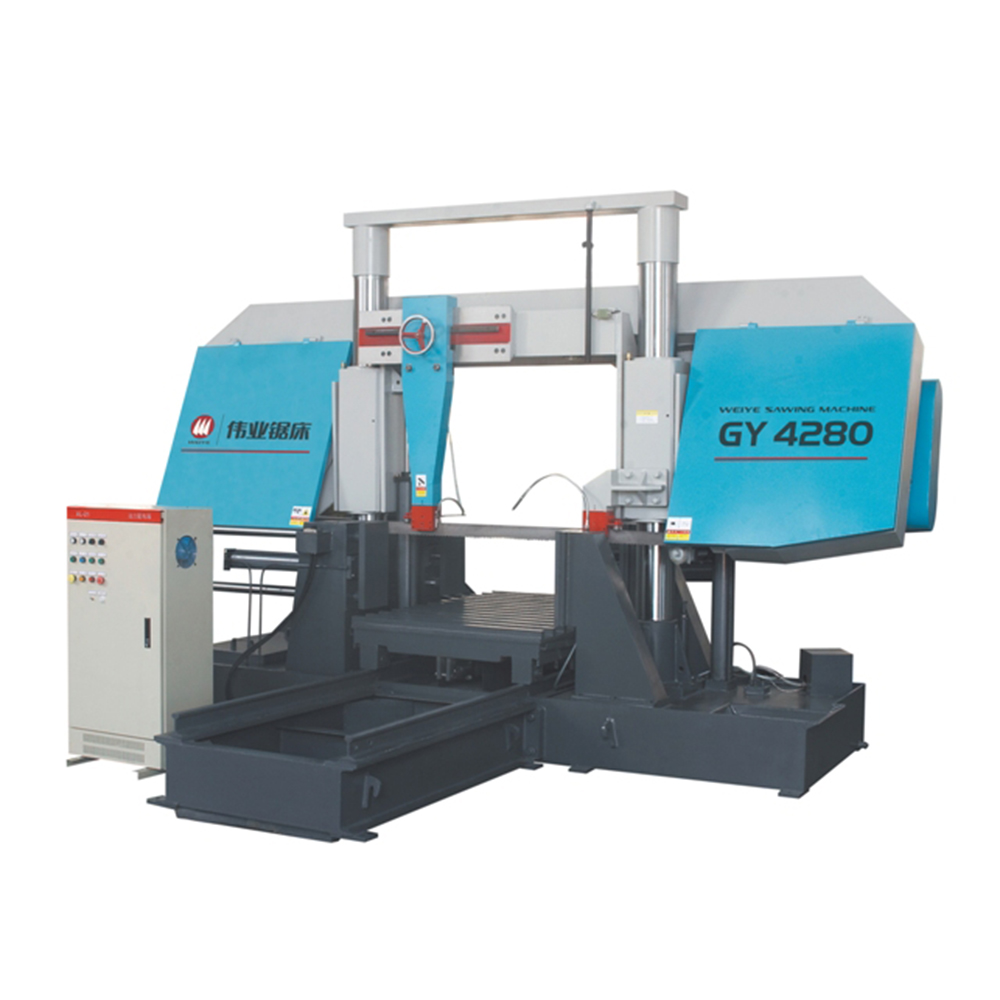

gy4280_lnbk
