Machine Features:
Energy Efficient & Fast Production: Low operating energy consumption, quick start-up, and rapid oxygen output.
Compact Modular Design: Space-saving layout with optimized airflow and minimal vibration for stable operation.
Easy Operation & High Automation: User-friendly interface with PLC control system for fully automatic operation and monitoring.
Stable & Reliable Performance: Uniform air distribution and reduced airflow impact ensure consistent purity and output.
Extended Zeolite Lifetime: Specialized protection measures reduce molecular sieve wear and prolong service life.
Premium Quality Components: Equipped with well-known brand parts to ensure long-term reliability and quality assurance.
Comprehensive Safety Features: Multiple fault diagnosis, alarm, and automatic protection functions for secure operation.
Optional Configurations: Touch screen display, dew point detection, energy-saving control, and DCS communication available.
Machine Working Principle:
Compressed air is first purified by an air purification system to remove impurities such as oil, water, and dust. The purified air then enters an adsorption tower filled with zeolite molecular sieves. In the tower, nitrogen, carbon dioxide, water vapor, and other gases are selectively adsorbed by the molecular sieves, while oxygen passes through due to its higher diffusion rate, achieving effective separation of oxygen and nitrogen.
When the adsorption tower becomes saturated with nitrogen and other impurities, the pressure is reduced to desorb and regenerate the zeolite molecular sieves, allowing them to be reused. Two adsorption towers work alternately in a cyclic process, ensuring continuous production of high-purity oxygen.

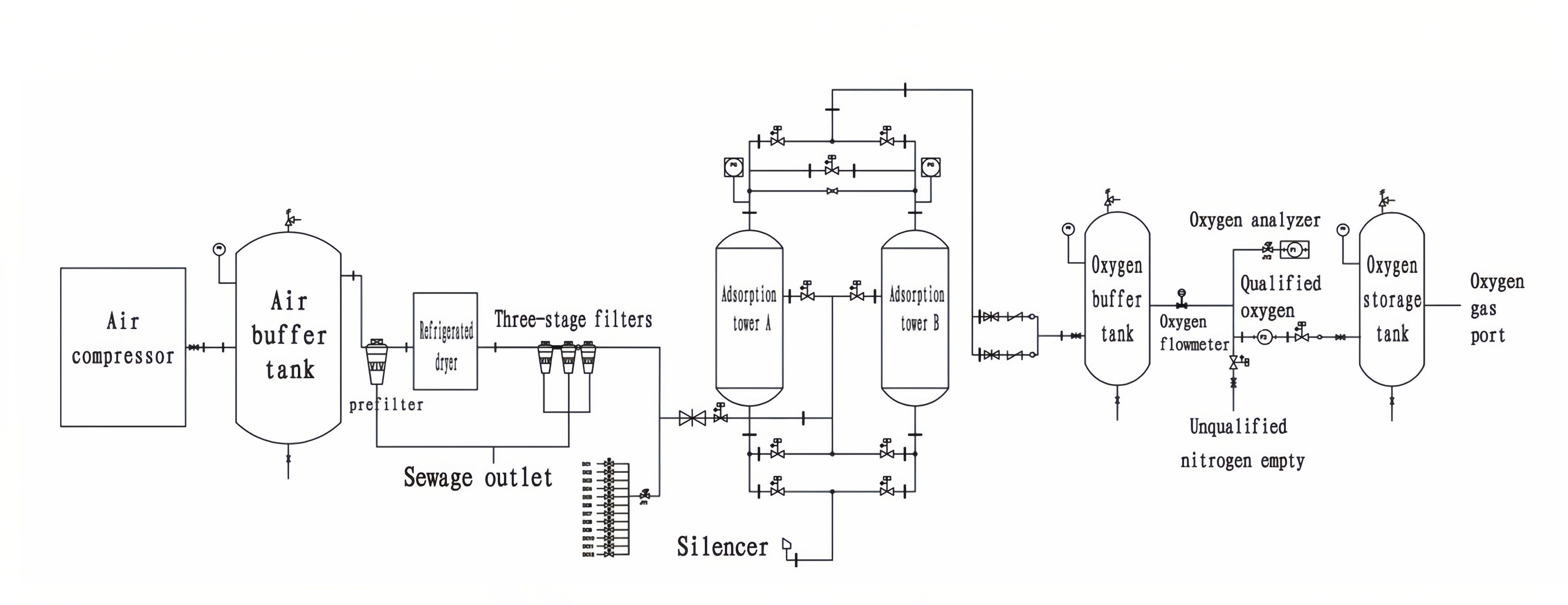

Machine Process Flow:
Technical Indicators：
Oxygen Flow Rate: 1–3000 Nm³/h
Oxygen Purity: 90%–93% ±2%
Oxygen Pressure: 0.1–0.6 MPa (adjustable)
Oxygen Dew Point: 0°C to –60°C
Product Specifications-Oxygen purity:93+2%
| Model | Oxygen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W×H (mm) |
| XC3-93 | 3 | 0.7 | 25 | 25 | 1300×1200×2000 |
| XC5-93 | 5 | 1.1 | 25 | 25 | 1400×1300×2000 |
| XC10-93 | 10 | 2.1 | 32 | 25 | 1500×1300×2300 |
| XC30-93 | 30 | 6.4 | 50 | 25 | 3800×1000×3100 |
| XC40-93 | 40 | 8.6 | 50 | 25 | 4300×1200×3000 |
| XC50-93 | 50 | 11 | 65 | 25 | 4600×1200×3200 |
| XC60-93 | 60 | 13 | 65 | 25 | 5200×1400×3400 |
| XC80-93 | 80 | 17 | 80 | 25 | 5700×1600×3300 |
| XC100-93 | 100 | 21 | 80 | 25 | 6100×1600×3800 |
| XC120-93 | 120 | 26 | 100 | 32 | 6500×1600×4800 |
| XC150-93 | 150 | 32 | 100 | 32 | 7400×2200×3500 |
| XC200-93 | 200 | 43 | 125 | 40 | 9500×2200×4100 |
