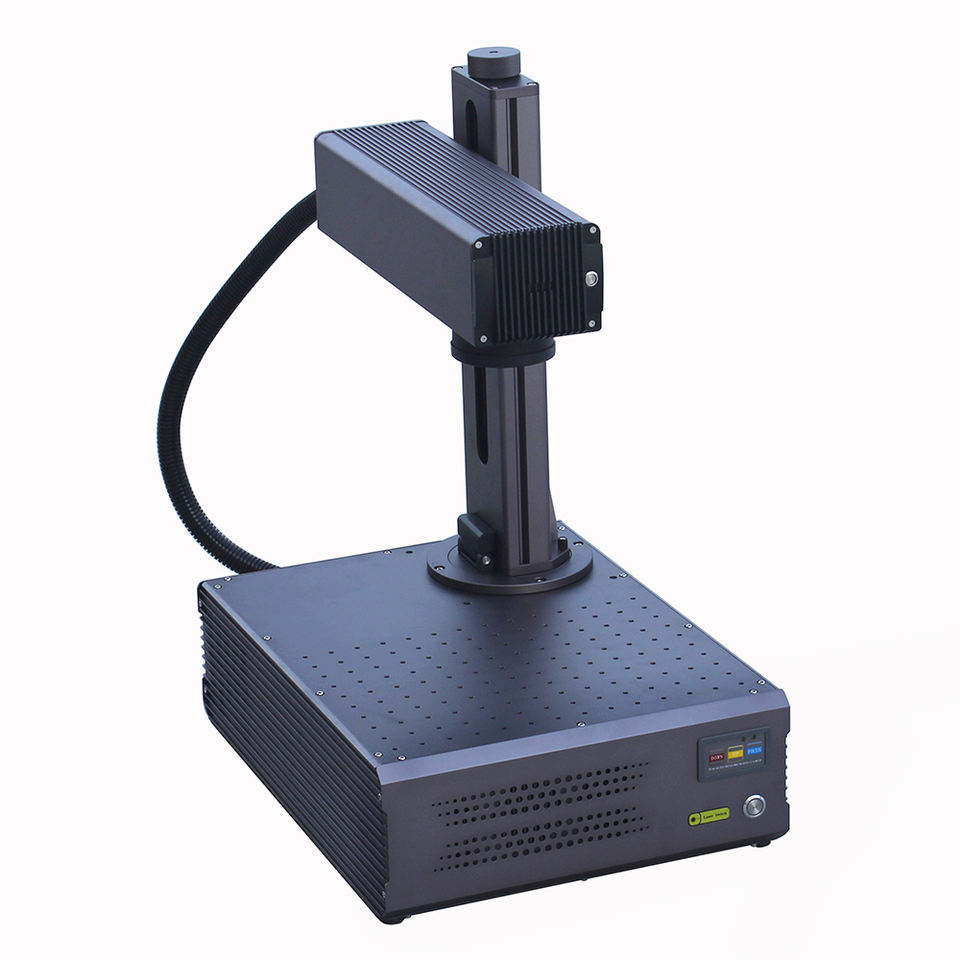

Mini 20/30/50W Portable Mopa Marking Fiber Laser Stone Engraving Machine

This portable MOPA fiber laser marking machine is designed for high-speed, high-precision surface engraving on metals, stone, plastics, acrylic, and other materials. With marking speeds up to 8000mm/s, fast positioning, and superior beam quality, it delivers fine, clean, and stable results. Equipped with a digital XY2-100 interface, high-spec galvanometer, EZ-CAD control, and red-light preview positioning, it ensures reliability and efficient operation in industrial, workshop, and DIY environments.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High-Reliability Fiber Laser Source:

All-fiber structure with no optical path adjustments; fine beam quality and shorter pulse width for more delicate marking.

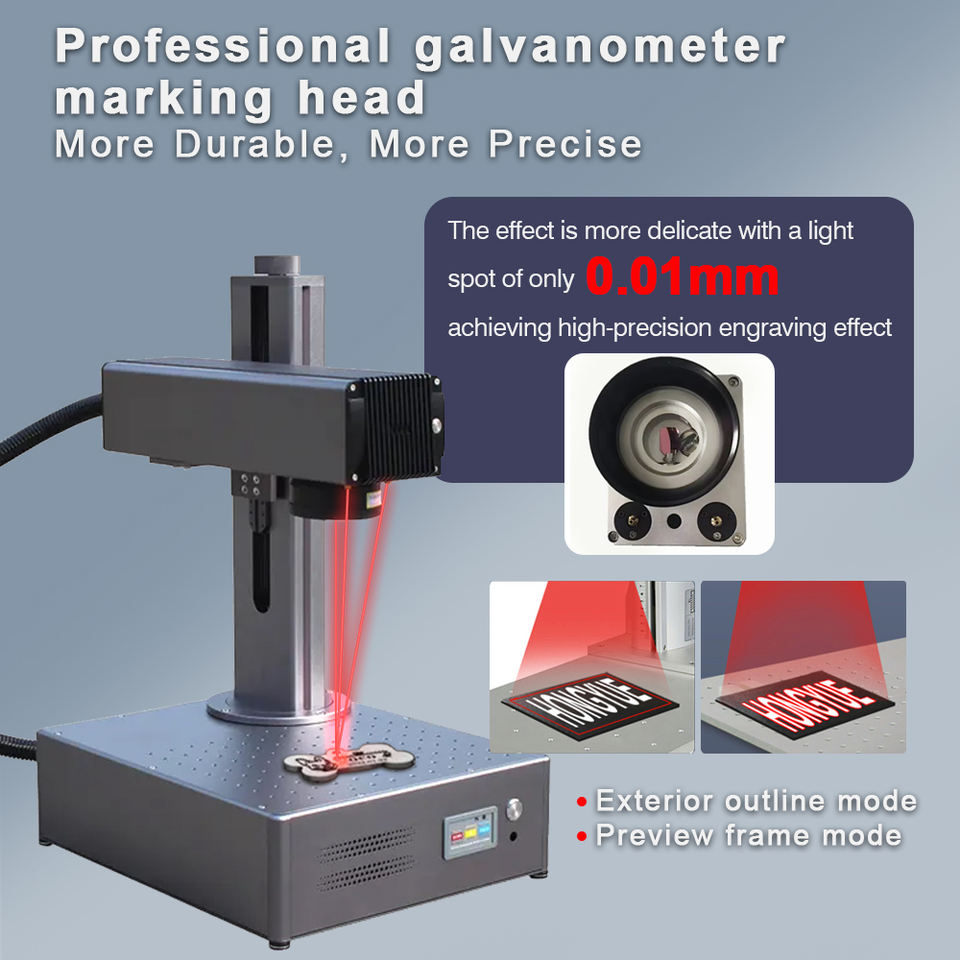

High-Precision Galvanometer:

Fast scanning, high conversion rate, response time <0.7ms, and accurate marking performance.

Advanced Control System:

Uses EZ-CAD for stable, reliable operation; hides unnecessary complex functions to ensure overall system stability.

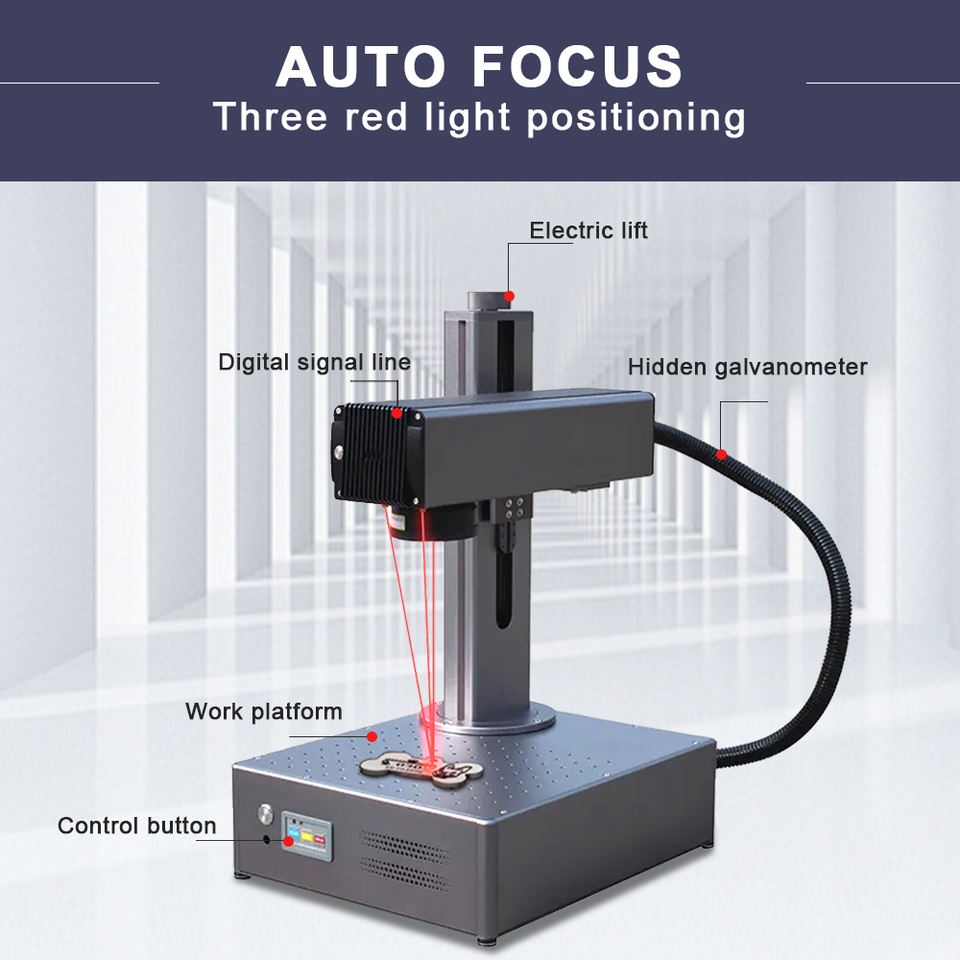

Red Light Preview Positioning:

Pre-scans marking area to preview size and ensure precise positioning of each workpiece.

Durable Work Platform:

Full aluminum operating table with multi-hole layout for flexible fixture positioning.

Wide Application Support:

Compatible with various field lenses (110–200mm), supporting metals, stone, plastics, ceramics, and more.

Products Specification:

Item	Details
Marking Power Options	20W / 30W / 50W
Laser Type	MOPA Fiber Laser
Wavelength	1064 nm
Marking Speed	8000 mm/s
Positioning Speed	10000 mm/s
Small Step Response Time	≤ 0.4 ms
Input Voltage	±15 VDC
Average Operating Current	2.0 A
Peak Current	15 A
Signal Interface	Digital XY2-100
Position Signal Input Impedance	10KΩ ± 1%
Position Signal Scale Factor	0.33 V/°
Operating Temperature	0℃ – 45℃
Storage Temperature	-10℃ – +60℃
Lens Center Distance (X/Y)	13.5 mm
Maximum Scanning Angle	±15°
Marking Area (Field Lens)	110×110 mm – 200×200 mm
