Product Advantage:
1. High definition, resolution rate is 1μm, it is over 10 times of traditional products.
2. Low power consumption, it is the 1/25-1/10 of traditional products.
3. High speed, it is over 3-5 times of traditional products.
4. Stability, similar products can’t compare with it.
5. Long life, it is over 10 times of traditional products.

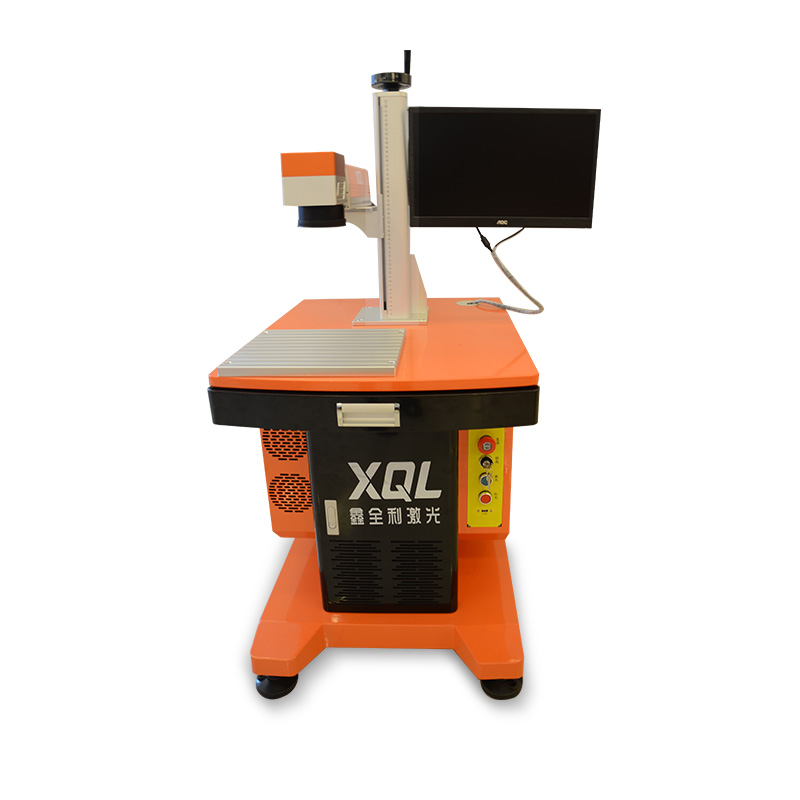

Details:
1. Control panel: following the pace of technology, the operation is simple and convenient, the upgraded version of the operation interface is simple and meticulous, and the editor is also easy to learn for novice operators.
2. Working platform: porous positioning and arrangement, flexible adjustment of product position, compact structure and convenient processing.
3. Lifting axis: humanized rotating lifting wheel, flexible adjustment of the focal length of laser marking, easy to achieve the desired effect.
4. Galvanometer: The galvanometer scanning system is composed of an optical scanner and a servo control volume. The marking effect is good without distortion, and the quality and speed of marking are improved.
5. Field lens: The field lens scanning system uses new technologies, new materials, new processes, high light transmittance and good printing results.
6. Focal length ruler: The ruler is to improve the accuracy of adjusting the laser, clear the ruler, display the data accurately, then realize the marking positioning more accurate.
Product Configuration
| Item | Parameter name | Parameters |
| Laser | Input power | 20W（30W 50W 100W optional) |
| Input laser beam | ＜1.4m2/＜1.8m2 |
| Marking capacity | Marking line depth | ≤1.2mm/≤2.2mm |
| Minimum focusing light point | 0.005mm |
| Minimum letter height | 0.15mm |
| Repeat accuracy | ±0.001mm |
| Max line marking speed | 12000nm/S |
| Marking format | (Picture, word, bar, code, Qcode, date, classes, number, file etc) |
| Standard marking range | 140mm*140mm |
| Physical Characteristics | Optional marking range | 180*180/230*230(mm) |
| Whole power | ≤160W |
| Power supply | 220V±10%/50Hz |
| Cooling system | Air cooling |
| Control interface | USB |
| Laser module life | ＞100000 hour |
| Control software | EZCAD |
| Marking color | Black or white |
| Marking format | Picture, word, bar, code, date etc |
