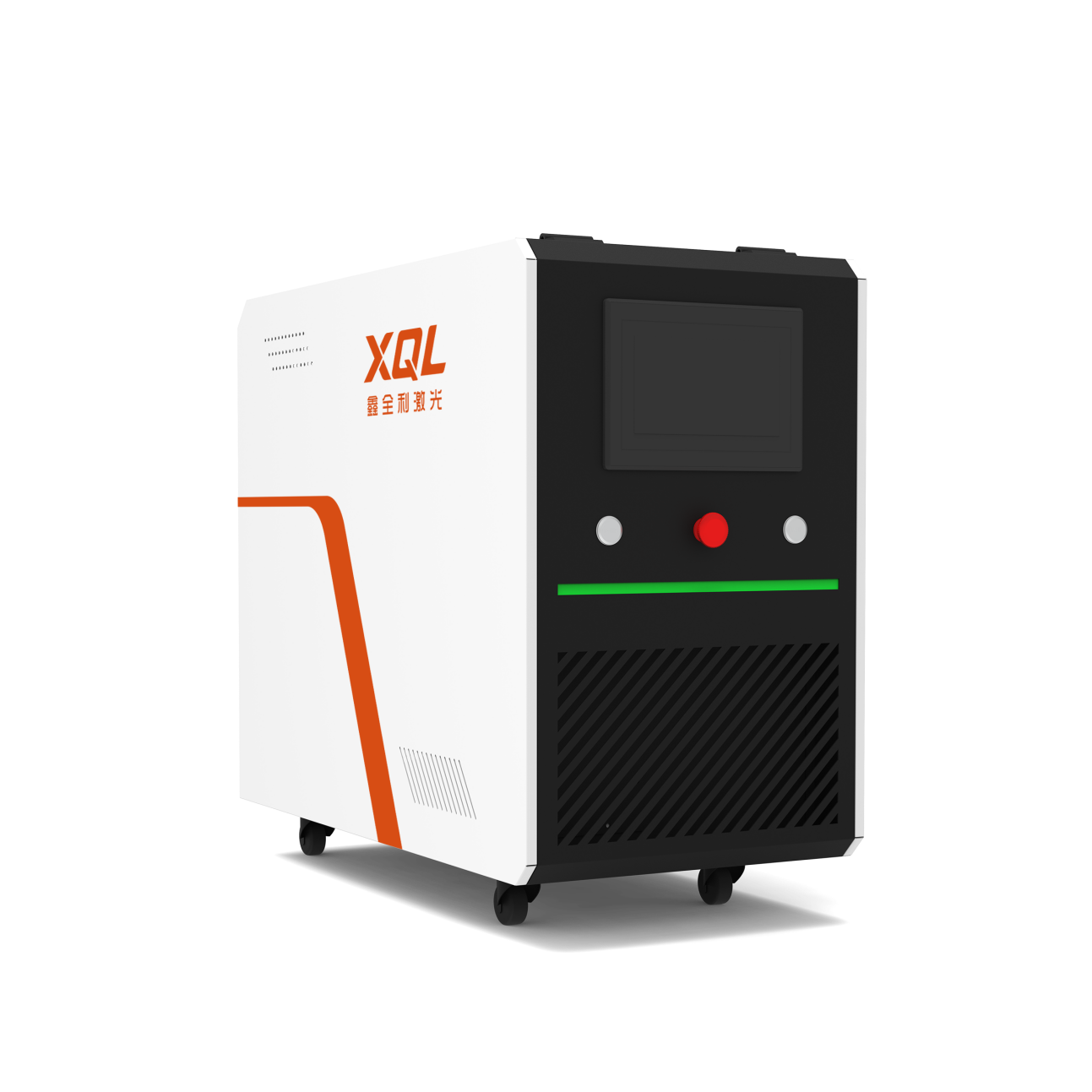

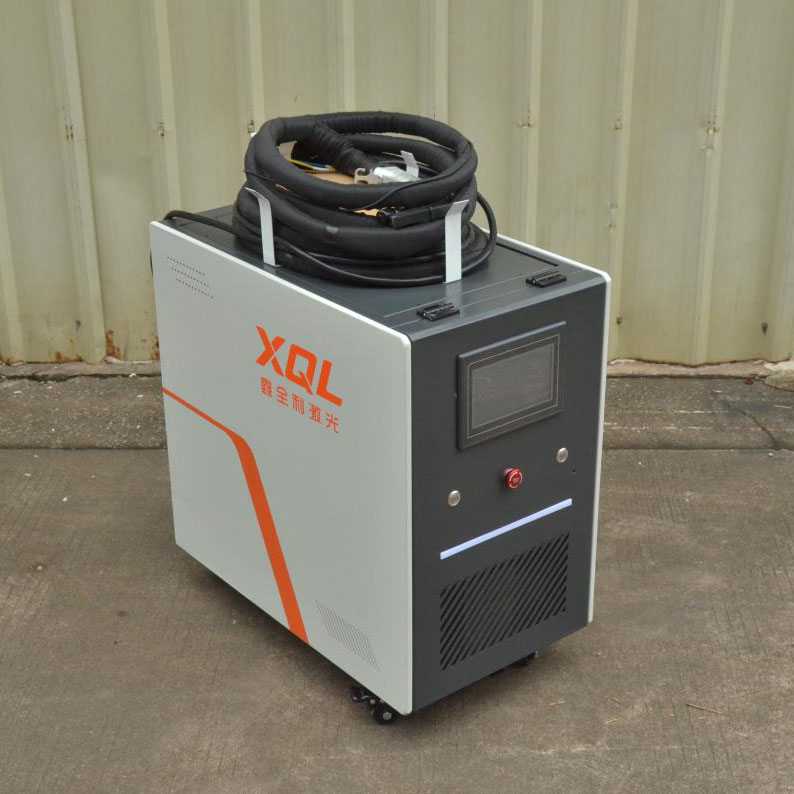

Front view of Model S 2000W handheld metal laser welding machine with compact water-cooled body and ergonomic fiber welding gun for metal fabrication
Front view of Model S 2000W handheld metal laser welding machine with compact water-cooled body and ergonomic fiber welding gun for metal fabrication Front view of Model S 2000W handheld metal laser welding machine with compact water-cooled body and ergonomic fiber welding gun for metal fabrication
Close-up of ergonomic handheld laser welding gun with color indicator lights for precise control and comfortable metal welding operation Close-up of ergonomic handheld laser welding gun with color indicator lights for precise control and comfortable metal welding operation

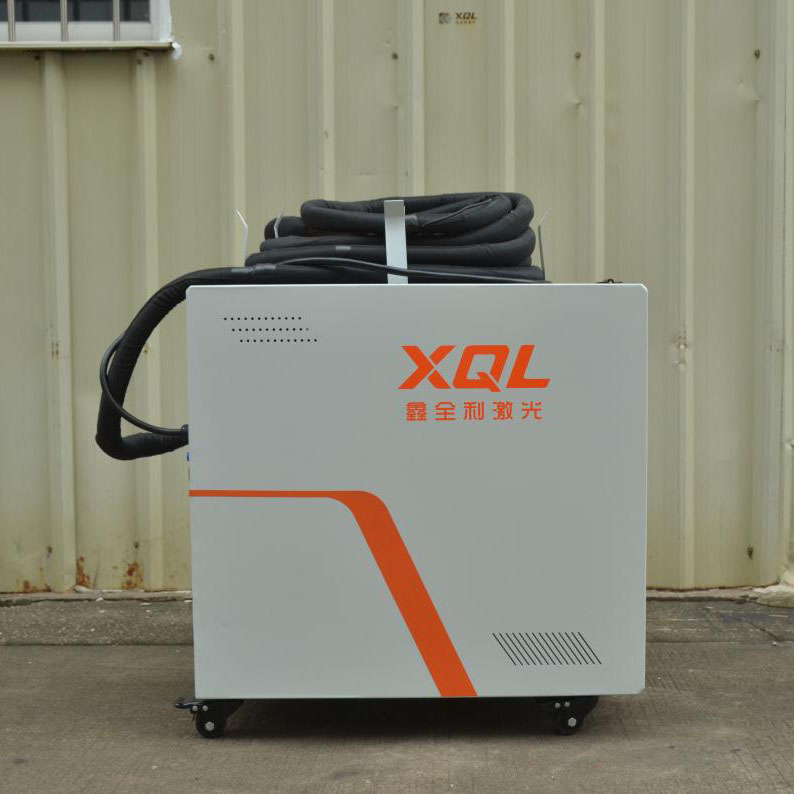

Detailed view of water-cooling system and fiber connection interface of Model S 2000W laser welder ensuring stable performance and long service life Detailed view of water-cooling system and fiber connection interface of Model S 2000W laser welder ensuring stable performance and long service life

loading

XQL Model S Water-Cooled Handheld Fiber Laser Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The Model S Water-Cooled Handheld Fiber Laser Welding Machine is the smallest device in the XQL LASER welding machine series. It boasts a high level of integration and features a lightweight, ergonomically designed welding gun with colored indicator lights for intuitive visual monitoring. This machine ensures strong, pore-free welds with a visually appealing finish. Additionally, it significantly reduces maximum power consumption. Various color options are available for the exterior.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Advantage:

1. Smaller and lighter.

2. Easier welding gun operation.

3. Low operating cost.

4. High level of integration.

5. Excellent welding results.


Product Configuration


No.NamequantitySpecificationRemark
1Fiber laser1 set1200W-2000WXQL
2Handheld welding head1PW3.0XQL
3Control system1 setPW3.0XQL
4Water tank1 set12LXQL
5Cooling system1 setXQL customizationXQL


Technical Parameter


IndexParameter
Machine modelXQL-H1200S/1500S/2000S
Laser power1200W/1500W/2000W
Physical dimension402*660*700(mm)
Total weight38kg
Cooling methodWater cooling
Laser sourceFiber laser
Welding gun weight0.8kg


Previous:
Next:
handheld metal laser welding machine 2000w laser welding machine welding machine laser
