Product Character:
Equipped with imported screw drive, Mitsubishi imported servo motor, with higher precision and faster speed; using tempering effect fuselage to ensure long-term use of the machine without deformation; optional auto focusing function;
Equipped with Ruida industrial control full-automatic CCD camera and visual cutting system, with rich functions such as automatic image correction, feature image positioning, mark point image positioning, contour recognition and cutting, adaptive recognition path planning, etc;
Solve the problem of plate position error correction and correction, pure digital module input and output, completely solve the problem of UV matching special-shaped plate, large area cutting, and simpler operation;
In addition to the visual cutting function, the visual cutting software also has the common software cutting function;
Realize the specific feature template and feature matching, add the WiFi wireless transmission and receiving module, and use the camera 3 million color and 1.3 million black-and-white camera dual chip output;
With CAD / CAM function, it can solve the problems of smoothing, outspread, curve checking and correction, spot radius compensation and correction, add the function of modifying the cutting elements and modifying the cutting points, and introduce the function of leading out, cutting simulation and processing time prediction.
Adopt color screen control system, support offline and online operation, support mainboard solid state upgrade and multi language.
Application industry and materials:
Application material: acrylic and double color plate carving, organic glass carving and cutting, sign carving, crystal, photo frame, trophy carving, license plate carving, Wood, bamboo chips, ivory, bone, leather, rubber board, marble etc.
Application industry: Crafts Industry, Leather and garment processing industry, Model industry, Packaging Industry, Product identification industry and Other industries.
Product Configuration

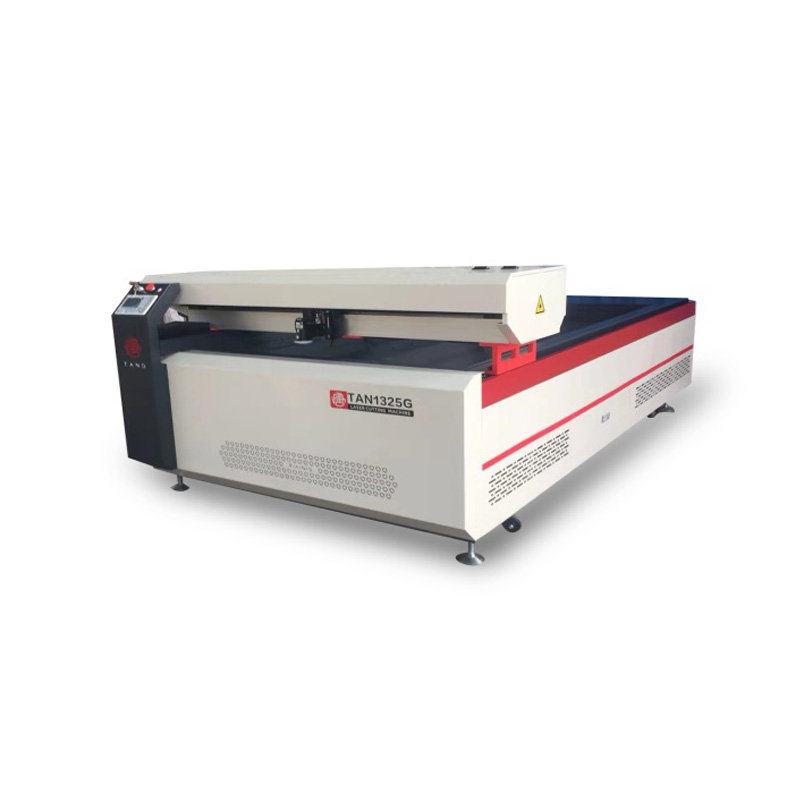

| Model: | TAN-1325G |
| Laser Type | sealed CO2 laser tube(Comply with GB 11748 - 89 standard) |
| Laser Power | 150W-320W |
| Engraving Speed | 1-60000mm/min |
| Position accuracy | ≤±0.05mm |
| Min character | Chinese character 2mm，English 1mm |
| XY Working area | 1300mm*2500mm |
| Cooling mode | water cooling and protection system |
| Laser output Control | 1-100% Set buy software |
| Operating Voltage | AC110-220V±10%, 50-60HZ |
| Driving&Motor | Delta Servo / drive |
| Compatible Software | CORTLDRAW, PHOTOSHOP, AUTOCAD |
| Supported Graphic Formats | PLT, BMP, DXF, AI, HPGL, DST |
| Working table | knife blade |
| Working Environment | temperature: 0—45℃ humidity: 5%—95%(No condensate water) |
| Working area | 122x250 CM |
| Machine size(CM) | 365×190×130 |
| Laser power | 150W /320W |
| Repeat accuracy | ±0.05mm |
| Cutting thickness(150W) | Acrylic≤ 20mm; MDF≤ 8mm; Plywood≤ 15mm |
| Cutting thickness(320W) | Acrylic≤ 30mm; MDF≤ 12mm; Plywood≤ 20mm |
| Voltage | 220V/50HZ/60HZ,± 5% |
| Weight | 1000KG |
| Wooden case size (CM) | 375×204×145 |
Cutting Parameter
| Laser power | Cutting effect and speed in 30mA(mm/s) |
| 150W | 5mm Acrylic | 10mm Acrylic | 20mm Acrylic |
| Cut through | Good effect | Cut through | Good effect | Cut through | Good effect |
| 26-30 | 13-14 | 8-10 | 5-6 | 2-2.5 | 0.5-1 |
| Photo frame plate(mm/s) |
|
| Cut through: 7-8 | Good effect: 3-4 |
