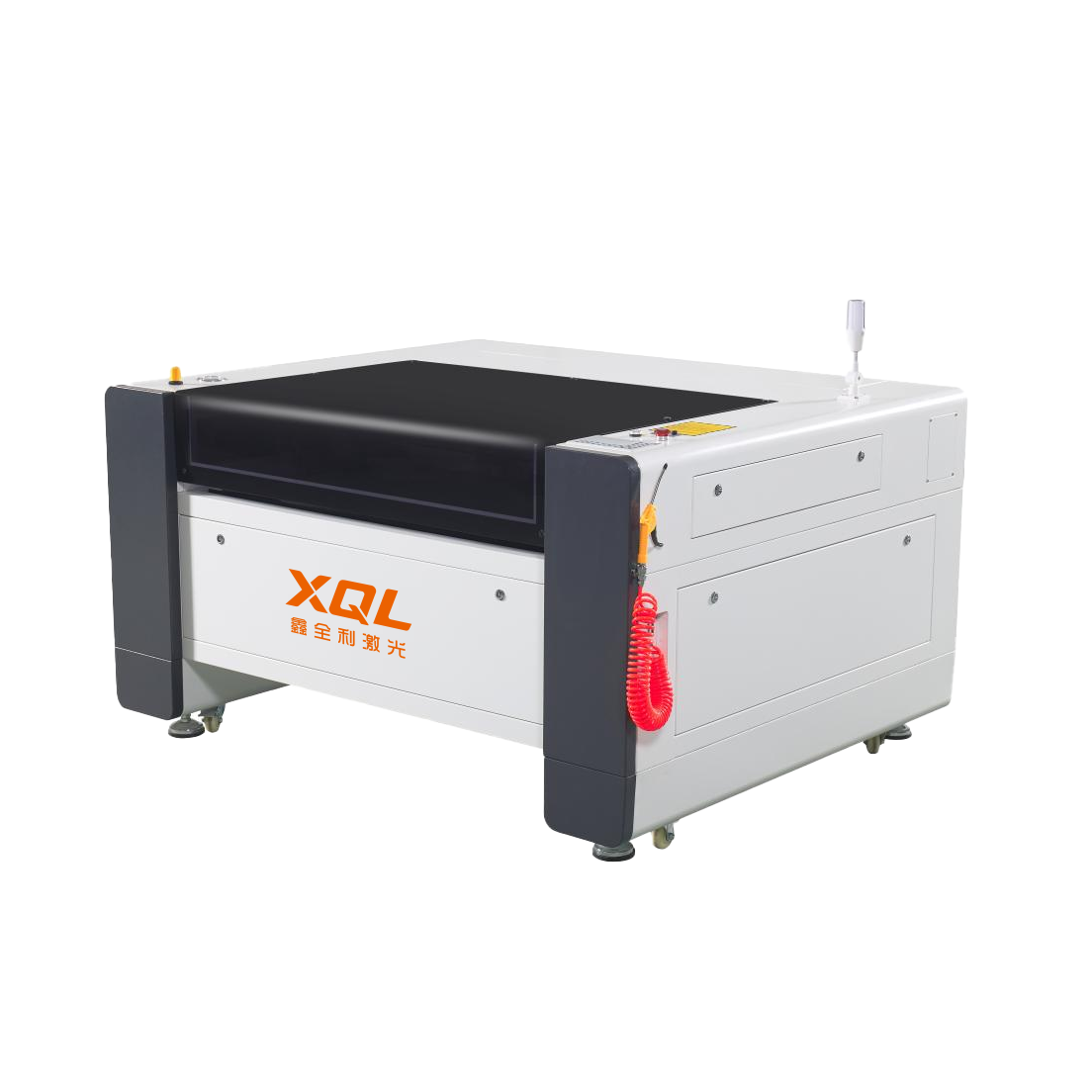

Front view of XQL-1390 CO2 laser cutting machine for wood, acrylic, and plastic with red-light positioning and auto-focus system
Front view of XQL-1390 CO2 laser cutting machine for wood, acrylic, and plastic with red-light positioning and auto-focus system Front view of XQL-1390 CO2 laser cutting machine for wood, acrylic, and plastic with red-light positioning and auto-focus system

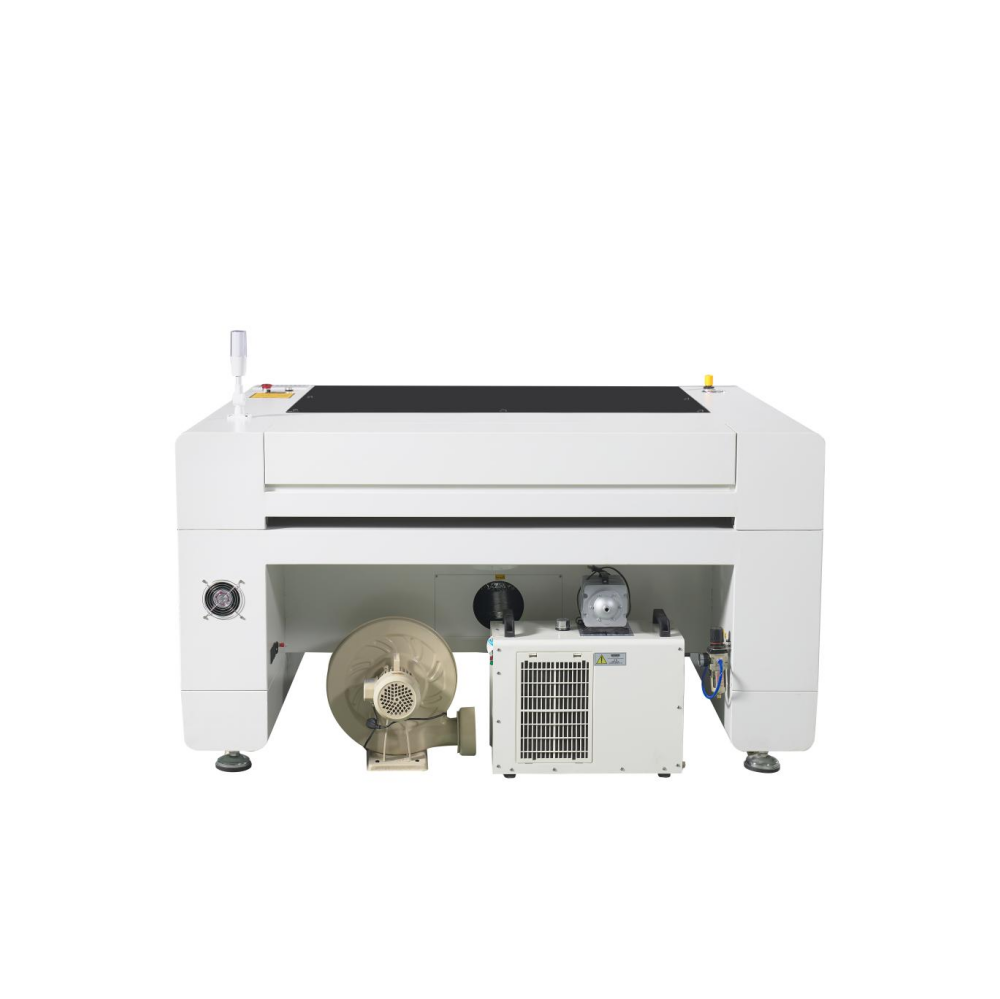

Industrial CNC laser cutting machine with fully enclosed structure and four-direction feeding design for batch processing Industrial CNC laser cutting machine with fully enclosed structure and four-direction feeding design for batch processing

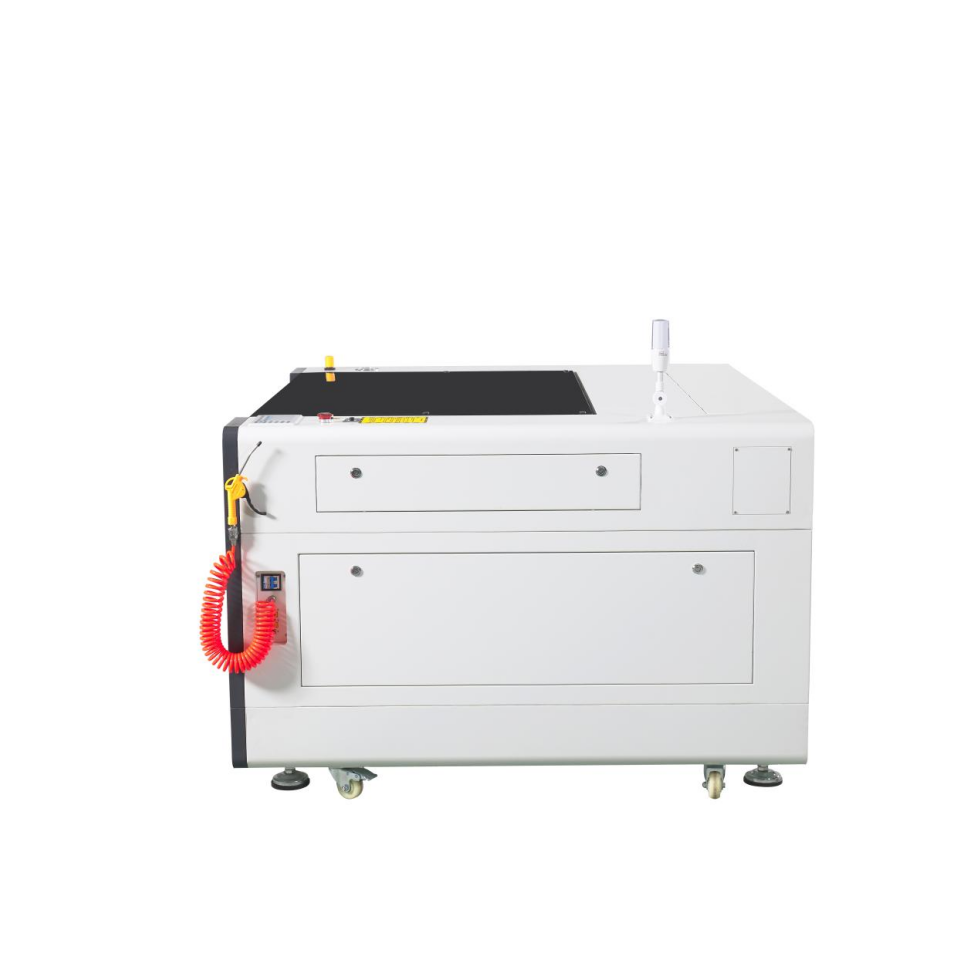

CO2 laser engraving and cutting machine showing high-precision cutting bed and integrated guide rail for noise-free operation CO2 laser engraving and cutting machine showing high-precision cutting bed and integrated guide rail for noise-free operation

loading

XQL 1390-CO2 Laser Cutting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
XQL-1390 CO2 Laser Cutting Machine uses high-energy CO2 laser beams to cut, engrave, and mark a variety of materials, including wood, plastic, leather, and fabric. It offers high-speed, high-precision machining and contour cutting functions for acrylic, glass, leather, MDF, paper, plastic, plywood, rubber, stone, and wood. With four-direction feeding and returning, it is convenient for batch processing and handling special or bulk materials. The machine features accurate and real-time red light positioning, automatic one-key focusing, and a closed integrated rail design that effectively isolates smoke and noise.
SKU:
Availability:
Quantity:

Technical Parameter

NameParameter
Machine modelXQL-1390
Laser power150-300W
Laser typeSealed water-cooled CO2 laser tube
Machining area (length × width)1300*900(mm)
Equipment size1840*1540*1120(mm)
Total weight400kg
Operating VoltageAC220V 50Hz
Cutting speed1-60000mm/min
Positioning accuracy±0.05mm
Aiming and positioningRed light positioning
Working temperature0-45℃
Air humidity5-95%
Min characterChinese character 2mm,English 1mm


Cutting Thickness


Items150W300W
Acrylic15mm30mm
MDF8mm12mm
Wood8mm16mm
