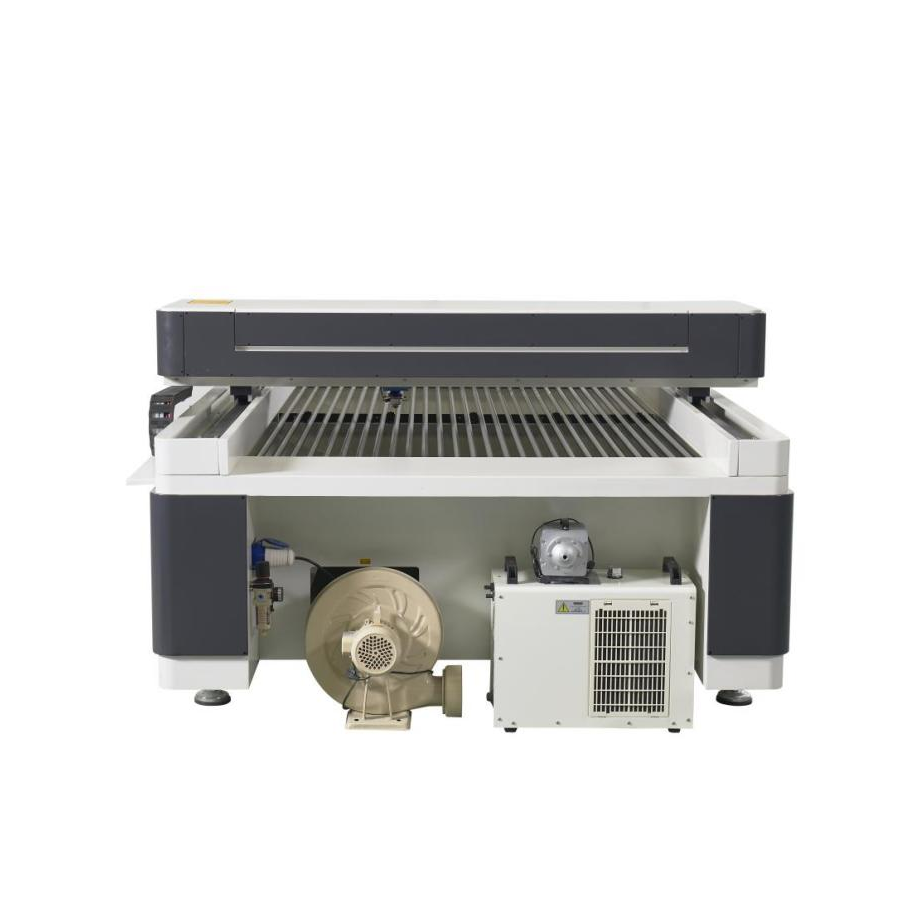

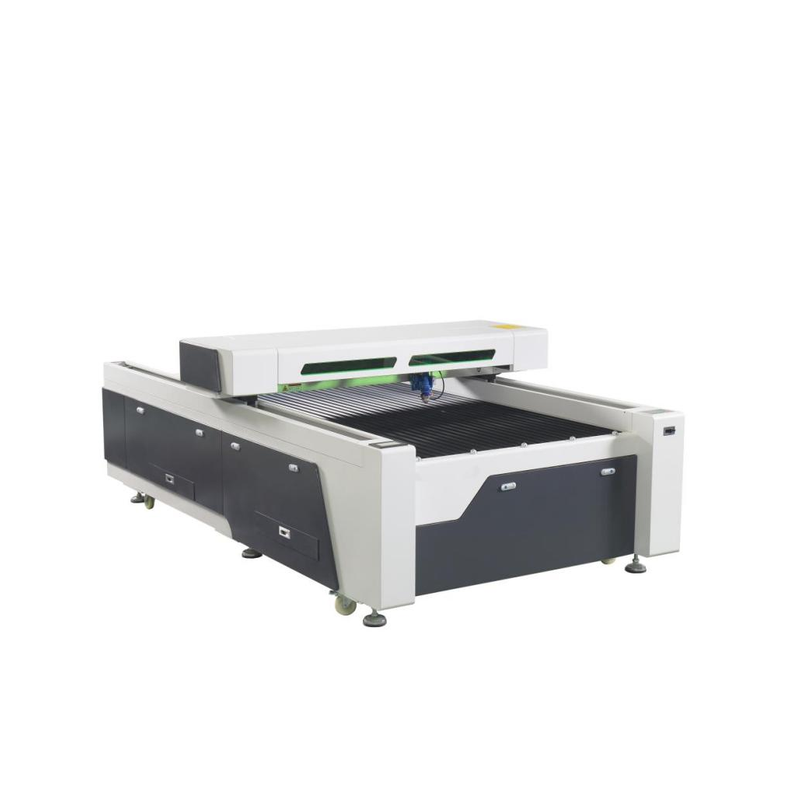

Front view of CNC CO2 laser cutting machine with enclosed structure for high-precision cutting of metal and non-metal materials
Front view of CNC CO2 laser cutting machine with enclosed structure for high-precision cutting of metal and non-metal materials Front view of CNC CO2 laser cutting machine with enclosed structure for high-precision cutting of metal and non-metal materials

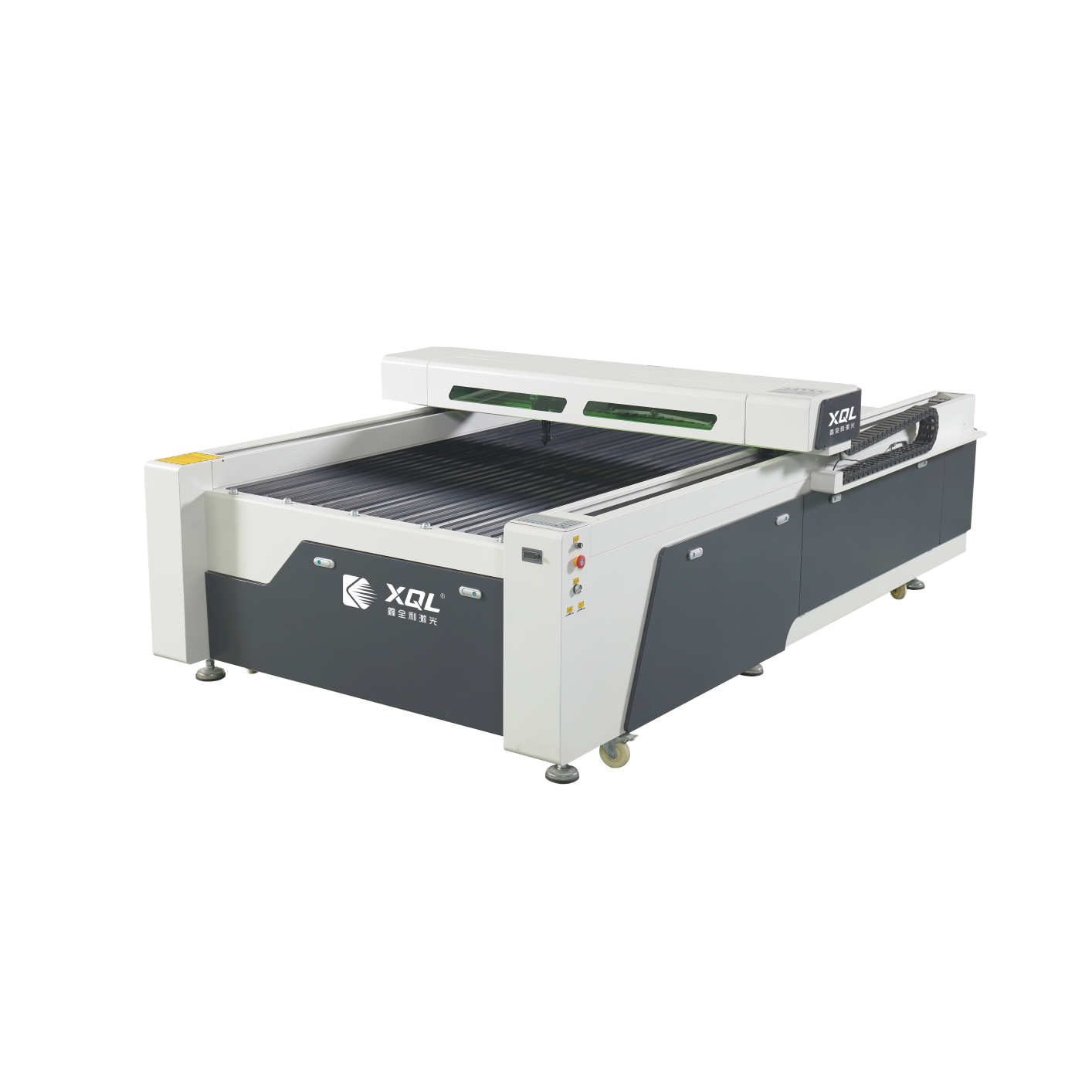

Industrial CO2 laser cutting machine showing full worktable and control panel for accurate sheet cutting and engraving applications Industrial CO2 laser cutting machine showing full worktable and control panel for accurate sheet cutting and engraving applications
CO2 metal laser cutting machine front perspective with durable mold-cast body and optical mirror system for enhanced cutting precision CO2 metal laser cutting machine front perspective with durable mold-cast body and optical mirror system for enhanced cutting precision

loading

XQL 1325 CO2 Laser Cutting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CO2 Laser Cutting Machine is a reliable and durable model with a low failure rate, ideal for cutting whole sheets. It boasts a sleek design and high-precision mold casting profile that remains stable over time. The use of top-quality imported mirrors and lenses ensures superior reflectivity, a smaller light spot, and enhanced cutting power.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Application:

Mode industry, the advertising industry, decorative, crafts gift industry, electronics and electrical appliances, advertising signs logo, crystal ornaments, paper cutting techniques, bamboo caving simple process, etc.


Product Configuration：

NO.NameQuantity/SpecificationBrand
1Control system1 pcRUIDA
2Laser1 pc150/300W
3Laser head1 setProfessional adjustment special head
4Power switch1 setMEANWELL
5Laser power supply1 pcMYDY
6Motor and drive1 setLeadShine
7Gantry1 setIntegrated aluminum alloy gantry
8Air pump1 pc160W/600W
9Chiller1 pcCW
10Exhaust fan1 pc550W
11Reflect lens1 pcGold silicon reflective lenses
12Focus Lens1 pcII-VI


Technical Parameter


NameParameter
Machine ModelXQL-1325-CO2
Laser power150W/300W
Laser typeSealed CO2 laser tube
Machining area (length × width)1200*2400(mm)
Machine size3800*2030*1120(mm)
Net weight800kg
Operating voltageAC220V  50Hz
Motorized tableKnife blade table/honeycomb table (option)
Engraving speed0-6000mm/min
Positioning precision≤±0.01mm
Cooling methodWater cooling
Air compressor160W/600W air assist pump
Ventilation550W Extractor fan
Min characterChinese character 2mm，English 1mm
File formatPLT, BMP, DXF, AI, HPGL, DST
Suitable materialAcrylic ,MDF, Wood etc.


Cutting Parameter

150W Cutting parameter table
MaterialReference effective cutting speed in 30mA（mm/s）
Items5mm Acrylic10mm Acrylic20mm Acrylic
Cut through26-308-102-2.5
Good effect13-145-60.5-1


Cutting Thickness

Items150W300W
Acrylic20mm30mm
MDF8mm12mm
Plywood15mm20mm


Previous:
Next:
co2 laser cutting machine cnc co2 laser cutting machine co2 metal laser cutting machine
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

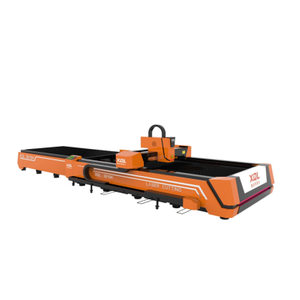

Front view of 1000W fiber laser CNC cutting machine with automatic dual exchange table for efficient industrial metal sheet cutting
XQL 3015H Exchange Bed Fiber Laser Cutting Machine
Front view of XQL-3015F 2kW CNC fiber laser cutting machine with automatic focusing head and integrated compact design for industrial metal cutting
XQL-3015F Industrial Fiber Laser Cutting Machine

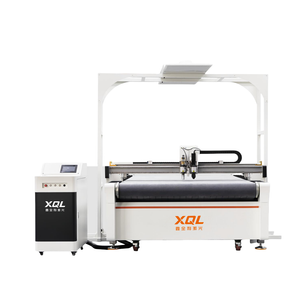

Front view of CNC laser and vibrating knife cutting machine with aluminum table and felt conveyor for precise cutting of PVC, acrylic, and foam materials
XQL Vibrating Knife Cutting Machine

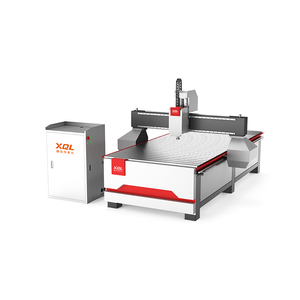

Front view of 3D CNC router and laser engraving machine for wood, metal, and plastic with multi-functional engraving, cutting, and milling capabilities
XQL CNC Router Engraving Machine

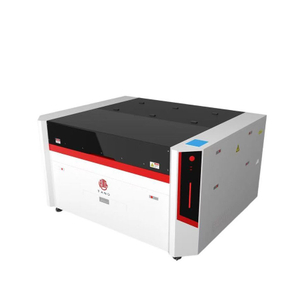

Front view of CO2 laser cutting machine with dual-platform design, red-light positioning, and enclosed guide rail system for precise and efficient metal and non-metal cutting
XQL TAN-1390 CO2 Laser Cutting Machine

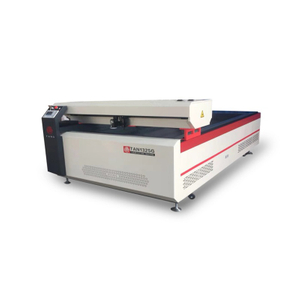

Front view of industrial laser engraving cutting machine with CCD visual system and Mitsubishi servo motor for high-precision engraving and cutting of metal, acrylic, and wood materials
XQL TAN-1325G Laser Engraving and Cutting Machine

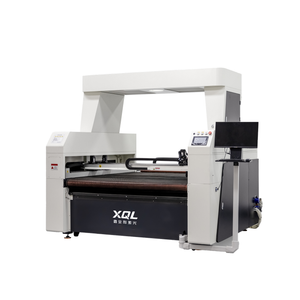

Front view of industrial fabric laser cutting machine with CCD camera, double-beam design, and automatic feeding system for high-speed precision cutting of metal and non-metal materials
XQL Fabric Laser Cutting Machine

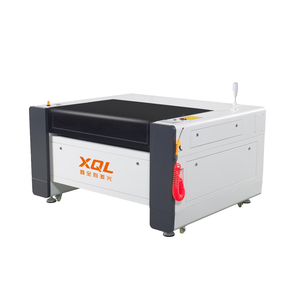

Front view of XQL-1390 CO2 laser cutting machine for wood, acrylic, and plastic with red-light positioning and auto-focus system
XQL 1390-CO2 Laser Cutting Machine
Front view of backpack laser cleaning machine for rust and paint removal, featuring compact design, ergonomic straps, and portable laser system
XQL Q100F Backpack Laser Cleaning Machine
Front view of portable laser cleaning machine for removing rust, paint, and surface coating on metal materials with precision and eco-friendly design
XQL Handheld Laser Cleaning Machine Metal Rust Remover
Front view of XQL-SB130 automatic bending machine for sheet metal and aluminum profile processing in signage and advertising production
XQL SB130 Multi-Function Bending Machine
Front view of aluminum bending machine with five-axis mechanical system for precise forming of LED aluminum and metal letter signs
XQL L130 Aluminum Letter Bending Machine
Front view of XQL-3200 CNC press brake machine with hybrid drive system for high-speed, precise bending of large metal sheets
XQL 3200 Down-Acting Hybrid CNC Press Brake
Front view of XQL-2500 sheet metal panel bender with 13-axis CNC system for precision forming of aluminum, carbon steel, and stainless steel
XQL 2500 Sheet Metal Panel Bending Machine
Front view of coil laser cutting machine with automatic feeding and leveling system for continuous metal coil cutting production
XQL X3015F-B Coil Material Fiber Laser Cutting Machine
Front view of 1000W industrial fiber laser cutter for metal sheet processing, featuring compact design and high cutting precision
XQL X3015AE Industrial Fiber Laser Cutting Machine

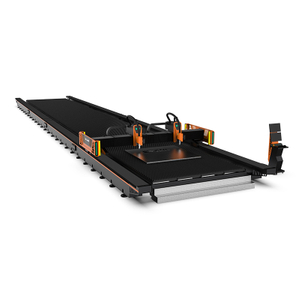

Front view of industrial ground rail fiber laser cutting machine for large metal sheet processing with dual cutting heads and split-type gantry design
XQL Grounded Platform Heavy Duty Fiber Laser Cutting Machine

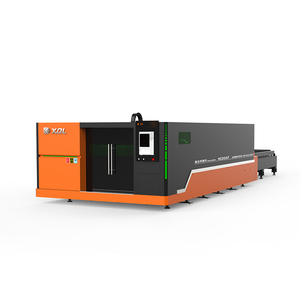

Front view of 4020AF 3kW fiber laser CNC cutting machine with fully enclosed design and intelligent autofocus laser head for industrial metal cutting
