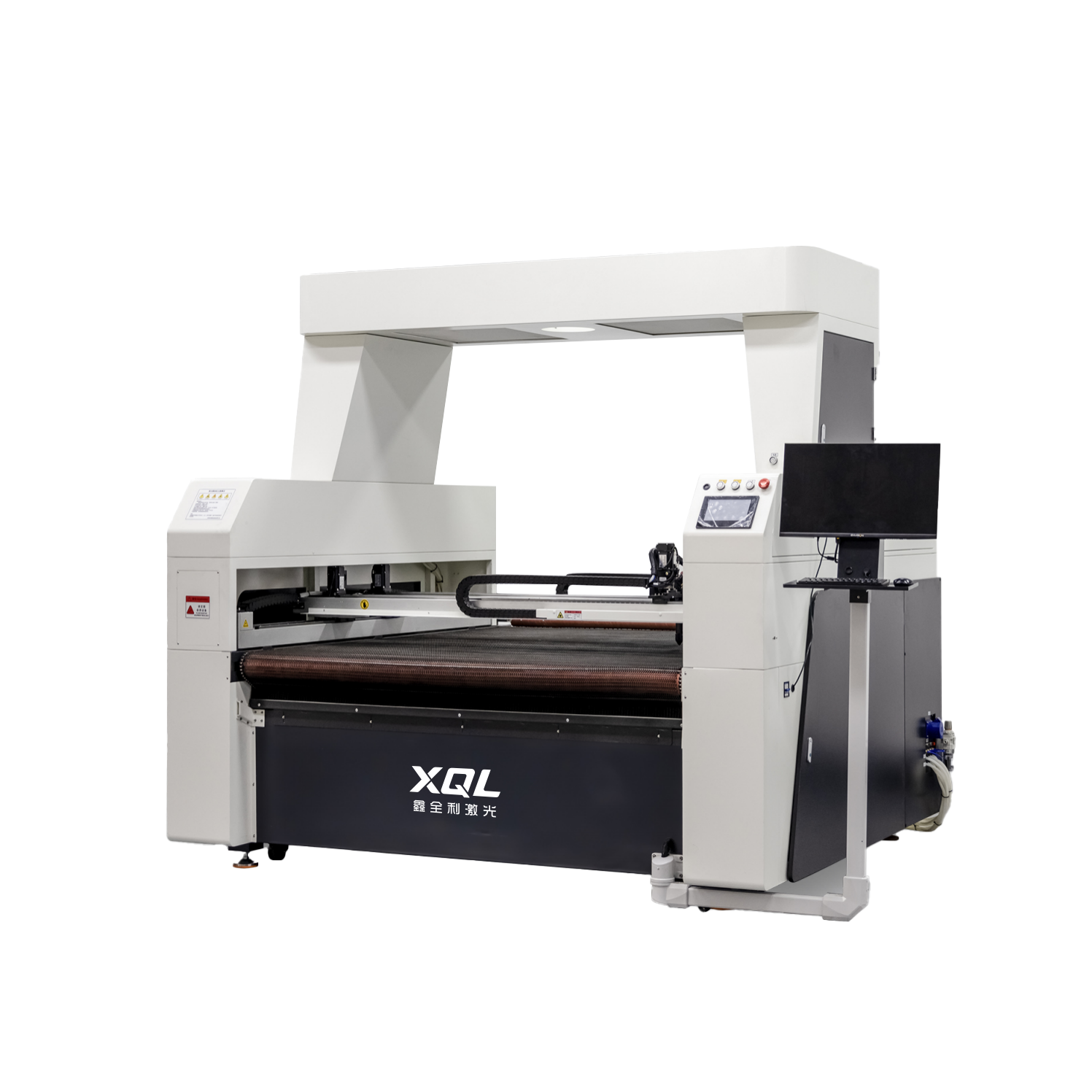

Front view of industrial fabric laser cutting machine with CCD camera, double-beam design, and automatic feeding system for high-speed precision cutting of metal and non-metal materials

XQL Fabric Laser Cutting Machine

The fabric laser cutting machine features a double-layer beam structure design, enhancing rigidity by more than 10 times. It utilizes a double crossbeam rack and pinion drive for faster speed and higher cutting accuracy. The servo motor ensures high response speed, precise control, and stable operation. With fully automatic feeding, it saves time and boosts work efficiency. Additionally, the intelligent CCD camera captures the pattern outline and cuts with exceptional efficiency.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Application:

It is suitable for soft non-metallic materials cutting related industries, advertising, crafts, decoration, garment sampling, leather, shoes, packaging and printing, crafts and gifts industry, etc.

Product Configuration

NO.	Name	Quantity	Specification/Brand	Remark
1	Control system	1 set	RUIDA	Shenzhen
2	Laser tube	1 pc	CDWJ 150W-300W	China
3	Special laser cutting head	1 pc	/	China
4	Laser power supply	1 pc	MYDY	Shandong
5	Guide rail	1 set	CSK	Taiwan,China
6	Servo motors and drives	1 set	LeadShine	China
7	Precision transmission	1 set	/	China
8	CCD camera	1 pc	/	China
9	Chiller	1 pc	/	China

Technical Parameter

Name	Parameter
Machine model	1814
Laser power	300W
Laser type	Sealed CO2 laser tube
Machining area (length × width)	1800*1400(mm)
Machine size	254021802270(mm)
Net weight	650kg
Operating voltage	AC220V 50Hz
Worktop	Automatic feeding
Cutting speed	1-2000mm/s
Positioning precision	≤±0.05mm
Cooling method	Water cooling
Working temperature	0-45℃
Air humidity	5-95%

fabric laser cutting machine industrial fabric laser cutting machine laser machine for metal
