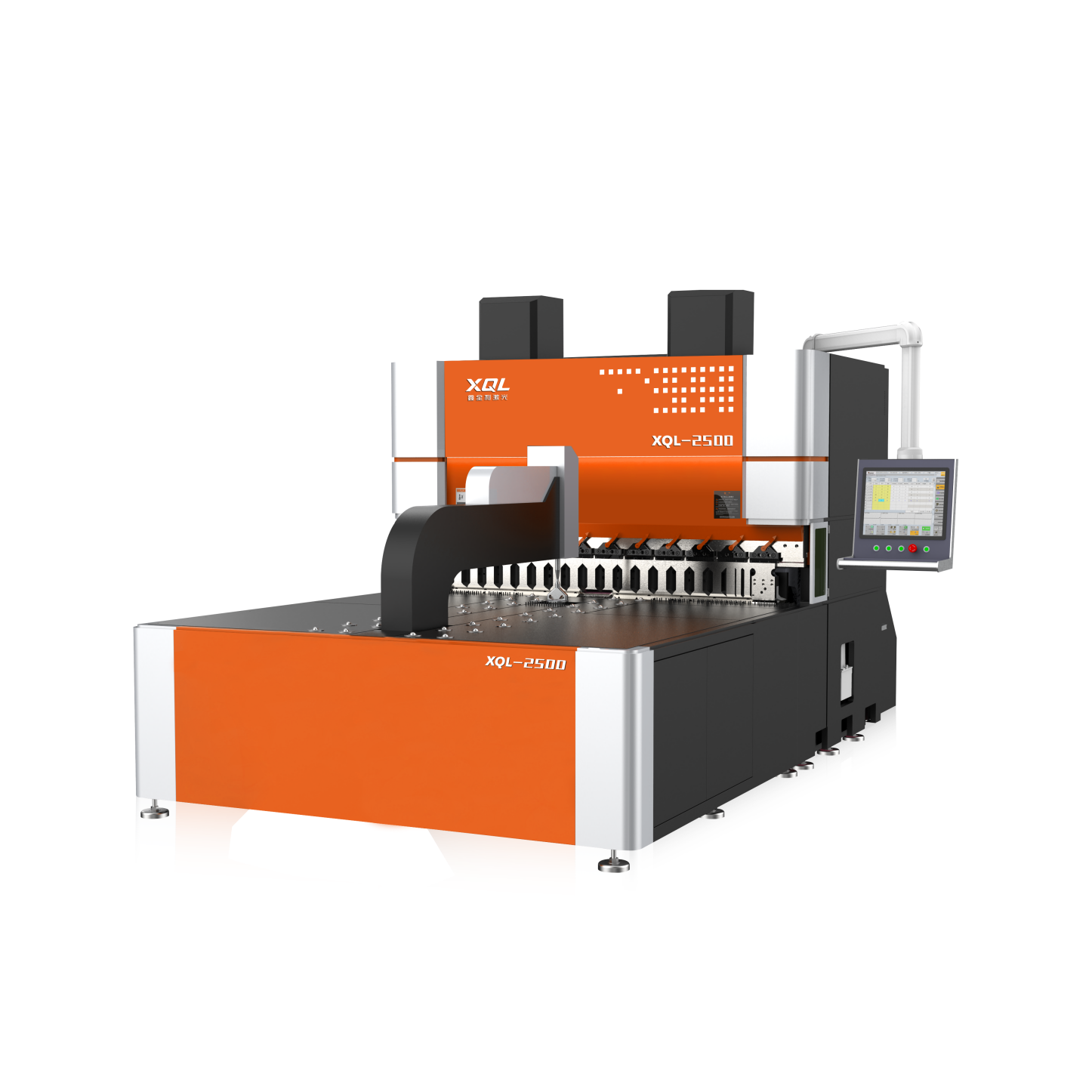

Front view of XQL-2500 sheet metal panel bender with 13-axis CNC system for precision forming of aluminum, carbon steel, and stainless steel

XQL 2500 Sheet Metal Panel Bending Machine

The XQL-2500 sheet metal panel bending machine is a flexible and intelligent panel bender, designed and produced to high-precision machine tool standards. Made of high-specification castings, all cast and welded parts undergo strict stress relief processing. High-precision machine tools ensure integrated processing, long-term accuracy, stability, and high rigidity during operation.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description:

XQL-2500 sheet metal panel bending machine is a flexible and intelligent panel bender designed and produced according to high-precision machine tool standards. It is made of high-specification castings, and both the cast and welded parts are subjected to strict stress relief processing. High-precision machine tools are used for integrated processing, ensuring long- term accuracy, stability, and high rigidity during operation.

Technical Parameter

Name	Parameter
Machine model	XQL-2500
Machine dimension	508028902950(mm)
Total weight	18000kg
Total power	47KW
Bending length	2500mm
Sheet length	2600mm
Sheet width	1250mm
Bending height	175mm
Total bending length	200mm
Minimum formed internal dimensions on all four sides	360*180mm
Double-sided minimum formed internal dimensions	180mm
Minimum radius of circle	1.2mm
Fastest continuous bending speed	0.5s/Knife
Distance between upper and lower knives	180mm
Bending angle	0-360°
CNC control system	Star300-LGx
Operating systems	Win7+OS
Number of axes	13 axis as standard
Maximum material thickness	Aluminum plate: 2.0mm
	Carbon steel: 1.5mm
	Stainless steel: 1.2mm

Bending Size Range
Minimum range of bending edge sizes for the AG series

Plate Thickness(mm)	0.3-0.6	0.7-1.0	1.1-1.2	1.3-1.5	1.6-2.0
Minimum Size(mm)	4	5	6	8	10

Tolerance Range for Bending Size and Angle in AG Series

Length(mm)	300-500	501-800	801-1000	1001-1200	1201-1500	1501-1800	1801-2000	2001-2500
Dimensional tolerance at both ends (mm)	±0.1	±0.1	±0.1	±0.1	±0.15	±0.25	±0.25	±0.25
Angular tolerance(°)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.75	±0.75	±0.75
Diagonal tolerance (mm)	±0.5	±0.5	±0.5	±0.5	±0.75	±0.75	±0.1	±0.1
