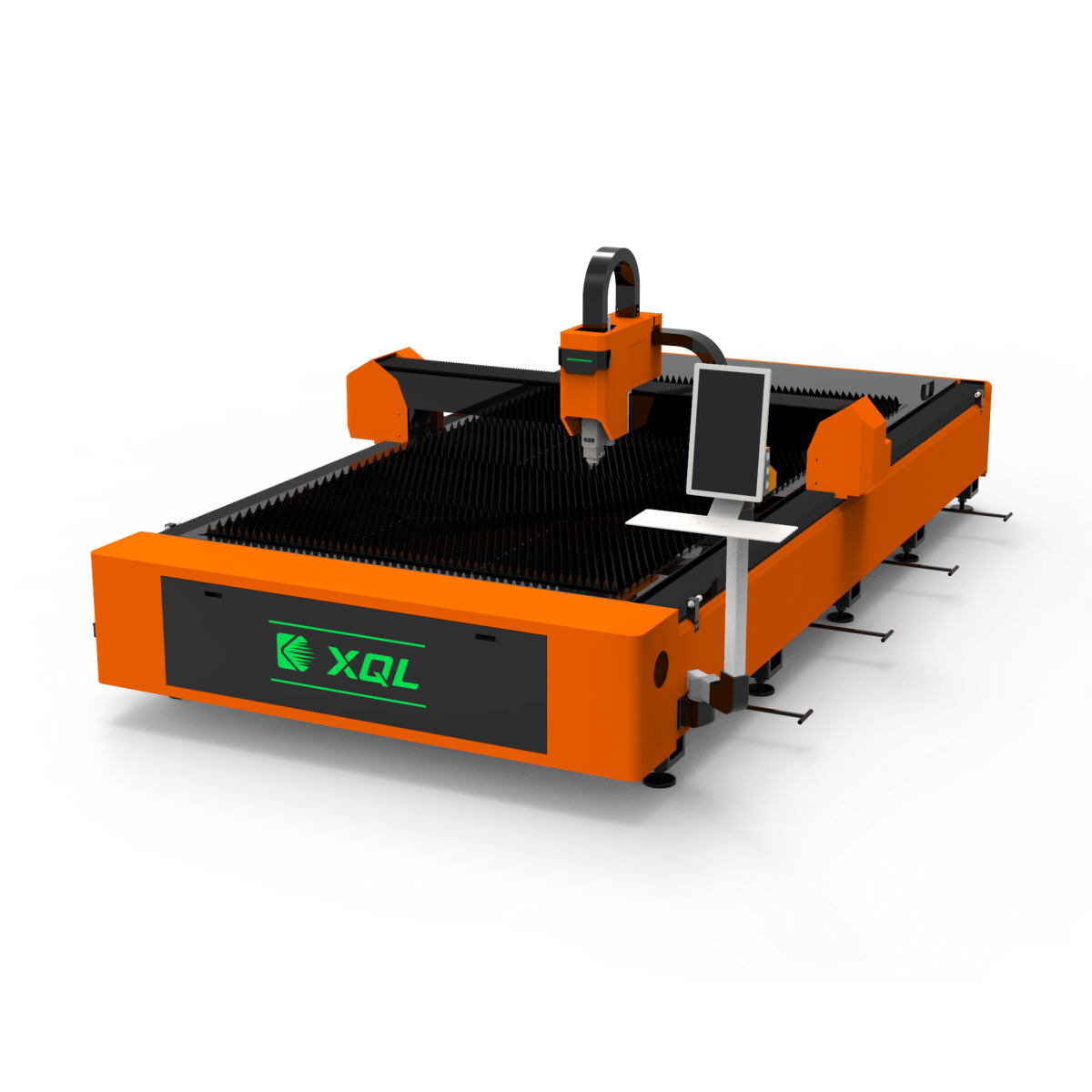

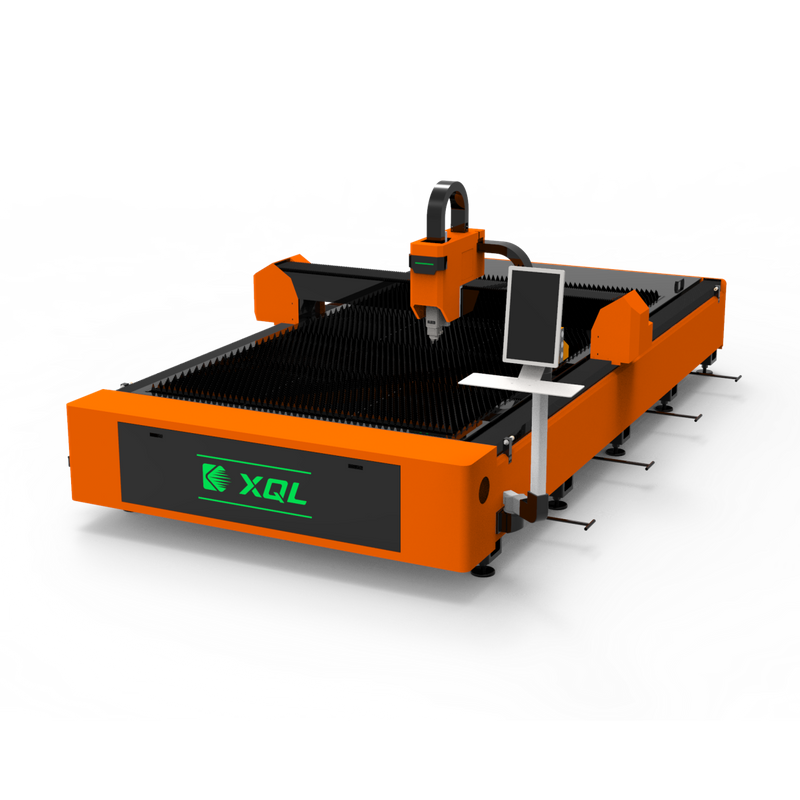

XQL X4020AE Industrial Fiber Laser Cutting Machine

The AE series fiber laser cutting machine features a high-strength bed structure, ensuring long-term stable and reliable operation. Its user-friendly integrated design offers a simple and elegant appearance with a compact structure, occupying minimal space. Equipped with an intelligent remote control, it allows for unlimited one-click control, making it convenient to operate.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage:

1. Compact integrated design, low space cost.

2. The bed is stable and durable, ensuring long equipment service life.

3. Equipped with an automatic focusing cutting head for intelligent and efficient cutting.

4. The fiber cutting machine consumes 20% - 30% of the power of a CO₂ laser cutting machine of the same power, using 0.5W to 1.5W of electricity per hour, and is very easy to maintain with no need to adjust the optical path.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	FSCUT	Shanghai
2	Programming software	1 set	FSCUT	Shanghai
3	Fiber-optic laser	3000-12000W	Raycus	Wuhan
4	Cutting head	1 pc	RayTools/Ospri	Optional
5	Machine bed	1 set	plate welding bed
6	Tool machinery platform and accessories	Cutting width 4000*2000mm		XQL Customization
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Gear and Rack	1 set	YYC	Taiwan
10	Guide rail	1 set	HIWIN	China
11	Chiller	1 set	Hanli	Wuhan

Technical Parameter

Name	Parameter
Machine Model	X4020AE
Power	3000W/6000W/12000W
Machining area (length * width)	4000*2000(mm)
X-axis stroke	2000(mm)
Y-axis stroke	4000(mm)
Z-axis stroke	140(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	110m/min
Protection rating of main power	IP54
Operating Voltage	AC220V/AC380V
Frequency	50Hz/60Hz
Equipment size	548027001800(mm)
Total weight	4500kg

Cutting Parameter

Material	Laser Power
Material	1000W	1500W	2000W	3000W	6000W	8000W	12000W	20000W
Carbon Steel	10	14	16	20	25	30	40	70
Stainless Steel	4	6	8	10	16	30	30	50
Aluminum	3	3	4	6	14	25	30	30
Brass	2	3	4	5	10	12	16	20
