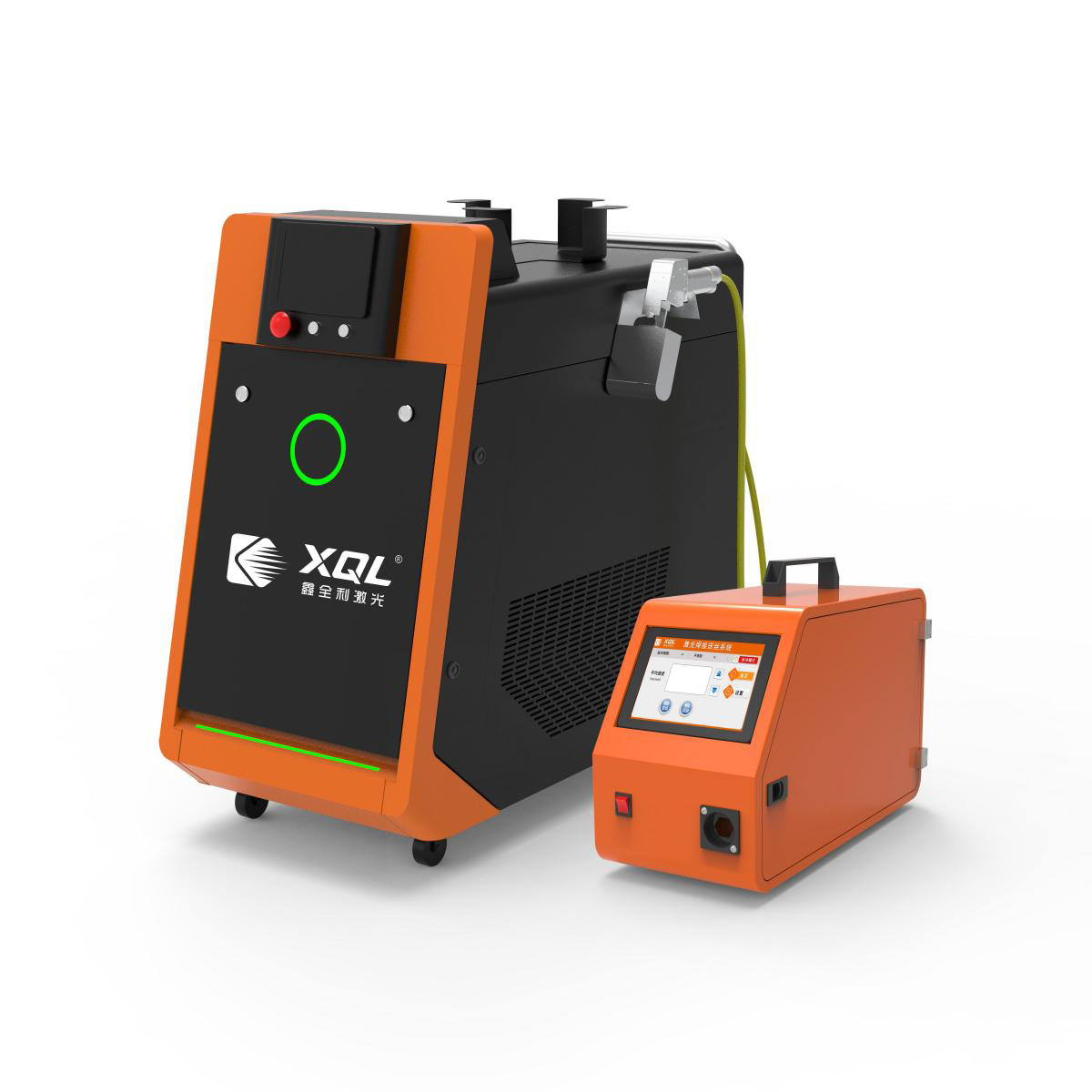

Front view of Model A handheld fiber laser welding machine for metal with integrated water-cooled system and compact industrial design for high-precision welding

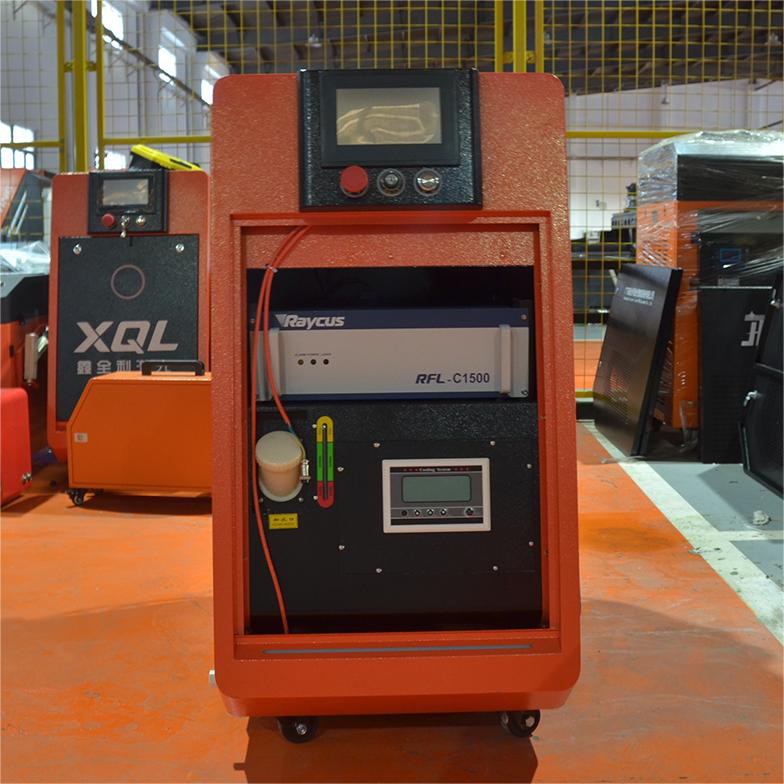

Full front perspective of water-cooled fiber laser welder showing control panel and welding gun setup for efficient metal fabrication applications

XQL Model A Water-Cooled Handheld Fiber Laser Welding Machine

Model A Water-Cooled Handheld Fiber Laser Welding Machine provides an integrated solution for welding, cutting, and cleaning, enabling seamless welding and reducing the need for subsequent grinding processes. It offers higher production efficiency, fast welding speed, simple operation, and convenient and efficient performance, making it suitable for processing and welding various types of metal products. It is applicable to the lighting industry, appliance industry, lithium battery industry, decoration industry, car manufacturers, etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage:

1. Efficiency increased by 2-10 times.

2. High-quality welding with smooth weld seams, no need for subsequent grinding.

3. Low cost, saving at least 2 welders.

4. 360 degree flexible movement welder with no experience can do a good job.

5. Welding mode with or without wire function as cutter for thin steel.

Product Configuration

No.	Name	quantity	Remark
1	Fiber laser	1 set	Raycus/XQL
2	Handheld welding head	1	CQWY
3	Optical fiber cable length	1	Raycus/XQL
4	Control system	1 set	CQWY
5	Electrical control	1 set	CQWY
6	Wire feeder	1 set	CQWY
7	Chiller	1 set	/
7	Chiller	1 set	XQL
8	Protective lens	5 pieces	/
9	Nozzles	1 set	/
10	Machine manual and accessories	1 set	/

Technical Parameter

Index	Parameter
Machine model	XQL-H1500A/2000A
Laser power	1500W/2000W
Power required	AC 220V/380V 50/60Hz
Physical dimension	14255501200(mm)
Weight	170kg
Cooling method	Water cooling
Cooling water temperature	5-45℃
Laser source	Fiber laser
Laser wavelength	1080±5nm
Adjusted spot range	0.1-5（mm）
Laser energy stability	<2%
Fiber optical length	Standard 10 meters, support 15 meters
Fiber core diameter	25/50(um)
Aiming and positioning	Red light positioning
Power adjustable range	10-100%
Work patterns	Continuous
Wobble frequency	0-300(Hz)
Air humidity	10-90%
Auxiliary gas	Argon/Nitrogen, Water-Free & Oil-Free air

Welding Parameter

Items	1500W	2000W
Stainless steel	3 mm	4 mm
Carbon steel	3 mm	4 mm
Aluminum	2 mm	3 mm
Brass	2mm	2.5 mm
Welding width	≤5 mm
Remark	Based on the actual welding effect test, this test data is for reference only.
