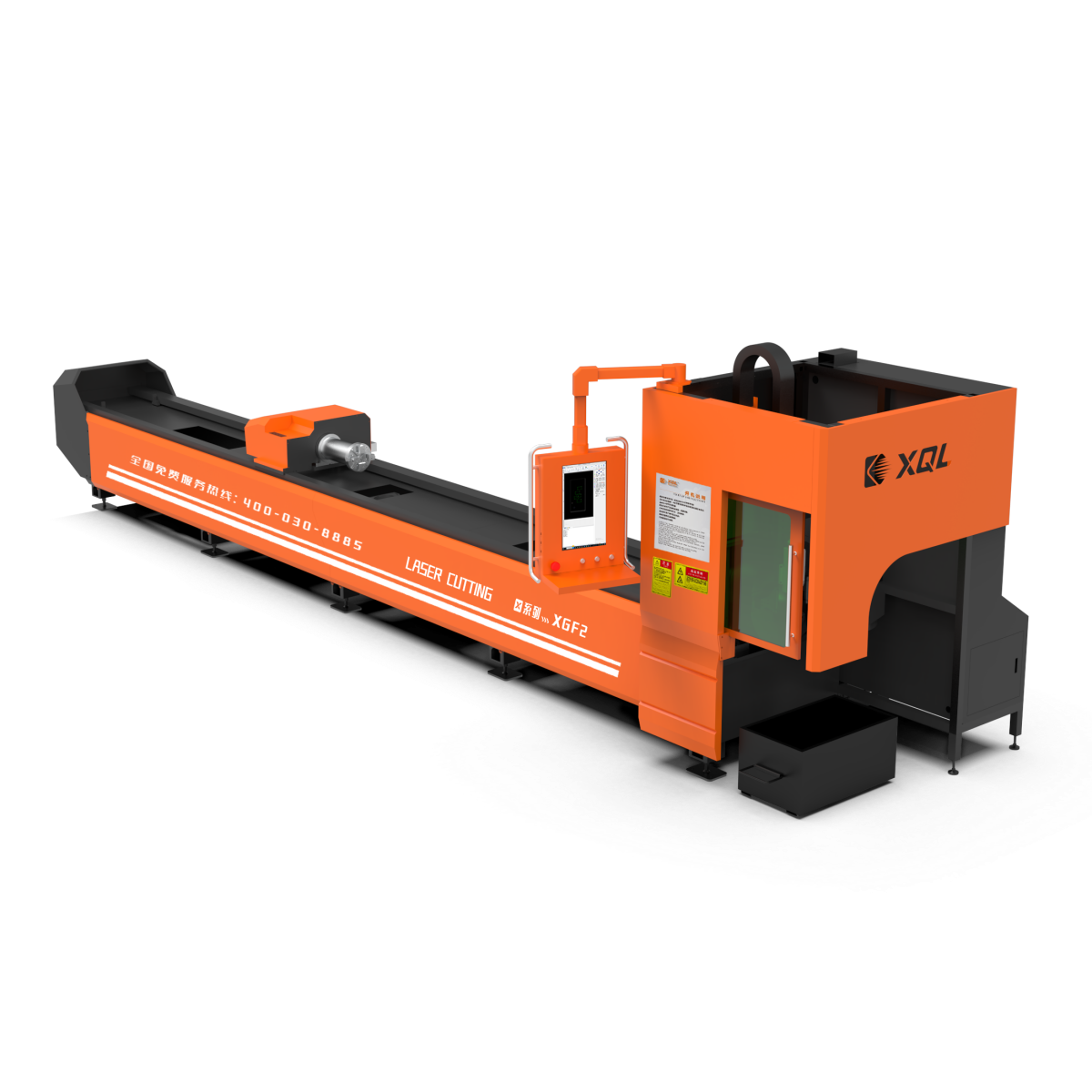

XQL XGF2 Pipe Fiber Laser Cutting Machine

The XGF2 series laser pipe cutting machine offers customizable loading and unloading. It supports arc, straight line, and runway cutting for various pipe shapes and angle steel. The laser head adjusts focus automatically for different thicknesses, ensuring fast perforation and cutting. It features an easy-to-use professional control system with high efficiency.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage：

1. Square pipes, round pipes, and special-shaped pipes are formed at one time.

2. A variety of clamping methods are coordinated to realize the cutting of short tails of pipes and improve the utilization rate of materials.

3. Large clamping force, high rotation speed, easy and stable clamping of overweight pipes.

4. The intelligent bracket can automatically support different types of pipelines, which solves the problem of deformation of long pipelines.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	FSCUT	Shanghai
2	Programming software	1 set	FSCUT	Shanghai
3	Fiber-optic laser	1500-3000W	Raycus	Wuhan
4	Cutting head	1 pc	RayTools/Ospri	Optional
5	Chuck	1 set	CANTINI	Anhui
6	Waste recovery unit	1 set	XQL Customization	China
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Cooling system	1 set	Hanli dual Temperature-controlled	Wuhan
10	Water chiller	1 set	XQL Customization	China
Optional
1	Nesting software	1 set	TubesT	Shanghai
2	Fixed loading and unloading recovery device	1 set	1m/2m/3m	China
3	Full automatic feeding	1 set	XQL Customization	China

Technical Parameter

Name	Parameter
Machine Model	XGF2
Power	1500W/2000W/3000W
Square pipe processing range	1515 -150150(mm) L 6m
Round pipe processing range	Φ120/Φ220/Φ350(mm) L 6m
Maximum weight of the cut pipe	320kg
X-axis stroke	250(mm)
Y-axis stroke	6100(mm)
Z-axis stroke	300(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	80m/min
Chuck form	Pneumatic
Chuck running speed	80r/min
Protection rating of main power	IP54
Operating Voltage	AC220V/AC380V 50Hz/60Hz
Frequency	50Hz/60Hz
Equipment size	85002001800(mm)
Total weight	2500kg
