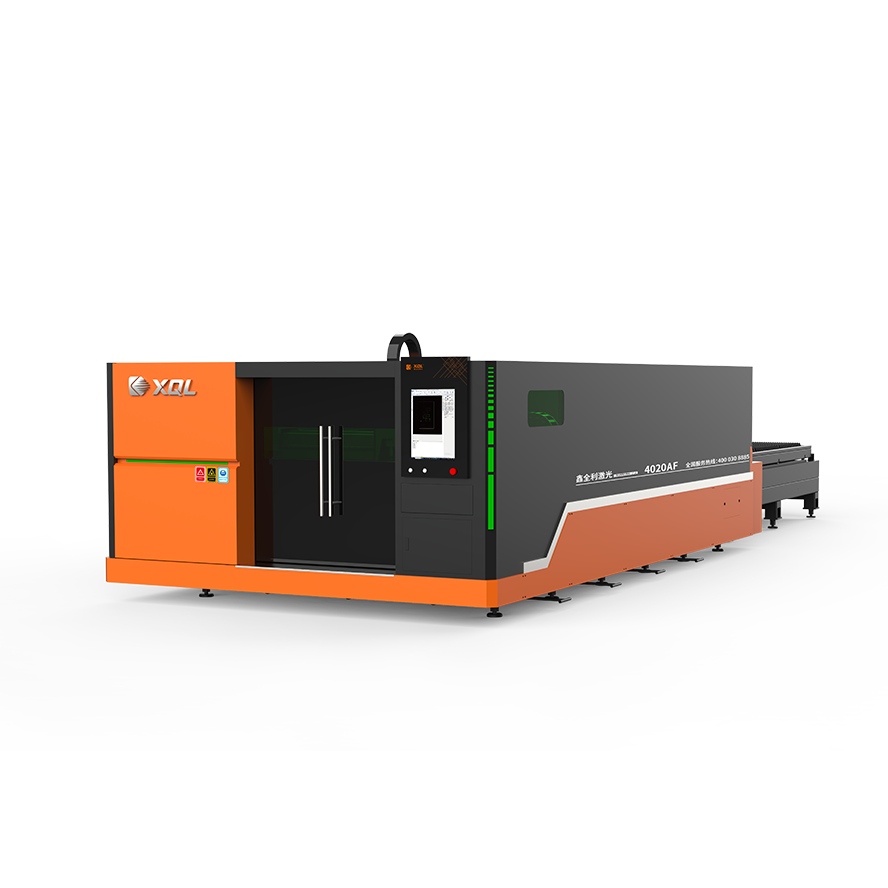

Front view of 4020AF 3kW fiber laser CNC cutting machine with fully enclosed design and intelligent autofocus laser head for industrial metal cutting

Close-up of high-precision fiber laser cutting head with autofocus function and smooth beam alignment for accurate metal sheet cutting

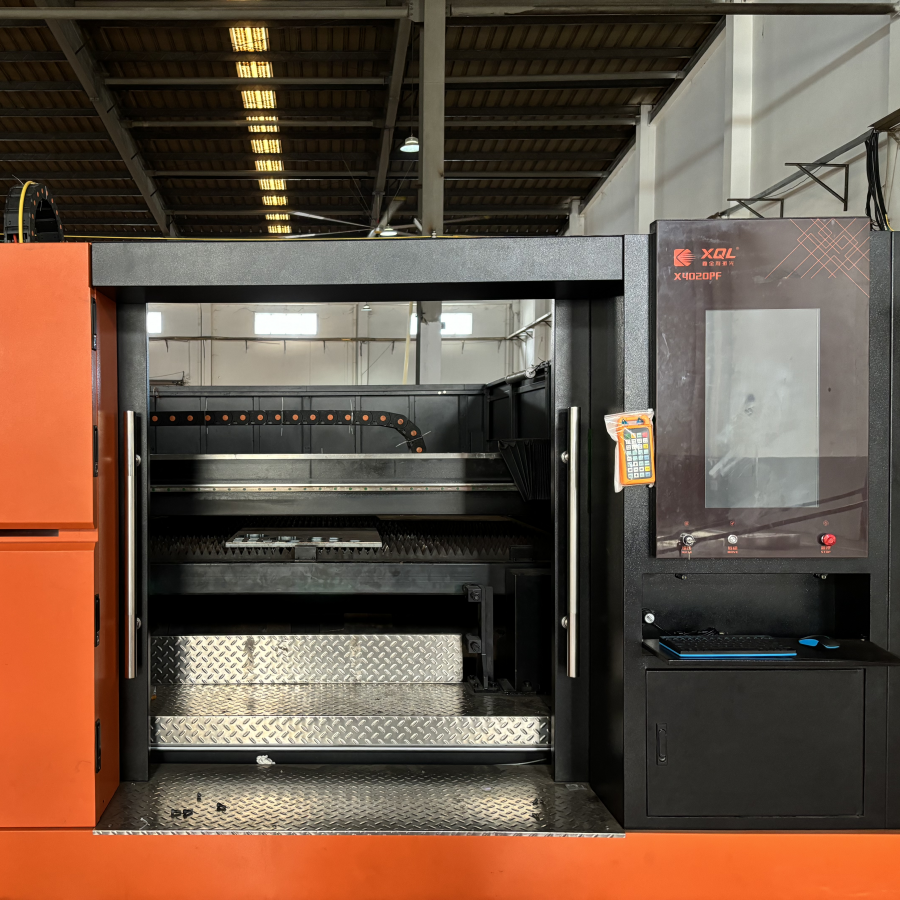

Full-enclosed protective structure of 4020AF fiber laser cutting machine with laser safety glass and stable bed design

XQL 4020AF Full-Closed Heavy Duty Fiber Laser Cutting Machine

4020AF full-closed heavy duty fiber laser cutting machine boasts a fully enclosed design with laser protective glass to minimize eye damage. It offers a professional laser cutting system and an intuitive human-computer interface, ensuring ease of operation and suitability for various processing needs. Additionally, it features an automatic cutting head capable of cutting, drawing lines, perforating, point marking, and more.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage：

1. The enclosed enveloping structure of the whole machine protects the machine in all directions.

2. The bed is stable and durable, the equipment is stable and the service life is long.

3. Equipped with autofocus cutting head, intelligently and efficiently cut any pattern.

4. The power consumption of a fiber cutting machine is 20% to 30% of that of a CO2 laser cutting machine of the same power. It consumes between 0.5 W and 1.5 W of electricity per hour, making it very easy to maintain: there is no need to adjust the optical path.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	FSCUT	Shanghai
2	Programming software	1 set	FSCUT	Shanghai
3	Fiber-optic laser	3000-12000W	Raycus	Wuhan
4	Cutting head	1 pcs	RayTools/Ospri	Option
5	Machine bed	1 set	Cama de soldadura de placas
6	Tool machinery platform and accessories	Cutting width 4000*2000mm		XQL Customization
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Chiller	1 set	Hanli	Wuhan

Technical Parameter

Name	Parameter
Machine Model	4020AF
Power	3000W/6000W/12000W
Machining area (length * width)	4000*2000(mm)
X-axis stroke	4000(mm)
Y-axis stroke	2000(mm)
Z-axis stroke	140(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	80m/min
Protection rating of main power	IP54
Operating Voltage	AC220V/AC380V
Frequency	50Hz/60Hz
Equipment size	1000035002200(mm)
Total weight	7500kg

Cutting Parameter

Material	Laser Power
Material	1000W	1500W	2000W	3000W	6000W	8000W	12000W	20000W
Carbon Steel	10	14	16	20	25	30	40	70
Stainless Steel	4	6	8	10	16	30	30	50
Aluminum	3	3	4	6	14	25	30	30
Brass	2	3	4	5	10	12	16	20
