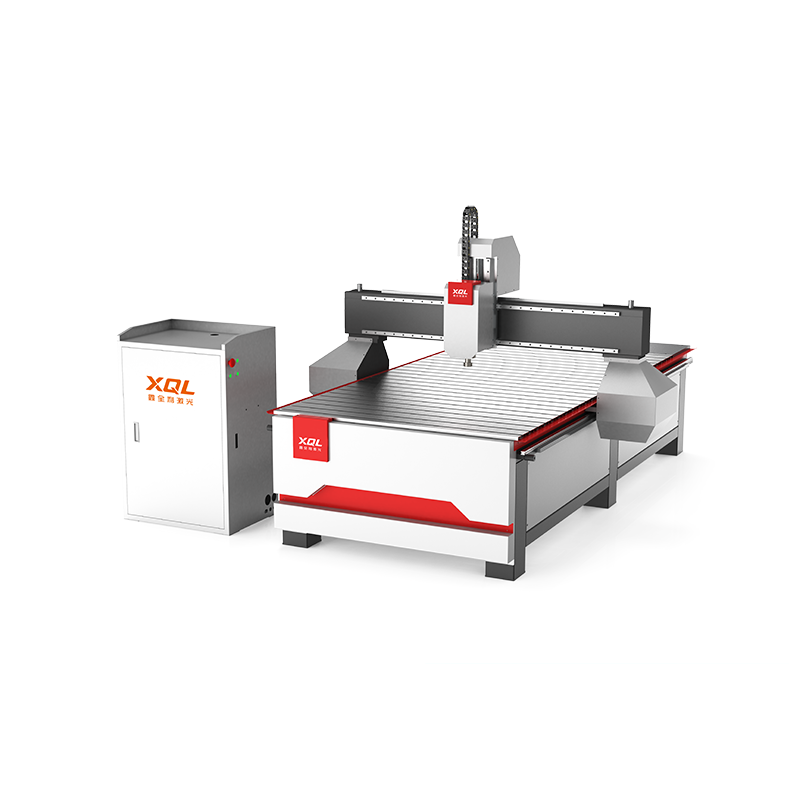

Front view of 3D CNC router and laser engraving machine for wood, metal, and plastic with multi-functional engraving, cutting, and milling capabilities

XQL CNC Router Engraving Machine

The CNC Router Engraving Machine is versatile and precise, designed for engraving and routing. Using CNC technology, it accurately carves, cuts, and engraves materials like wood, plastic, acrylic, aluminum, and more.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Application

1. Furniture processing industry, decoration industry, advertising products industry, board processing industry, wood art craft industry and so on.

2. It is also widely used in processing for single lines, milling, 3D embossing, cutting and engraving etc.

3. Engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.

Product Configuration

NO.	Name	Quantity	Specification/Brand	Remark
1	Control system	1 set	NC studio control system	FORSUN
2	Spindle	1 set	Water cooling	RH, China
3	Working table	1 set	PVC combine aluminum	Option:vacuum table with vacuum pump
4	Reducer	1 set	Shimpo	Japan
5	Gear and Rack	1 set	Herion	Germany
6	Guide rail	1 set	HIWIN	Shanghai
7	Ball screw	1 set	TBI	Taiwan, China
8	Servo Motors and Drives	1 set	Stepper motor and driver	Leadshine, China

Technical Parameter

Name	Parameter
Machine Model	CNC
Machining area (X,Y,Z axis)	13002500200(mm)
	Option:20003000200(mm)
Spindle power	3.7KW/5.5KW water cooling
Travelling positioning accuracy	±0.05mm/300mm
Travelling repositioning accuracy	±0.05mm
Max Rapid travel speed	20m/min
Max Working speed	10m/min
Spindle rotating speed	24000RPM
Limited stop	Extra-travel limit stop and hard limit stop
Operating Voltage	AC220V/380V 50Hz/60Hz
Machine size	350020002200(mm)
Net weight	1800kg
Cutting thickness
Acrylic	20mm
MDF	5mm
Wood	8mm
