Product Advantages:

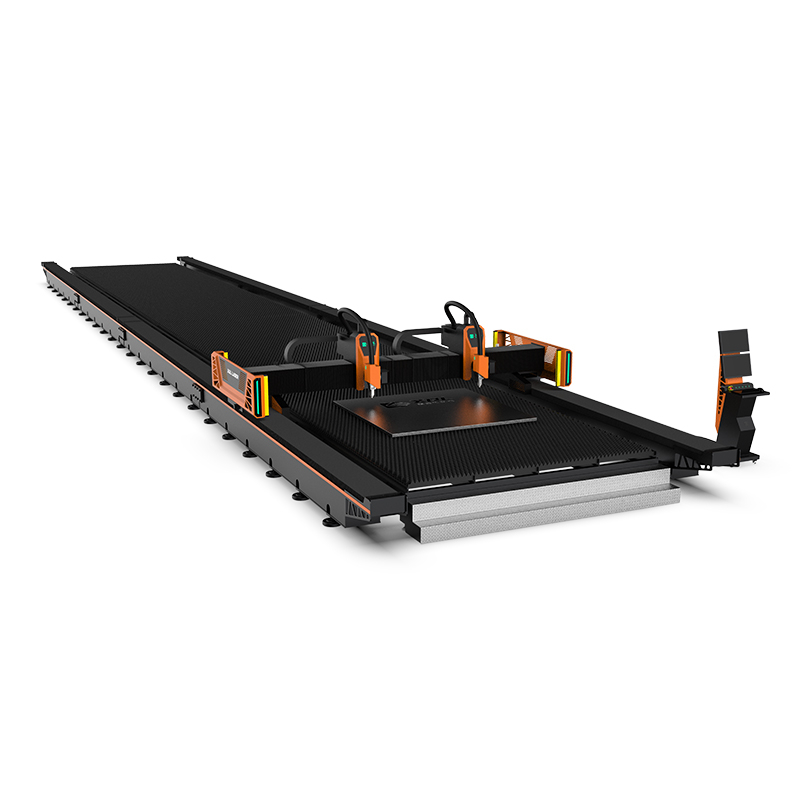

1. Multi-head optional: double cutting head synchronous cutting processing, production capacity can reach 2 times of conventional single-head laser cutting machine, suitable for mass continuous production of the same parts.
2. Segmented modular platform: a variety of formats are optional, supporting customization, cutting width 3.5m-5m (optional), cutting length 12m-30m (optional), which can meet the processing needs of super-large format plates.
3. The groove cutting effect is good: automatic bevelling function is added, cutting the groove at the same time, cutting molding, fast speed, high precision, saving time and process, less subsequent processing, and efficiency is increased by 50%~80%.
4. Environmental protection: The automatic smoke exhaust device collects dust during the operation of the cutting machine, and the dust generated by cutting will enter the dust removal equipment through the flue, and the dust will be purified and discharged to the standard.
5. Save materials: intelligent drawing identification, automatic judgment of drawing errors, efficient modification of wrong drawings; Support import DWG, DXF format drawings; Greatly reduce the typographer's time and reduce the error rate.
Detail presentation：
1.Large format cutting, whole plate processing
The sheet is formed in one piece, without splicing processing, improving the utilization rate of the sheet;
2.laser
The laser structure is more compact, ready to use, and has higher electrical and optical conversion efficiency, lower power consumption and better beam quality.
3.body
Welded steel plate, built-in reinforcement, 24 hours with the furnace cooling, three times large gantry milling, 600 degrees high temperature quenching, bridge structure, effectively reduce the impact of thermal deformation and thermal stress on the machine tool, to ensure that the machine tool high-speed operation without shaking and long-term high precision.
4.Cutting head
Automatic focusing laser cutting head, regular automatic detection, abnormal alarm display, alarm stop protection, and touch stop function, reduce the risk of collision; User-friendly operating system, easy to operate;
5.Intelligent control system
Intelligent bus system. With stable and reliable, easy deployment, easy debugging, production safety, rich functions, excellent performance and other characteristics; Support and provide modular, personalized, automation, information solutions.
Parameters:
| Power | 20000W-60000W |
| Cutting sheet format | 30000 × 3500 (mm) |
| Repeated positioning accuracy | ±0.05mm |
| Machine size | about 33 × 7 (m) |
| Acceleration | 0.6G |
