Product Advantage:
Powerful
1. A variety of tables and fixtures can be customized.
2. Realization of precision cutting of any metal material.
High quality-price ratio
1. Affordable price.
2. Stable performance, long service life, one year warranty, lifelong maintenance.
3. Continuous 24 hours of efficient operation, improve production efficiency, cost savings.
Quality cutter
1. Using advanced laser, high reliability
2. Consumable and maintenance-free.
3. Flexibility in the use of metallic and partially non-metallic materials.
User-friendly operation page
1. Computer configuration, mouse and keyboard operation are available.
2. Support for multi-language switching, easy to learn the operation.
3. Support text, patterns, graphics and other content.
Product Configuration
| NO. | Name | Quantity | Remark |
| 1 | Control system | 1 set | MAC laser control system |
| 2 | Laser generator | 1 pc | Optional 1000W-6000W |
| 3 | Cutting head | 1 pc | / |
| 4 | Machine bed | 1 set | A3 die |
| 5 | Gear and rack | 1 set | / |
| 6 | Guide rail | 1 set | / |
| 7 | Grating rulers | 1 pc | / |
| 8 | Servo motors and drives | 1 set | Linear motor |
| 9 | Sensor | 1 pc | / |
| 10 | Chiller | 1 pc | / |
Technical Parameter
| Name | Parameter |

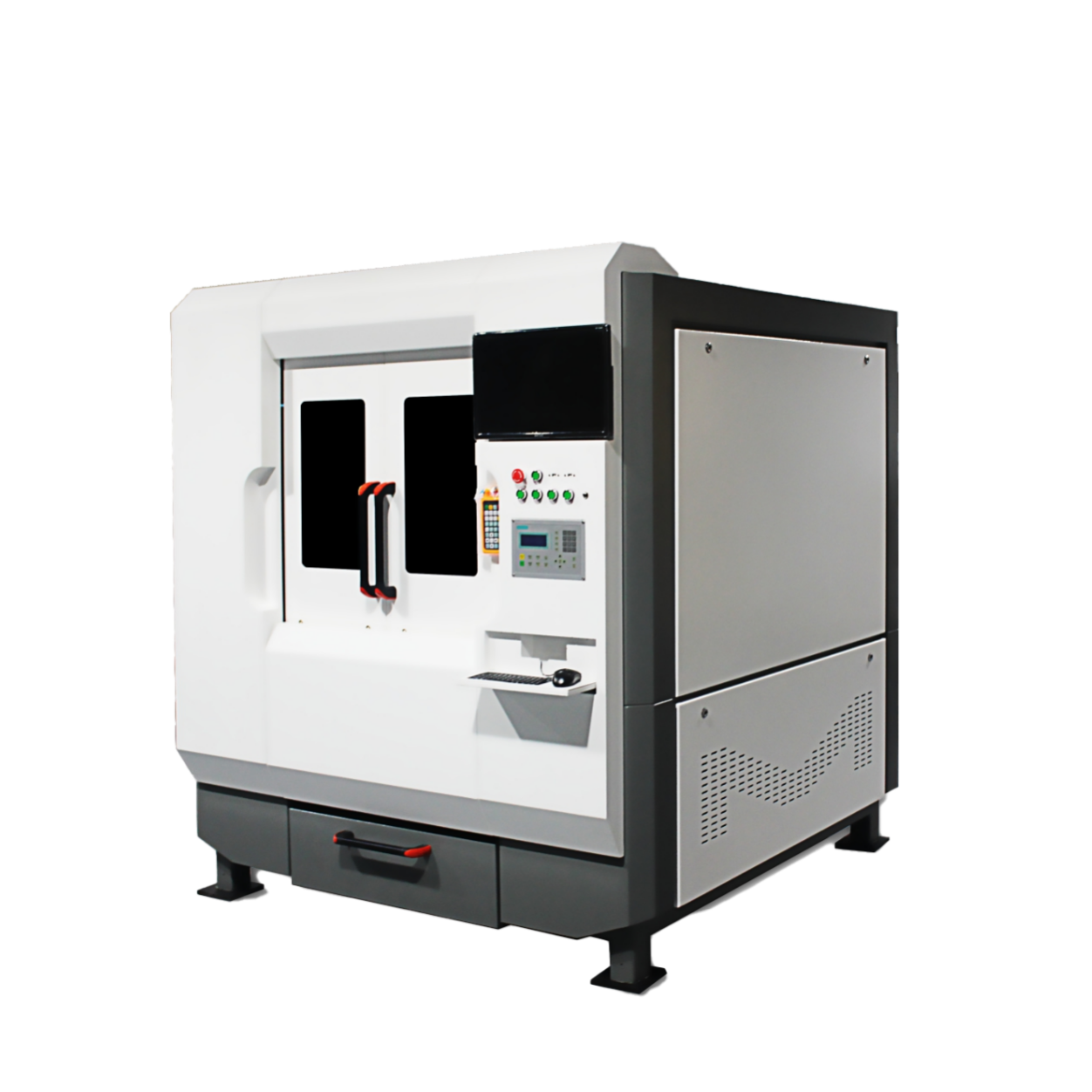

| Machine model | MCT-6060 |
| Laser power | 1000W-6000W |
| Machining area (length × width) | 600*600(mm) |
| Work patterns | Continuous |
| Cutting accuracy | ±0.03mm |
| Minimum hole size | 0.1mm |
| X-axis stroke | 600(mm) |
| Y-axis stroke | 600(mm) |
| Z-axis stroke | 100(mm) |
| Positioning accuracy | ±0.008mm |
| Max travel speed of X/Y axis | 50m/min |
| Max travel speed of Z axis | 500mm/s |
| CCD alignment accuracy | 10um |
| Cutting line width | 0.1mm |
| Cutting fluctuation | 1.2KW |
| Fixing method | Pneumatic edge clamping & fixture support |
| Drive system | Linear motor |
| Auxiliary gas | Oxygen/Nitrogen, Water-Free & Oil-Free air |
| Operating voltage | AC220V/380V 50Hz/60Hz |
| Equipment size | 1670*1482*1880(mm) |
| Net weight | 1700kg |
| Items | 1000W | 1500W | 2000W | 3000W | 6000W |
| Stainless steel | 4mm | 6mm | 8mm | 10mm | 10mm |
| Aluminum | 2mm | 3mm | 5mm | 6mm | 8mm |
| Brass | 1.5mm | 3mm | 5mm | 6mm | 8mm |
| Processed materials | Aluminum, brass, stainless steel, titanium metal materials |
| Remark | Based on testing using air cutting effects, this test data is for reference only. |
