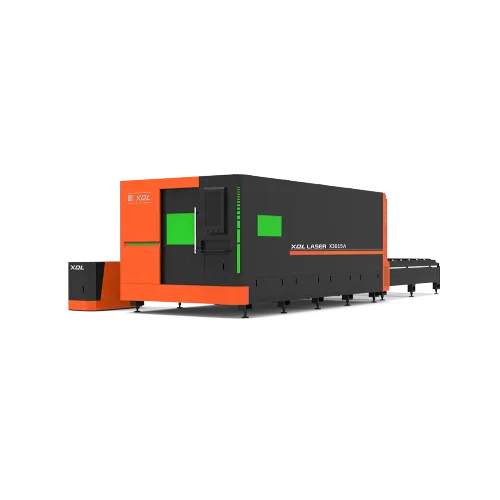

XQL X3015A Full-Closed Fiber Laser Cutting Machine

X3015A fiber laser cutting machine is a fully enclosed design, equipped with laser protective glass, which effectively reduces the damage to human eyes. Professional laser cutting system, human-computer interaction interface, simple and easy to operate, suitable for various processing occasions. Equipped with automatic cutting head, it can cut, draw lines, perforate, point mark and other processing methods.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage：

1. Fully enclosed design, effectively dust collection, reducing laser damage to the eyes.

2. The bed is stable and durable, the equipment is stable and the service life is long.

3. Equipped with automatic focusing cutting head, intelligent and efficient cutting.

4. The power consumption of the fiber cutting machine is 20%-30% that of a CO2 laser cutting machine of the same power. It consumes 0.5W to 1.5W of electricity per hour and is very easy to maintain, requiring no adjustment of the optical path.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	FSCUT	Shanghai
2	Programming software	1 set	FSCUT	Shanghai
3	Fiber-optic laser	1500-3000W	Raycus	Wuhan
4	Cutting head	1 pcs	RayTools/Ospri	Option
5	Machine bed	1 set	A3 die
6	Tool machinery platform and accessories	Cutting width 3000*1500mm		XQL Customization
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Chiller	1 set	Hanli	Wuhan

Technical Parameter

Name	Parameter
Machine Model	X3015A
Power	1500W/2000W/3000W/6000W
Machining area (length * width)	3000*1500(mm)
X-axis stroke	3050(mm)
Y-axis stroke	1550(mm)
Z-axis stroke	150(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	80m/min
Protection rating of main power	IP54
Operating Voltage	AC220V/AC380V
Frequency	50Hz/60Hz
Equipment size	820028002200(mm)
Total weight	3500kg

Cutting Parameter

Material	Laser Power
Material	1000W	1500W	2000W	3000W	6000W	8000W	12000W	20000W
Carbon Steel	10	14	16	20	25	30	40	70
Stainless Steel	4	6	8	10	16	30	30	50
Aluminum	3	3	4	6	14	25	30	30
Brass	2	3	4	5	10	12	16	20
