Front view of XQL-CSH portable YAG pulse laser welding machine showing touchscreen interface and compact dual-mode design for precision metal welding

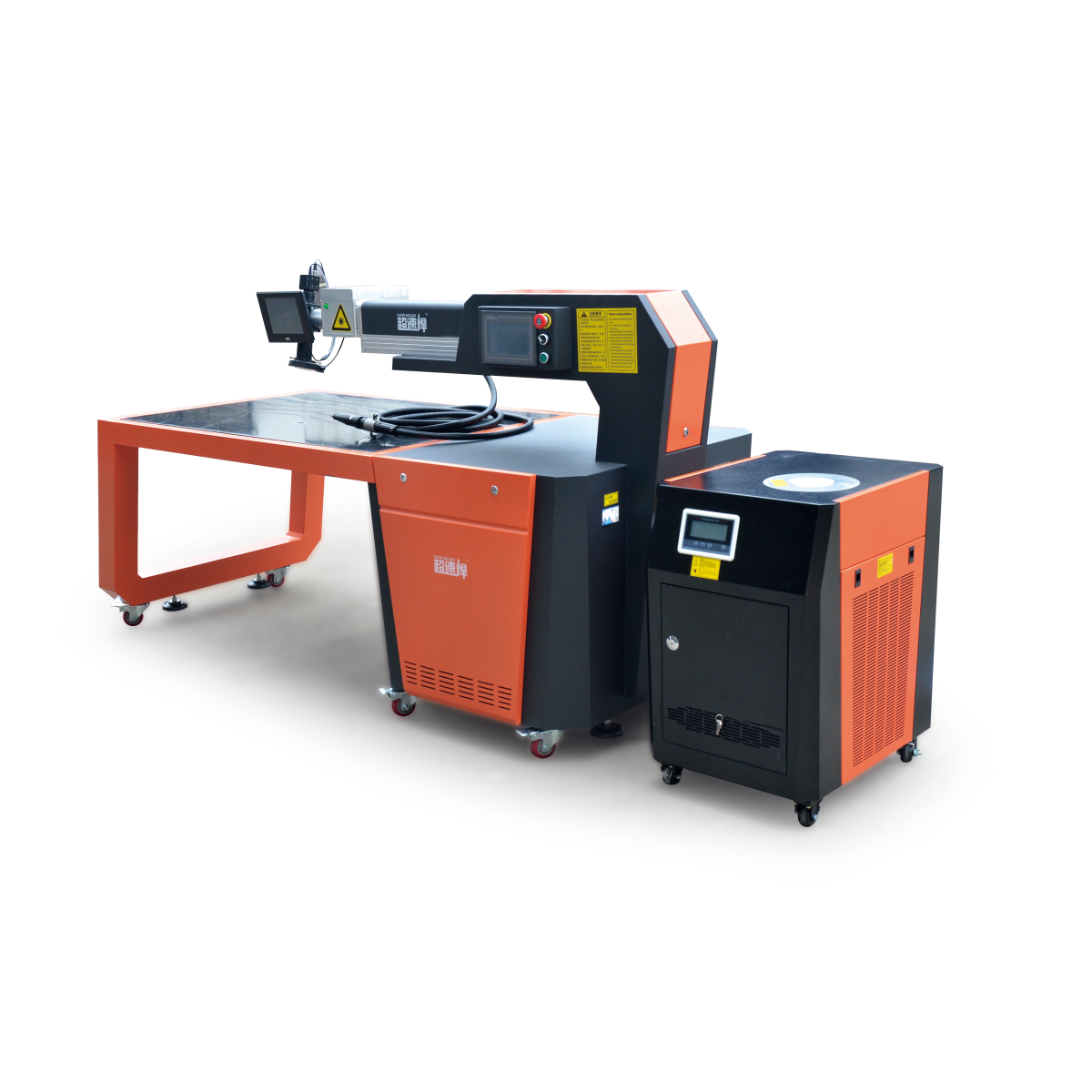

Full front image of YAG pulse welding machine with handheld welding head and CCD monitoring system for fine stainless steel and LED letter fabrication

XQL CSH YAG Pulse Welding Machine

XQL-CSH YAG welding machine features a handheld and fixed dual-mode capability, allowing for a 360°rotation. Welding energy is transmitted through optical fibers with no loss, resulting in fine spot and aesthetically pleasing welding effects without the need for polishing. Optional CCD monitoring ensures clearer welding effect, avoiding the production of defective products.Paired with a touchscreen, the operation is simple and easy to learn. It is suitable for welding and forming various types of metal signs and LED metal letter shells, including fine letters, precision letters, mirror letters, brushed steel letters, and galvanized letters.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage:

1. High efficiency with no loss of energy transmission, resulting in a fine spot and beautiful welding effect.

2. High quality with a smooth welding seam that requires no subsequent grinding.

3. As low as 2 kW per hour, ensuring cost-effectiveness.

4. A 360-degree flexible movement welder capable of soldering small and complex fonts and logos.

5. Intelligent operation with a touchscreen interface enabling 24-hour uninterrupted work.

Product Configuration

No.	Name	quantity
1	Fiber laser	1 set
2	Fixed head	1 set
3	Manual head	1 set
4	Fiber length	1 set
5	Laser beams	1 set
6	Red light indication system	1 set
7	Cooling system	1 set
8	Monitoring system	1 set
9	Welding worktable	1 set

Technical Parameter

Index	Parameter
Machine model	XQL-CSH300G/500G
Laser source	YAG source (Xenon lamp)
Laser power	300W/500W
Power required	AC 220V/380V 50Hz/60Hz
Physical dimension	2500*1500(mm)
Net weight	370kg
Max letter size	Within 1.5 meter
Overall power	9KW/18KW
Laser wavelength	1064um
Welding Spot size	0.1-2.0（mm）
Welding penetration	0.1-1.2（mm）
Cooling method	1P/3P Water cooling
Modulation frequency	1-50(Hz) (normally less than 40Hz)
Modulation pulse width	0.1-10ms
Working temperature	0-40℃
Aiming and positioning	Red light positioning(CCD camera)
Output weld head type	Manual/Fixed

Welding Parameter

items	300W	500W
Stainless steel	2mm	3mm
Galvanized sheet	2mm	3mm
Steel plate	2mm	2.5mm
Remark	Based on the actual welding effect test, this test data is for reference only.
